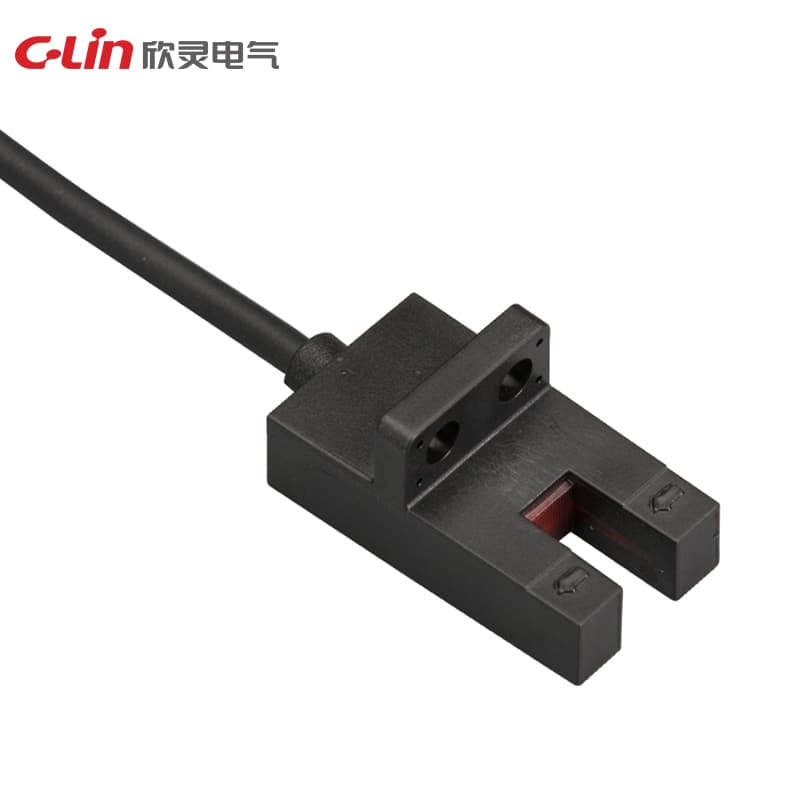

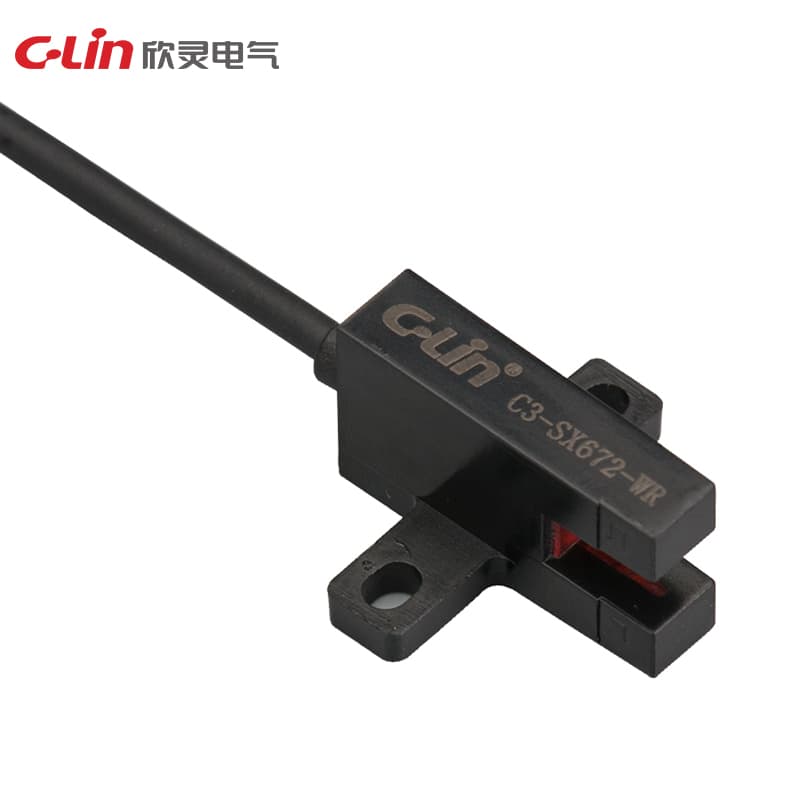

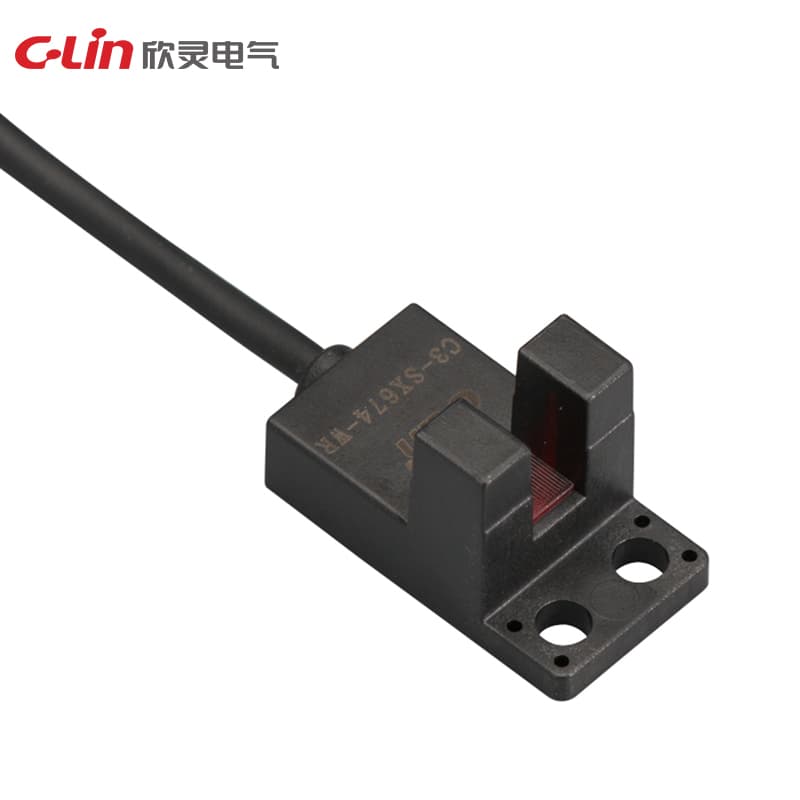

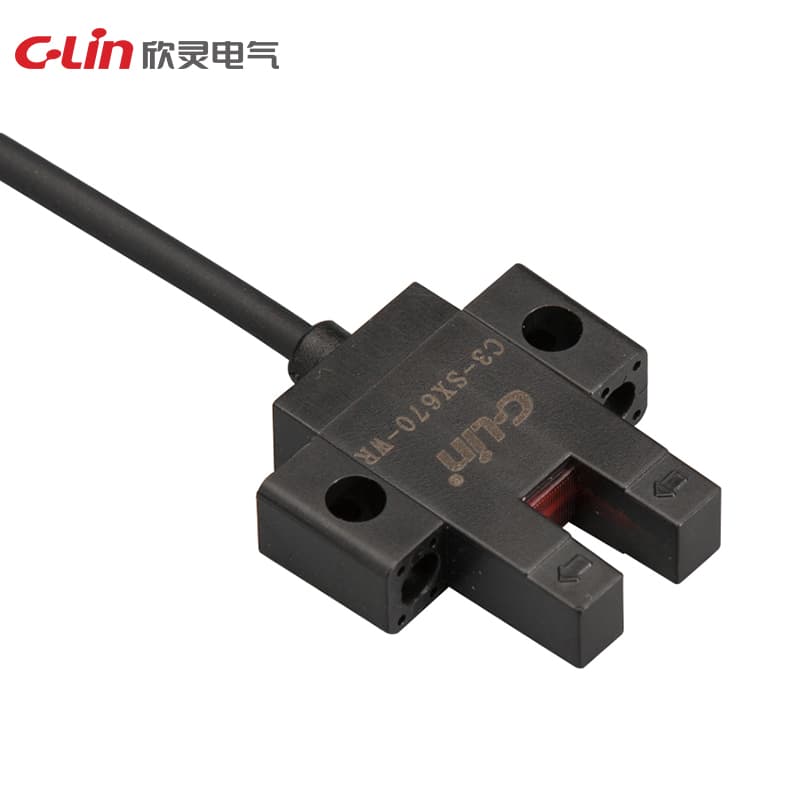

Photoelectric Sensor C3-SX67 Series

Name: Photoelectric Sensor C3-SX67 Series
Brand: C-Lin
SKU: C3-SX67

Model Number: C3-SX67

Output form: slot type Output form: white wire connected to brown wire, black wire output normally closed. White wire connected to blue wire, black wire output normally open. Detection distance: 5mm

Request Quote

Technical Specifications

DC	NPN
PNP	NO/NC
Indicator	Red action indicator
Working power	DC5~24V
Protection level	IP67
Residual Voltage	≤ 1V (at 50mA load current)
Operating Current	Load current ≤ 100mA; Static current: ≤ 25mA
Temperature range	Operating: -25 to +70°C (no icing or condensation); Storage: -30 to +80°C (no icing or condensation)
Protection circuit	Polarity, overload protection
