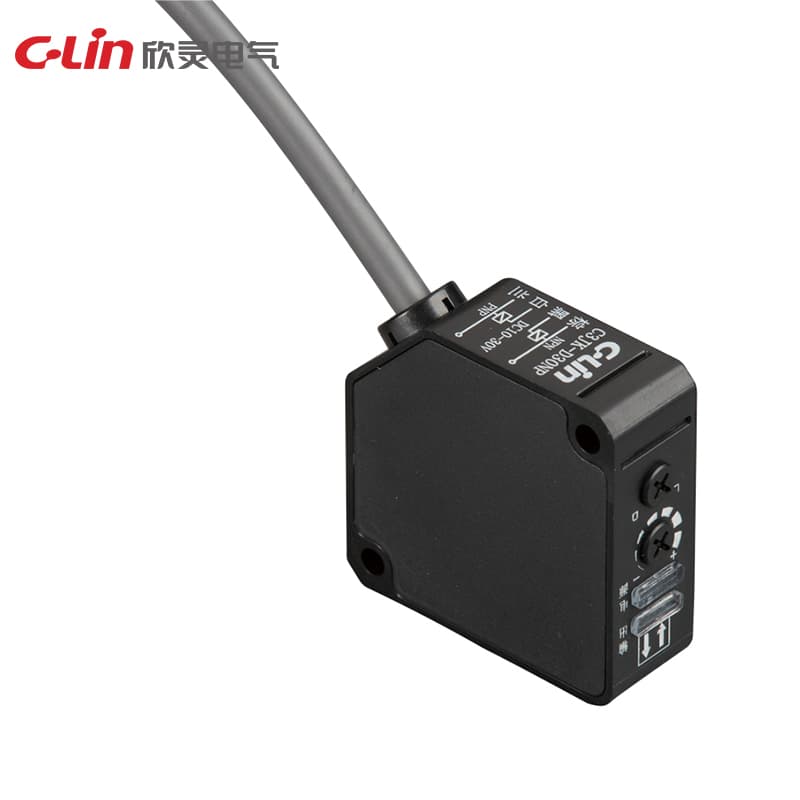

Photoelectric Sensor C3JK Series
C-Lin

Photoelectric Sensor C3JK Series

Model Number: C3JK

Request Quote

Technical Specifications

SpecificationDiffuse reflective
Working powerDC NPN+PNP output type: DC10-30V; AC/DC universal type: AC/DC24-240V
Control outputDC NPN+PNP output type load current ≤ 150mA; Relay output contact 3A resistive
Detectable objectsReflecting object
Detection distance30cm
Standard test objects10×10cm white non-glossy paper
DC NPN+PNP output typeC3JK-D30NP
Sensitivity adjustmentPotentiometer Adjustment
AC/DC through-use relay output typeC3JK-D30M
