C-Lin

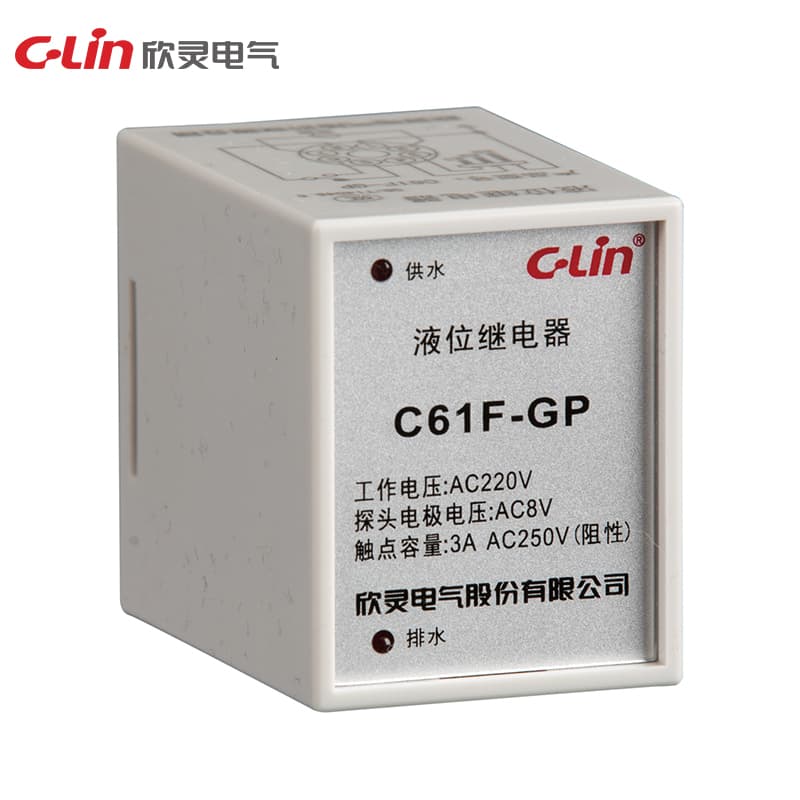

Liquid Level Relay C61F Series

Name: Liquid Level Relay C61F Series
Brand: C-Lin
SKU: C61F-GP

Model Number: C61F-GP

Working power supply: AC220V, AC380V Working mode: water supply and drainage Water control distance: ≤ 100 meters Contact form: a set of normally open and normally closed contacts Contact capacity: 3A AC250V (resistive) Dimensions: 40×55×79mm Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail

Request Quote

Technical Specifications

Ui	380V
Ith	3A
Uimp	4KV
Ue/Ie	Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Dimensions	40×55×79mm
Contact form	a set of normally open and normally closed contacts
Installation	Unit, panel and 35mm rail mounting with different sockets and accessories
Working mode	Water Supply and Drainage
Specification	C61F-GP
Working Power	AC380V, 220V, 110V, 36V, 24V50Hz: DC24V, the allowable voltage fluctuation range is (85%~110%) Ue.
Contact capacity	3A AC250V (resistive)
Water control distance	≤ 100 metres
