C-Lin

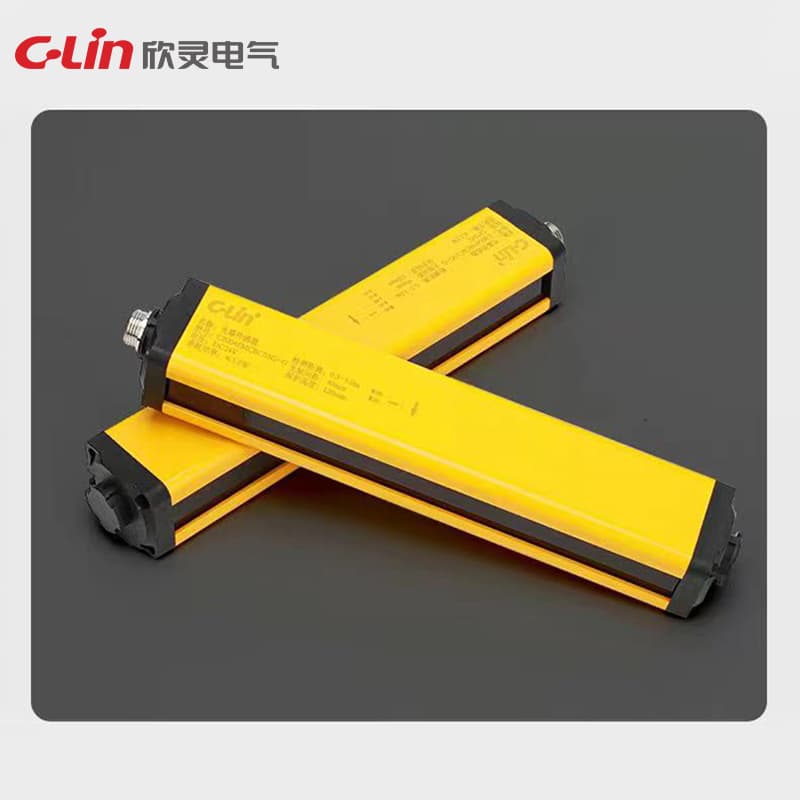

Light Curtain Sensors C8 Series
Model Number: C8
Optical axis spacing: 20mm Detection distance: 0.1-5m Light curtain type: through-beam type Exterior material: aluminum alloy Interface size: 30mm×30mm Signal output: NPN/PNP/relay Synchronization type: line synchronization/optical synchronization (optional) Light curtain type: through-beam type Exterior material: aluminum alloy
Request QuoteTechnical Specifications
| Material | Aluminium alloy, top and bottom cover: reinforced nylon |
| Reset time | Output reset time＜ 200ms |
| EMC Standard | ESD：8KVAirchage(level3)/EN-61000-4-2;Burettest:2KV/EN61000-4-4 RF Interferenoe:10V/M/ENV50140 |
| Installation | Slotted installation |
| Response time | 10 ～ 34ms max |
| Signal output | NPN/PNP/Relay |
| Specification | C8004CNC(NO/PC/PO)BC05G |
| Humidity range | Operating, storage: 25 to 85% (no condensation) |
| Interface Size | 30mm*30mm |
| Supply voltage | 24±10%VDC；Rippl（continuous wave）±20% P-P max |

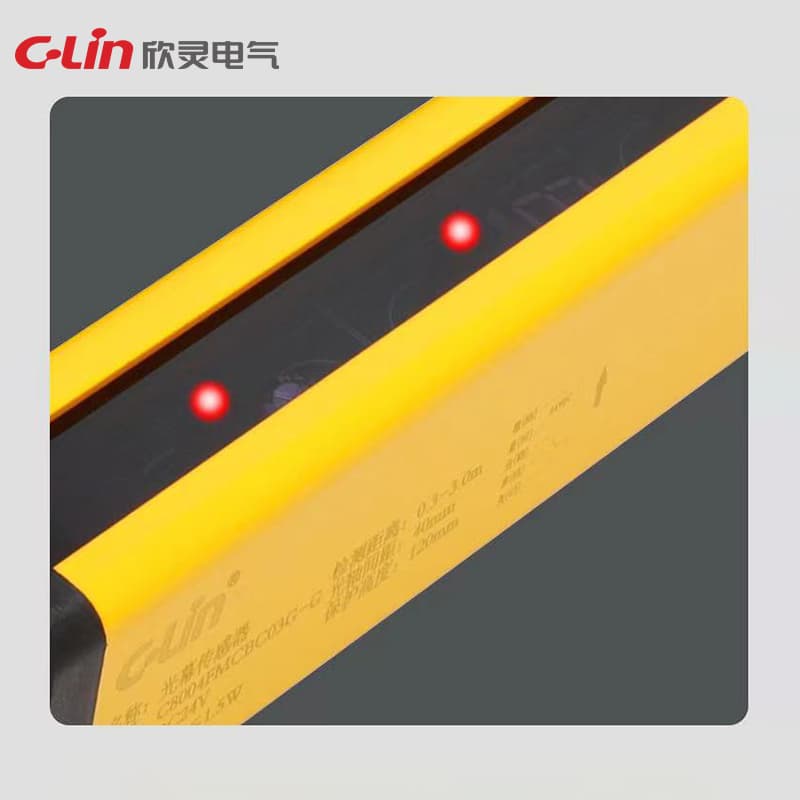

| Indicator light | Digital tube indicator |
| Residual voltage | ≤1V |

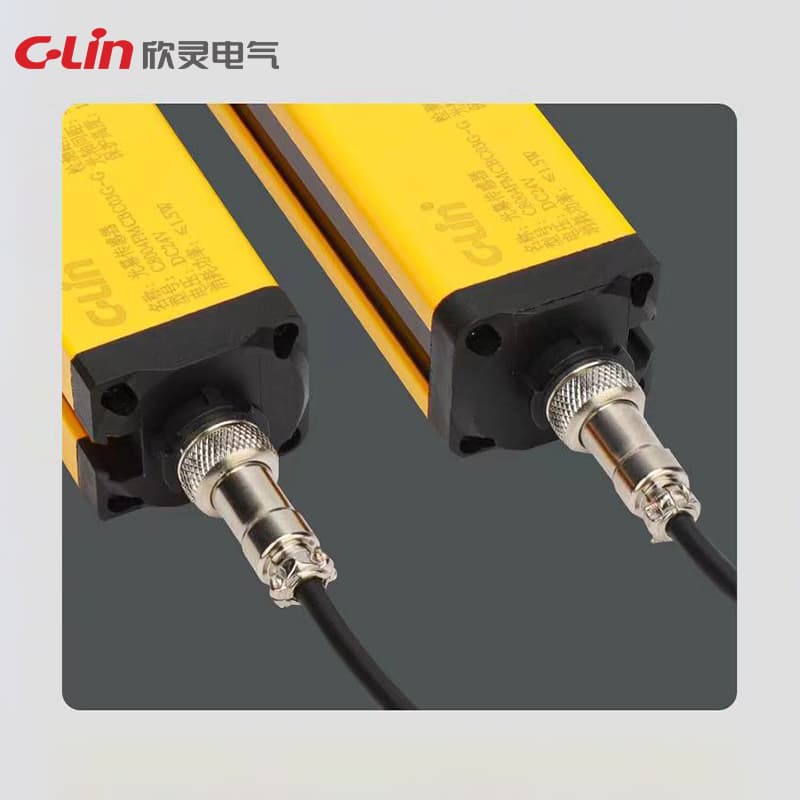

| Connection Method | Cable Inserts |

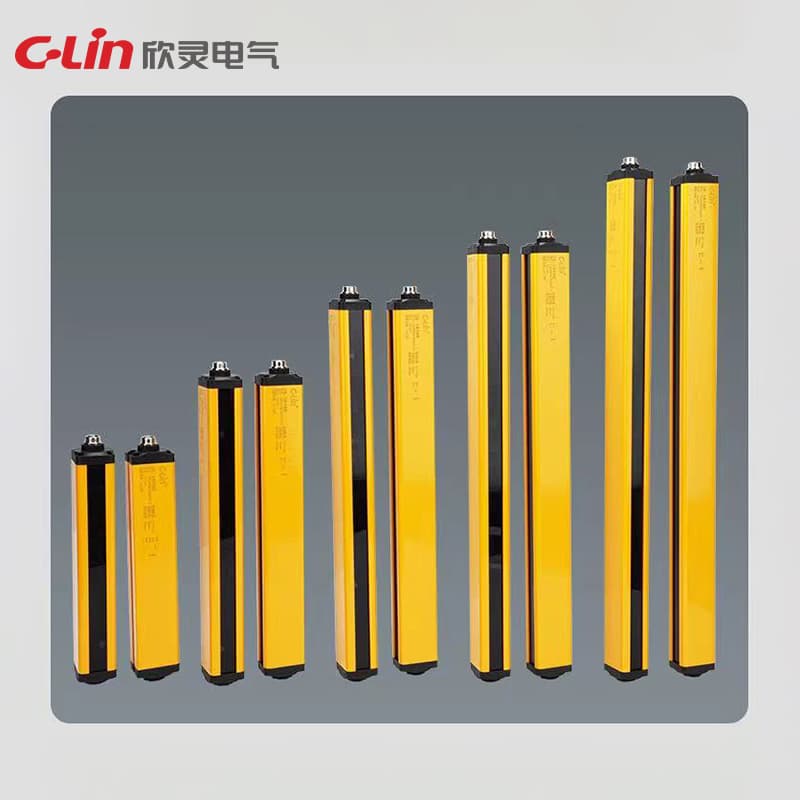

| Protective height | 70mm-2994mm |
| Temperature range | Operating: -5 to +55°C (no icing, condensation); Storage: -30 to +80°C (no icing, condensation) |
| Detection distance | 0.1 ～ 5m |
| Protection circuit | Polarity protection and instantaneous reverse polarity protection |
| Ambient illuminance | Incandescent: Spot intensity under 3,000Lx; Sunlight: Spot intensity: under 10,000Lx ( Angle of incidence ≥ 5° ) |
| Current consumption | 30mA |
| Optical axis spacing | 20mm |
| Number of optical axes | 4 |
| Sensitivity adjustment | Non-adjustable |
