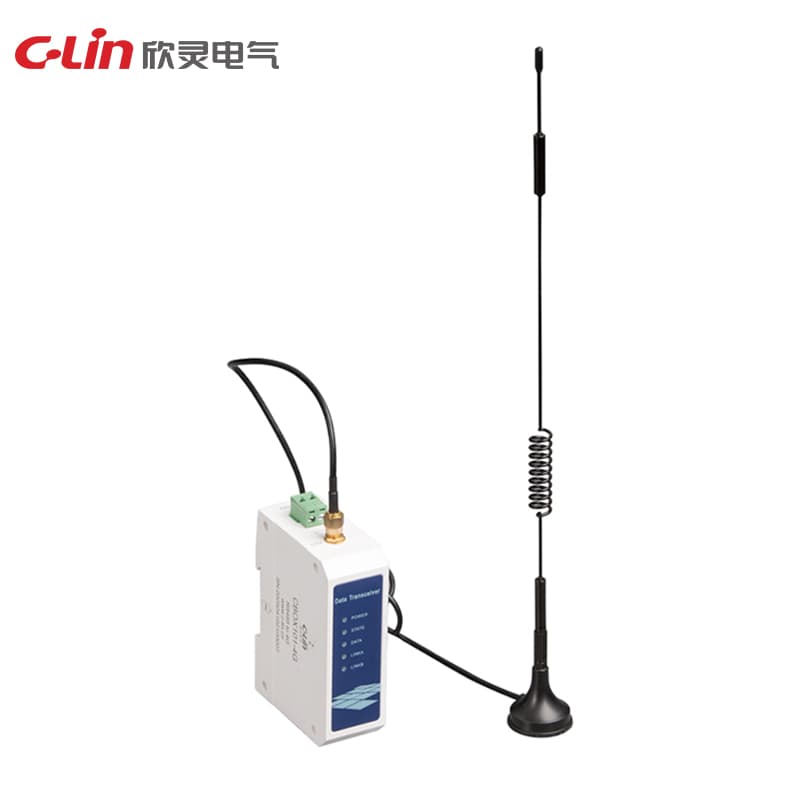

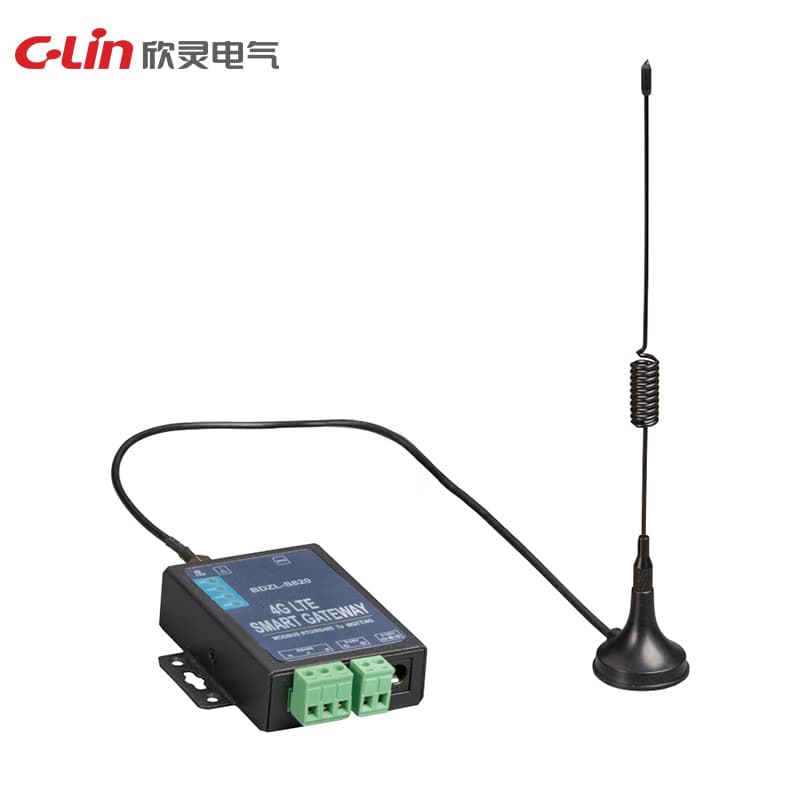

Gateway CBOX Series
Model Number: CBOX
Power supply: DC24V Supported frequency bands: LTE-TDD: Maximum downlink rate 7.5Mbps Maximum uplink rate 1Mbpd LTE-FDD: Maximum downlink rate 10Mbps Maximum uplink rate 5Mbpd LTIE: LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B3/B5/B8 Transmit power: Class3(23dBm±2dB) for LTE TDD bands Class3(23dBm±2dB) for LTE FDD bands Network protocol: Support TCP/UDP/MQTT protocol RF interface: SMA-K (external thread inner hole) Baud rate: Maximum support 460800, default 115200bps Data interface: RS232/RS485 Dimensions: CB
Request QuoteTechnical Specifications
| Baud | Maximum support 460800, default 115200bps |
| Firing power | Class3(23dBm±2dB) for LTE TDD bands Class3(23dBm±2dB) for LTE FDD bands |
| RF interface | SMA-K (Male Bore) |
| Working Power | DC24V |
| Speicification | CBOX100-4G |
| Network protocol | Support for TCP/UDP/MQTT protocols |
| Overall dimensions | CBOX1: 30×110×66mm CBOX2: 75.3×90.7×21mm |
| Ambient temperature | -30℃～ +75℃ |
| LTIE Characteristics | LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B3/B5/B8 |
| Supported Frequency Bands | LTE-TDD: Maximum downlink rate 7.5Mbps |
