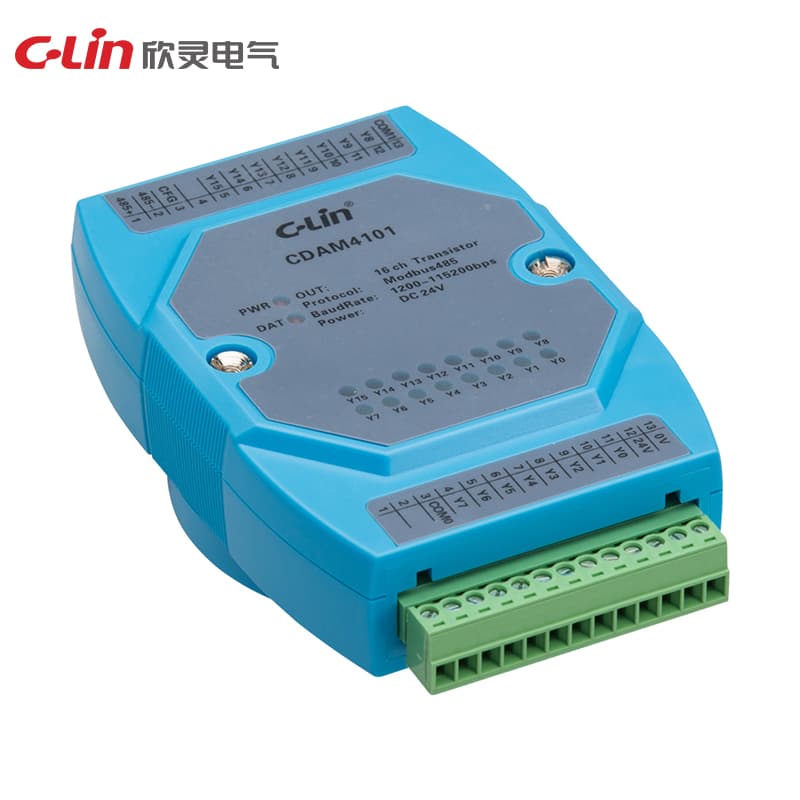

Remote I/O Module CDAM4100 Series

Name: Remote I/O Module CDAM4100 Series
Brand: C-Lin
SKU: CDAM4100

Model Number: CDAM4100

Working power supply: DC24V Input mode: switch quantity (optional), analog quantity (optional) Output mode: relay (optional), transistor (optional) Communication interface: photoelectric isolation, RS485 Communication protocol: Modbus-RTU, support 8 data bits, 1 stop bit, no/odd/even check three communication data formats configurable Communication baud rate: 1200bps~115200bps Power consumption: <2000mW Dimensions: 103×72×34.5mm Installation method: guide rail type Ambient temperature: -20℃～+50℃

Request Quote

Technical Specifications

Dimentions	103×72×34.5mm
Installation	Rail Mounted
Working Power	DC24V
Speicification	CDAM4101, 16 transistor outputs, RS485 communication interface, ModbusRTU protocol, baud rate 1200bps-115200bps
Power consumption	<2000mW
Temperature range	-20ºC~+50ºC
Communication protocols	Modbus-RTU, supports 8 data bits, 1 stop bit, no/odd/even checksum three communication data formats can be configured.
