Technical Specifications

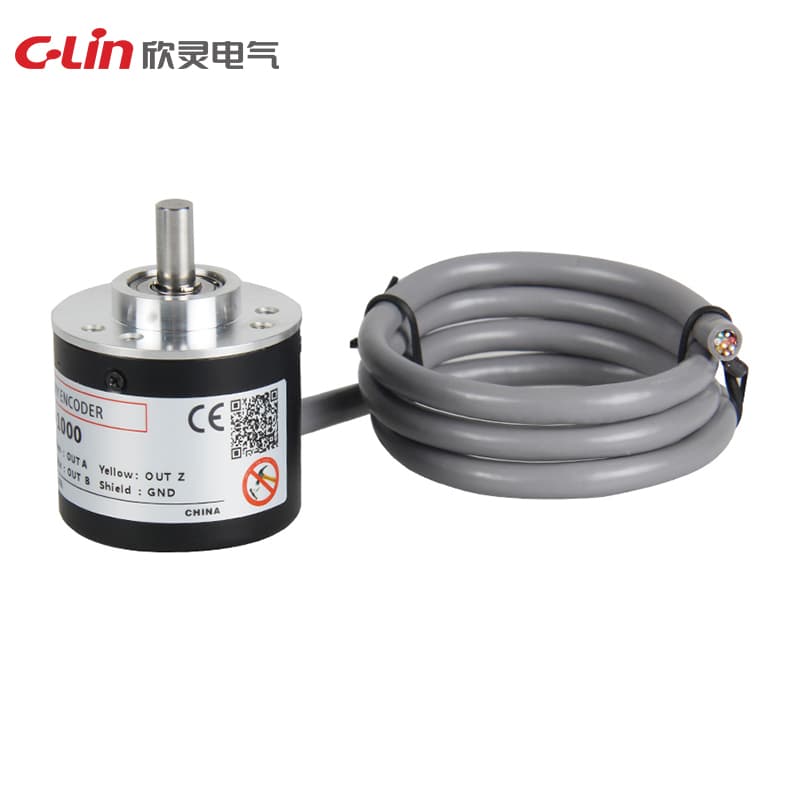

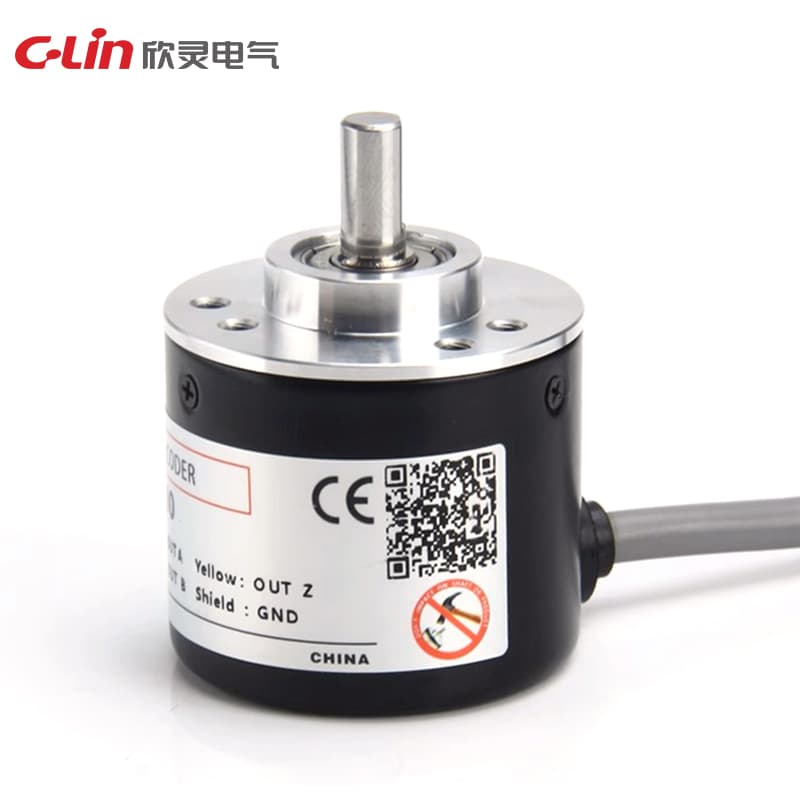

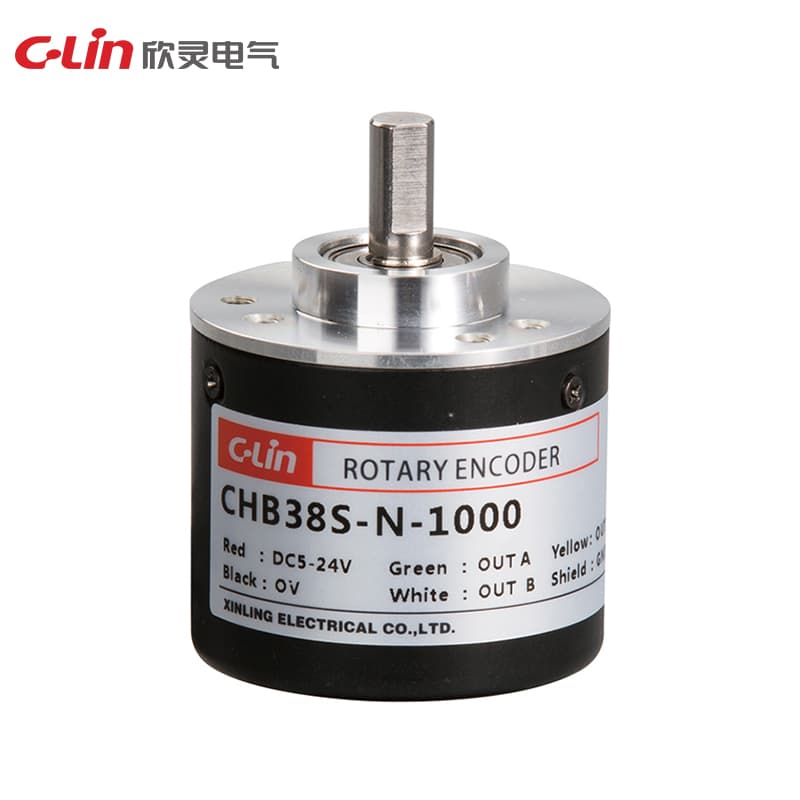

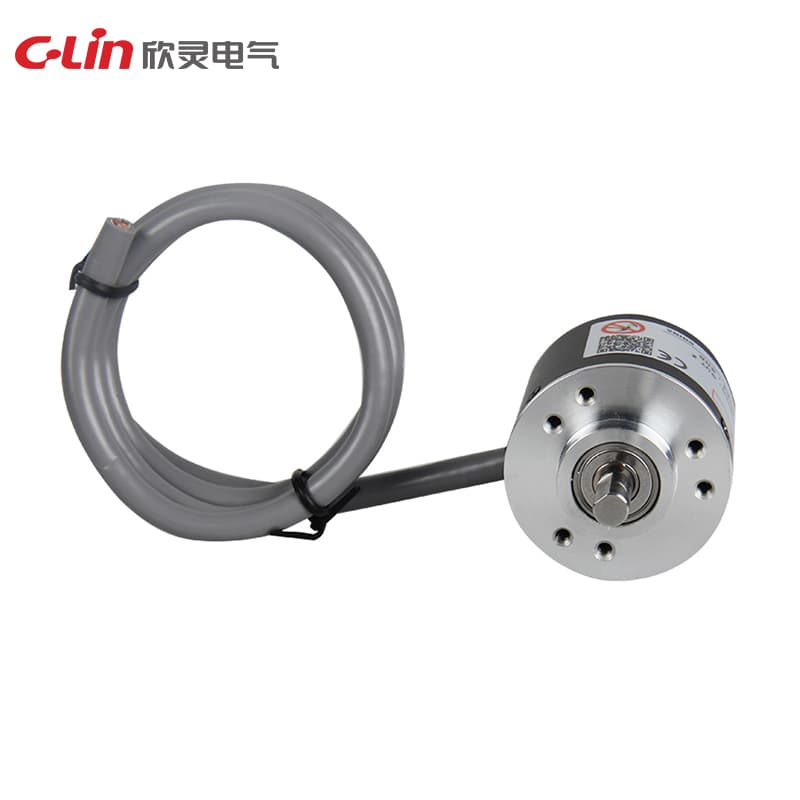

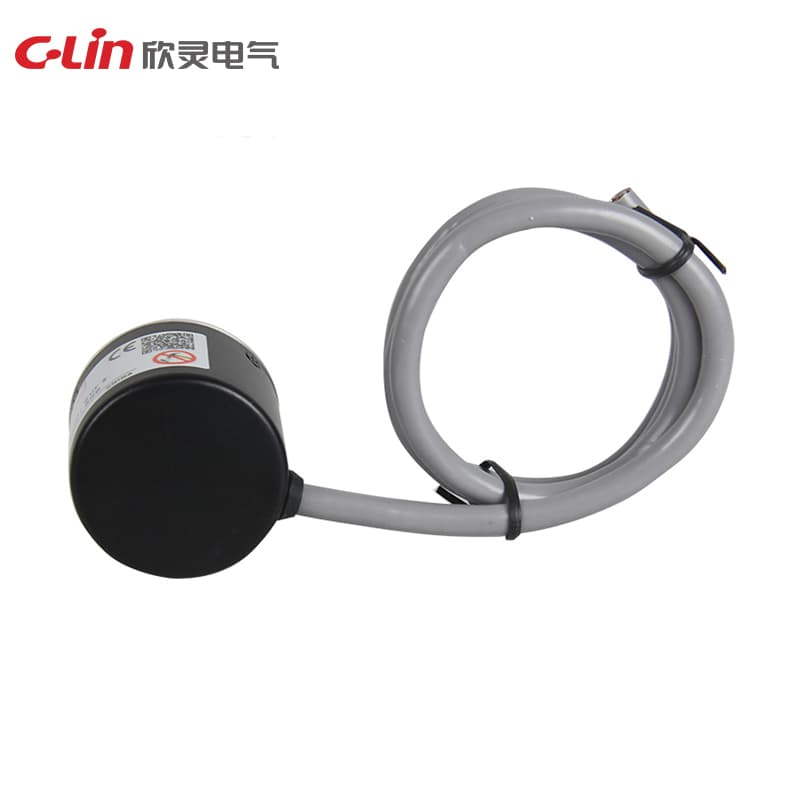

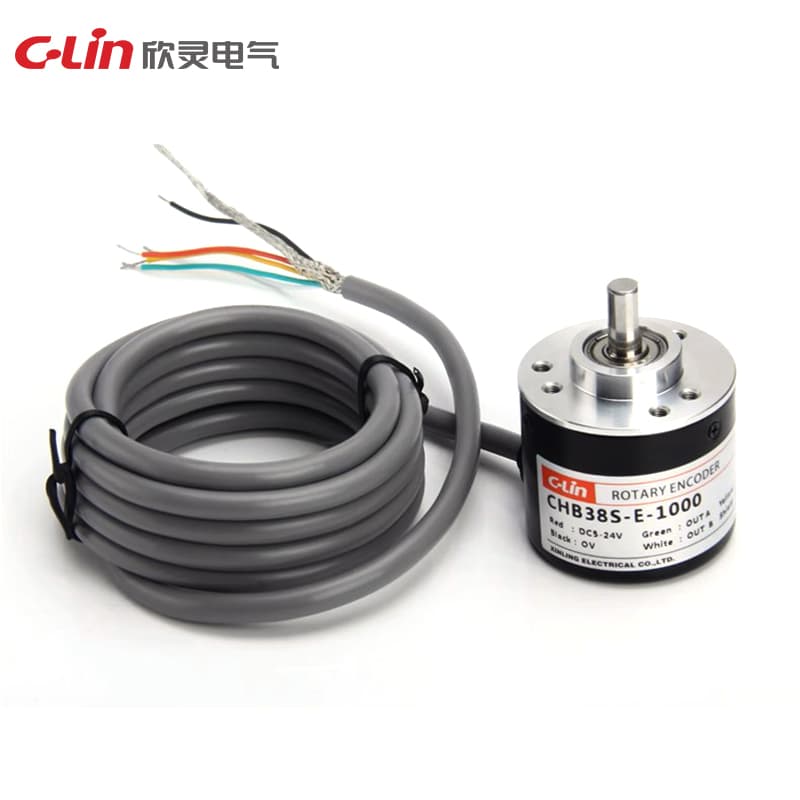

| Model | CHB38S/H |
| Main size | External diameter:φ38mm; Shaft diameter:φ6mm |
| Application | Bending machines, solar cutting machines, glass machinery and food packaging industry |
| Output mode | N:Open-collector |
| Output phase | A B Z or A B Z -A -B -Z |
| Pulse output | 100,200,300,360,400,500,600, 800,1000,1024,1200,2000,2500 |
| Working power | DC5V-24V |
| Termination mode | G:Side entry cable |
| Current consumption | ≤ 60mA |
