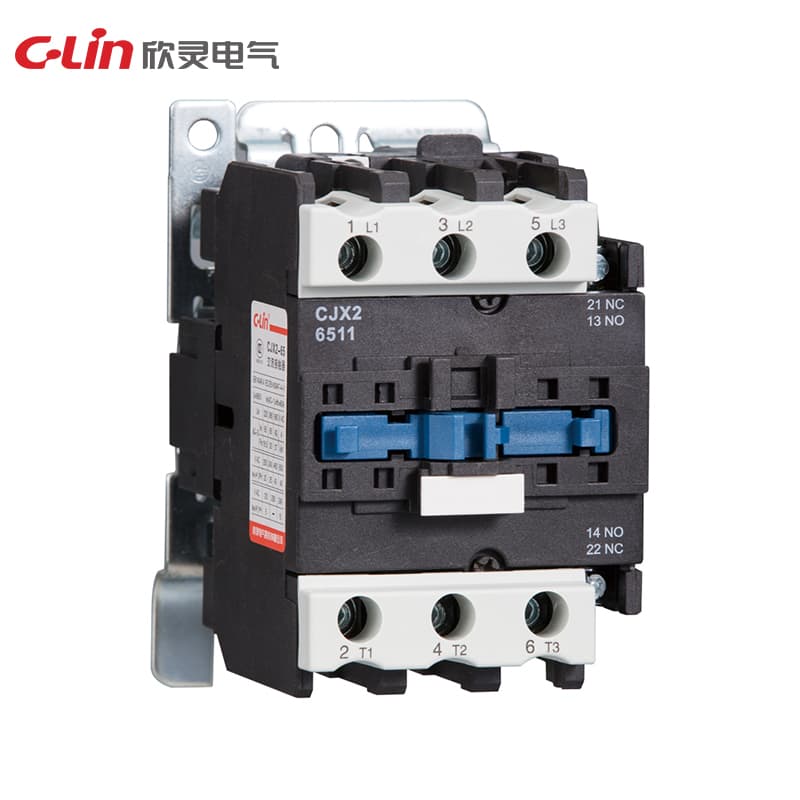

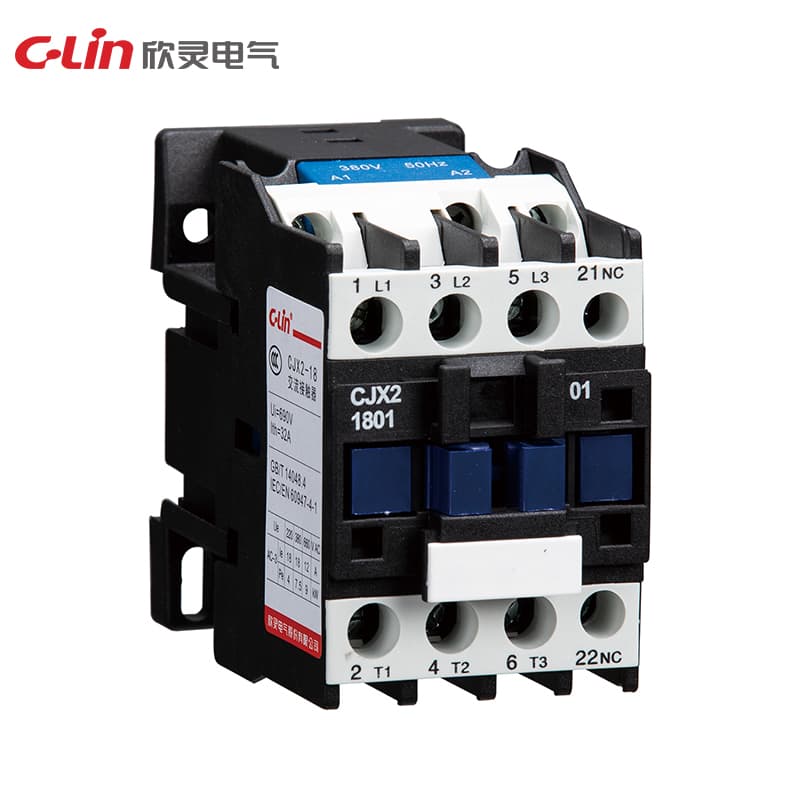

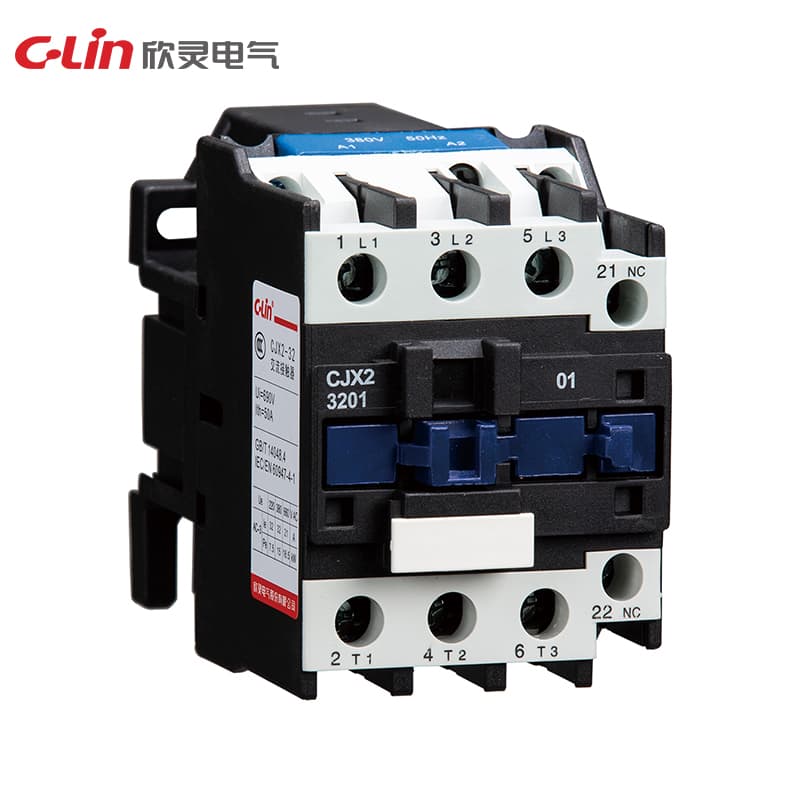

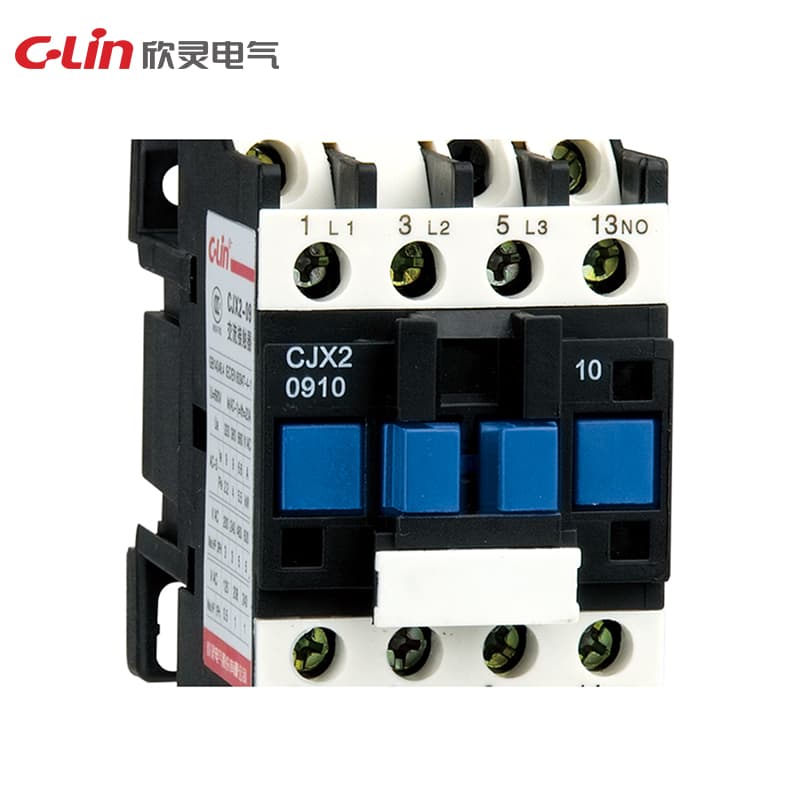

AC Contactor CJX2 Series
C-Lin

AC Contactor CJX2 Series

Model Number: CJX2

Model specification: CJX2-80, CJX2-95 Rated working current (Ie): 80A, 95A Rated insulation voltage (Ui): 690V Rated working voltage: 400V Rated control voltage: AC: 24V, 36V, 48V, 96V, 110V, 127V, 220V, 380V Ambient temperature: upper limit temperature: +40℃; lower limit temperature: -5℃; Auxiliary contact: 11 (one normally closed auxiliary contact + one normally open auxiliary contact/1NC+NO); Use category: AC-3, AC-4 Installation method: vertical installation (screw installation, 35mm/75mm standard rail)

Request Quote

Technical Specifications

ANNEXESAuxiliary contact set, air delay contacts, mechanical interlocking mechanism
InstallationVertical mounting (screw mount, 35mm/75mm standard clamp rail)
SpecificationCJX2 Series
Category of useAC-3、AC-4
Auxiliary Contacts11 (one normally closed auxiliary contact + one normally open auxiliary contact/1NC+NO);
Overall Dimension(mm)96×129×127
Rated Working Voltage400V
Rated control voltageAC：24V、36V、48V、96V、110V、127V、220V、380V
Mounting Dimension(mm)40×100/110
Environmental temperatureUpper limit temperature: +40°C; lower limit temperature: -5°C;
Rated operating current (Ie)80A、95A
Rated insulation voltage (Ui)690V
