Programmable Logic Controller CZA1 PLC Series
C-Lin

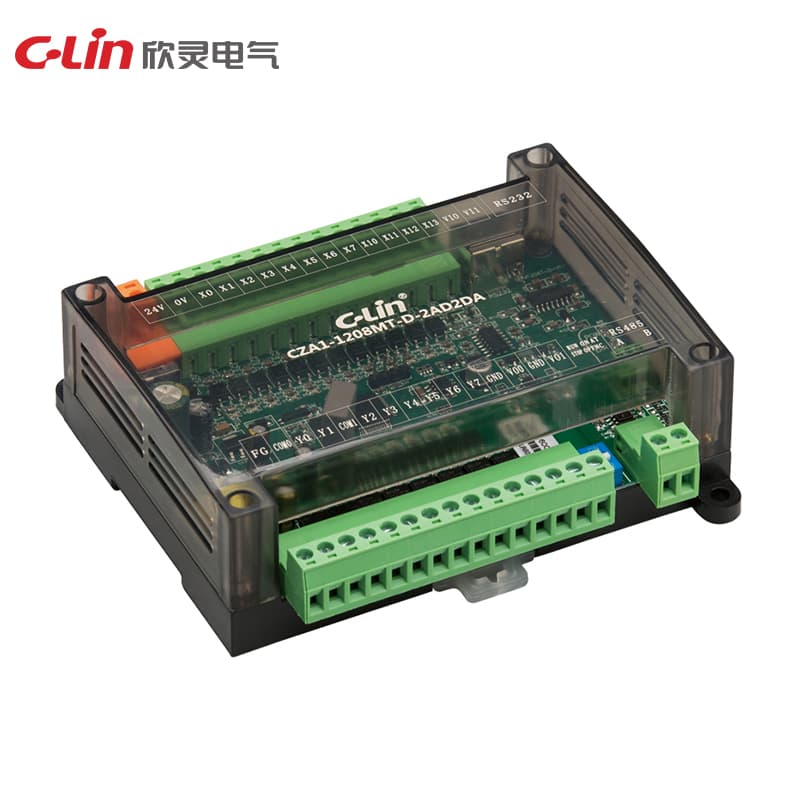

Programmable Logic Controller CZA1 PLC Series

Model Number: CZA1

Working power supply: DC24V Operation speed: 0.05μs Output mode: relay output, transistor output Expansion module: does not support external expansion High-speed interface: 2 high-speed pulse outputs Interface: 1 RS232 and 1 RS485 Communication protocol: standard Modbus Rtu protocol, free port communication, Xinling communication protocol Optional function: analog function Dimensions: 14 points: 96×107×44mm 22 points: 126×120×44mm Installation method: device type, guide rail type Ambient temperature: -20℃～+

Request Quote

Technical Specifications

Connector1x RS232 and 1x RS485
InstallationMounted, Rail Mounted
Working PowerDC24V
SpeicificationCZA1-0806MR-D, 8 inputs, 6 relay outputs
Expansion moduleNo support for additional extensions
Optional FeaturesAnalogue functions
Temperature range-20ºC~+50ºC
High speed interface2 high speed pulse outputs
Communication protocolsStandard Modbus Rtu protocol, free port communication, Xinling communication protocol
