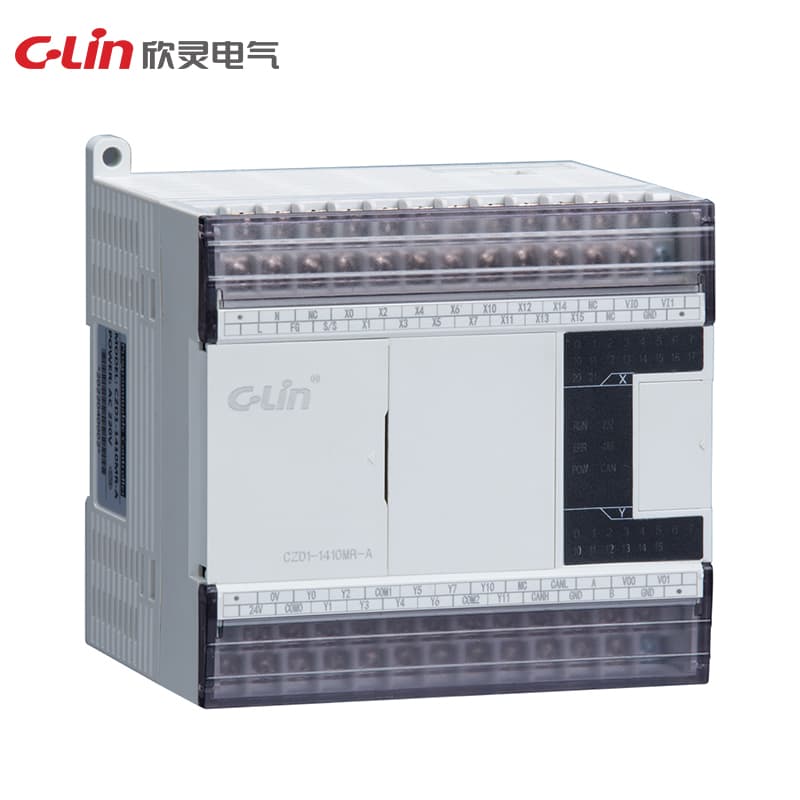

Programmable Logic Controller CZD1 PLC Series

Name: Programmable Logic Controller CZD1 PLC Series
Brand: C-Lin
SKU: CZD1

Model Number: CZD1

Working power supply: AC220V Operation speed: 0.04μs Output mode: relay output, transistor output Expansion module: 10 modules can be expanded High-speed interface: 2-way high-speed counting input Interface: USB Type-C, RS232, RS485 interface Communication protocol: standard Modbus RTU protocol, free port communication, Xinling communication protocol Optional function: analog function Dimensions: 24 points and 32 points: 109×100×88mm; 16 points: 71×100×88mm; 48 points and 60 points: 177×100×88mm Installatio

Request Quote

Technical Specifications

Connector	CAN, LAN port, USB, RS232, RS485 interface
Installation	Mounted, Rail Mounted
Output method	Relay output, transistor output
Working Power	AC100 ~ 240V
Speicification	CZD1 Series
Expansion module	Expandable by 10 modules
Optional Features	BD board, electronic cam, CAN bus, analogue functions
Temperature range	-20ºC~+50ºC
Overall dimensions	24 and 32 points: 109×100×88mm; 16 points: 71×100×88mm; 48 and 60 points: 177×100×88mm
Computational speed	0.04μs
High speed interface	2 high-speed counter inputs
Communication protocols	Standard Modbus RTU protocol, Modbus TCP protocol, free-port communication, Xinling protocol
