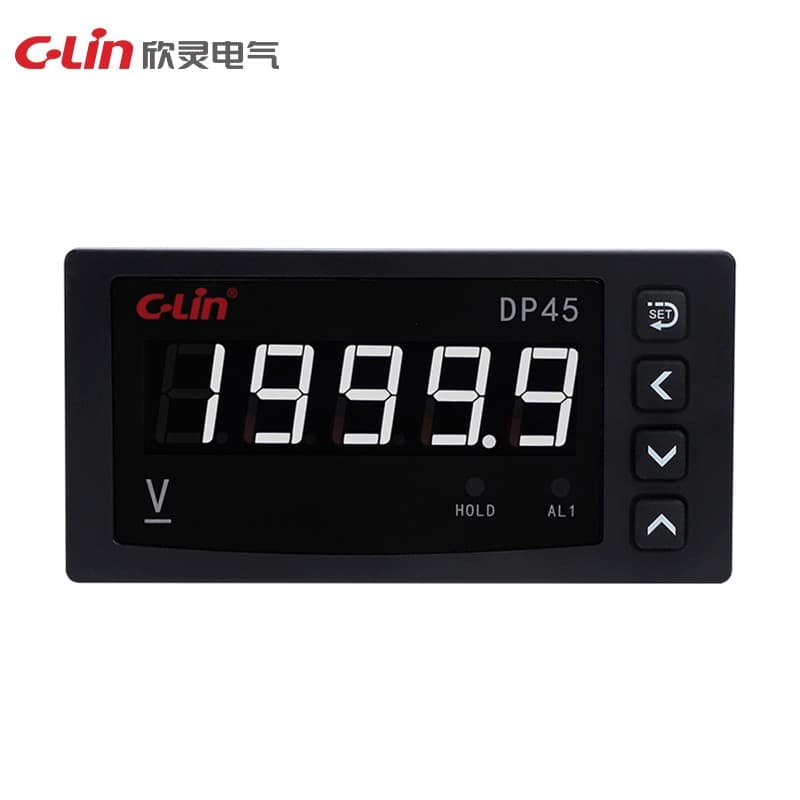

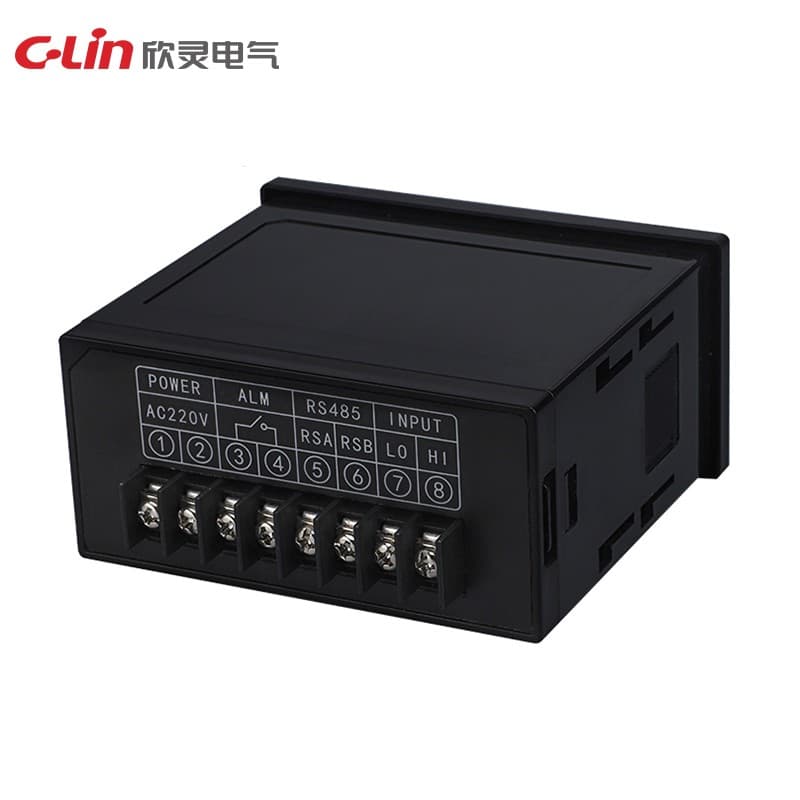

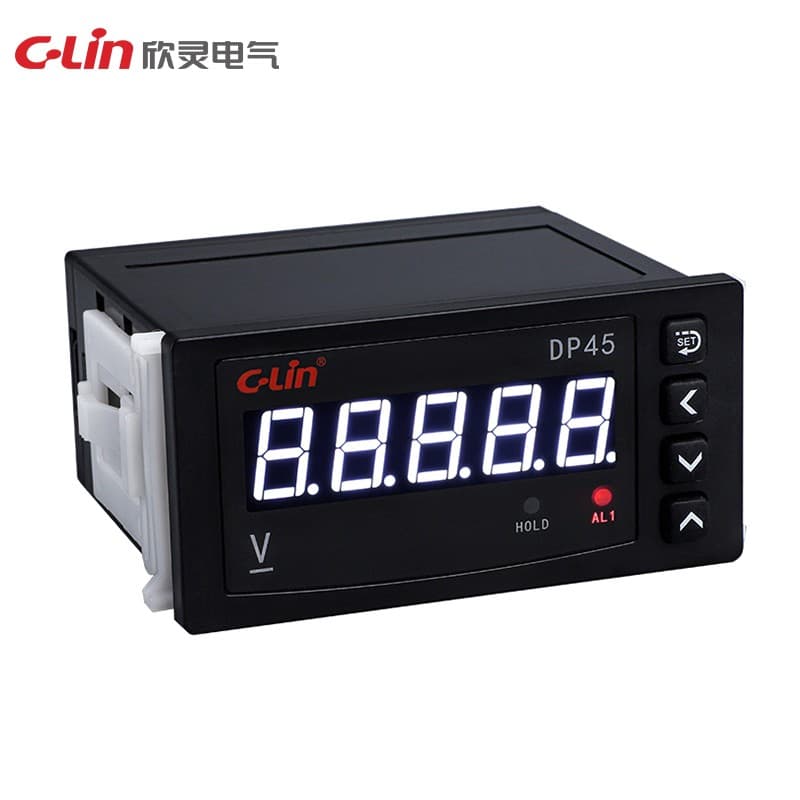

Digital Meter For Inverter DP Series
Model Number: DP45
Measuring signal: Standard current: DC4~20mA (optional) Standard voltage: DC0~10V (optional) Measurement error: ≤1.0 level Display mode: 0.56-inch digital display Range: DC range: 0~9999 Working power supply: AC220V, AC380V Dimensions: 96×48×90mm Opening size: 92×44mm Installation method: Panel type Typical application: Used in standard signal conversion devices such as frequency converters and transmitters, which can display current, voltage, frequency, speed and pressure, etc.
Request QuoteTechnical Specifications
| Model | DP45 |
| Range | DC range: 0~9999 |
| Dimension | 96×48×90mm |
| Hole size | 92×44mm |
| Alarm output | / |
| Display mode | 0.56 inch digital display |
| Input signal | AC current and voltage DC current and voltage |
| Supply voltage | AC220V or AC380V |
| Comm. interface | NA |
| Measurement error | ≤ 1.0 class |
| Measurement signal | Standard current: DC4~20mA (optional) Standard voltage: DC0~10V (optional) |
| Installation method | Panel type |
| Typical application | Used for standard signal conversion devices such as inverters and transmitters, it can display current, voltage, frequency, rev. speed, and pressure, etc |
