Miniature Circuit Breaker DZ47 Series
C-Lin

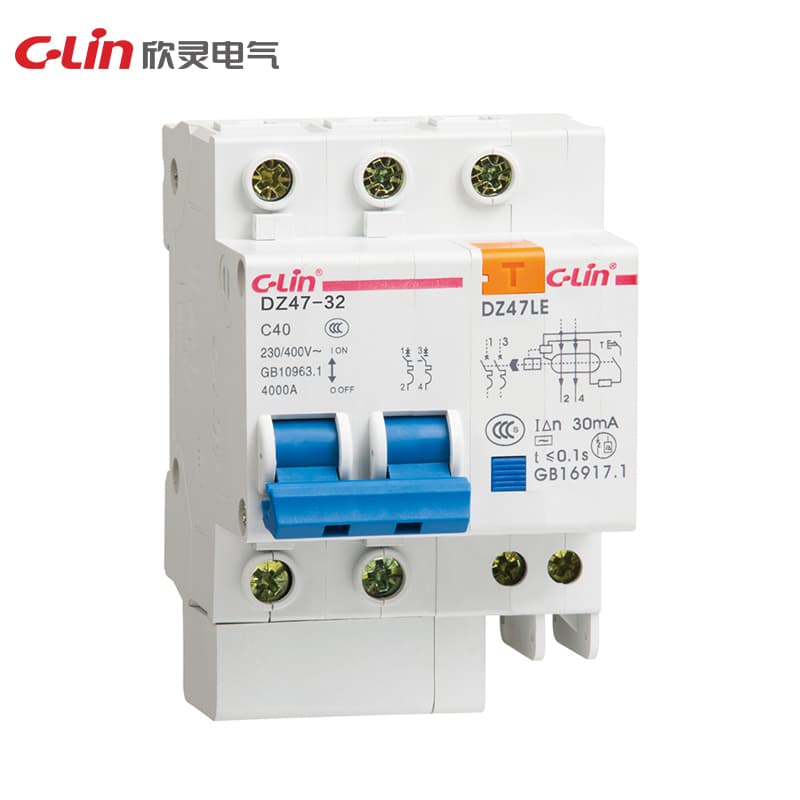

Miniature Circuit Breaker DZ47 Series

Model Number: DZ47LE-32

DZ47-63DZ47LE-32DZ47LE-63

Rated working voltage: AC230V/400V Rated frequency: 50Hz Rated working current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A Number of poles: 1P, 2P, 3P, 4P Instantaneous tripping form: C type (5~10In), D type (10~20In) Protection type: distribution protection, motor protection Rated short-circuit breaking capacity (Icu): 4kA Appearance and installation dimensions: See the instruction manual or selection manual Installation method: 35mm standard rail installation Product implementation standar

Request Quote

Technical Specifications

Pole1P、2P、3P、4P
DimensionsFind operating instructions or selection manual
Installation35mm standard rail mounting
SpecificationDZ47-63
Rated frequency50Hz
Working VoltageAC230V/400V
Type of protectionDistribution protection, motor protection
Rated operating current1A、2A、3A、4A、6A、10A、16A、20A、25A、32A、40A、50A、63A
Instantaneous release formCtype(5~10In)、D type(10~20In)
Product implementation standardsGB/T 10963.1
Rated leakage action current (I△n)30mA、50mA、100mA
Rated short-circuit breaking capacity (Icu)4kA
