Intelligent Temperature Controller HB Series
C-Lin

Intelligent Temperature Controller HB Series

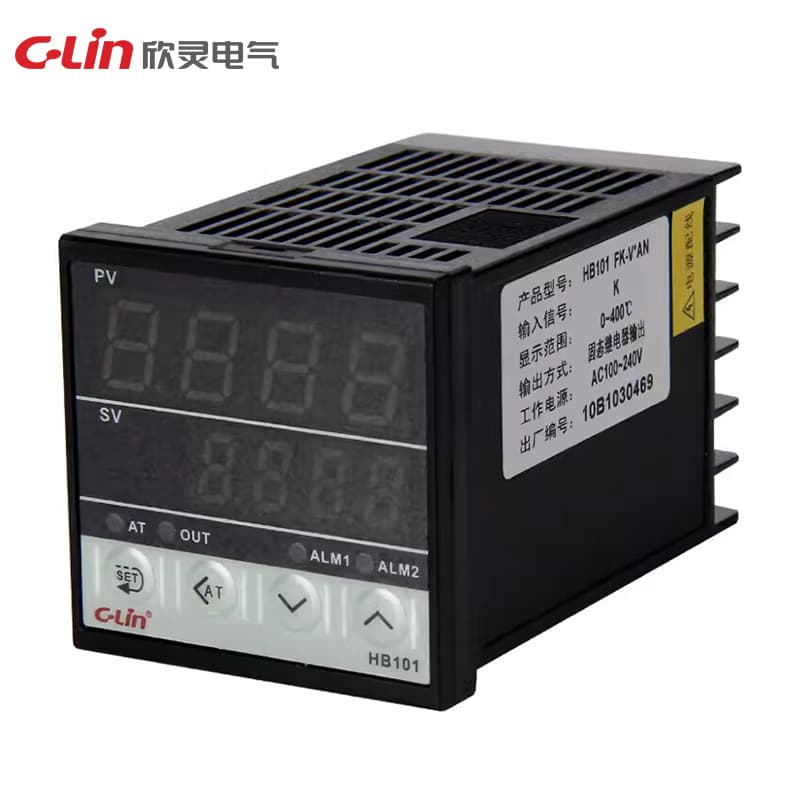

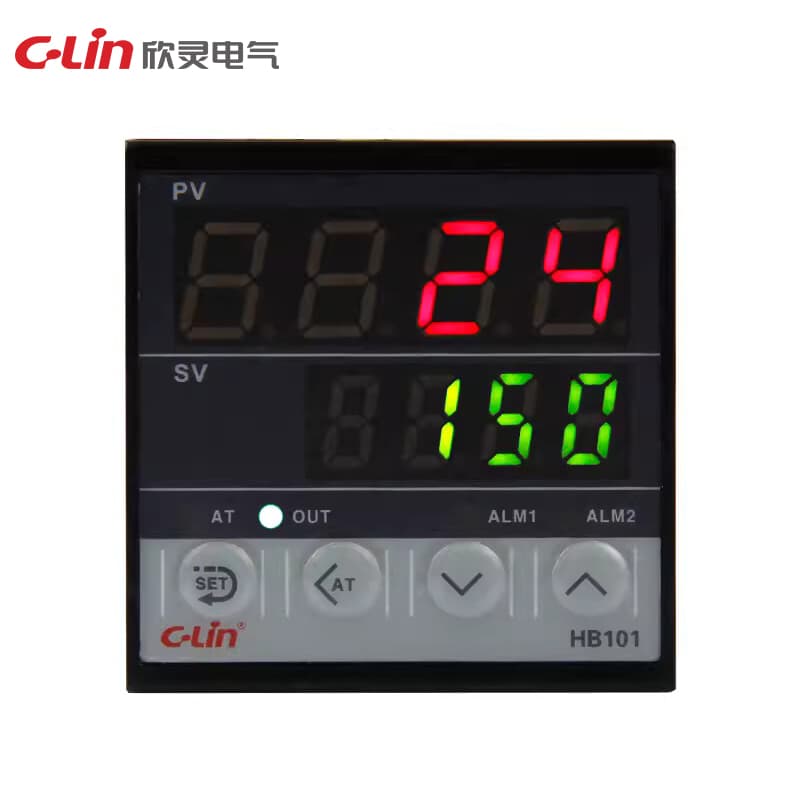

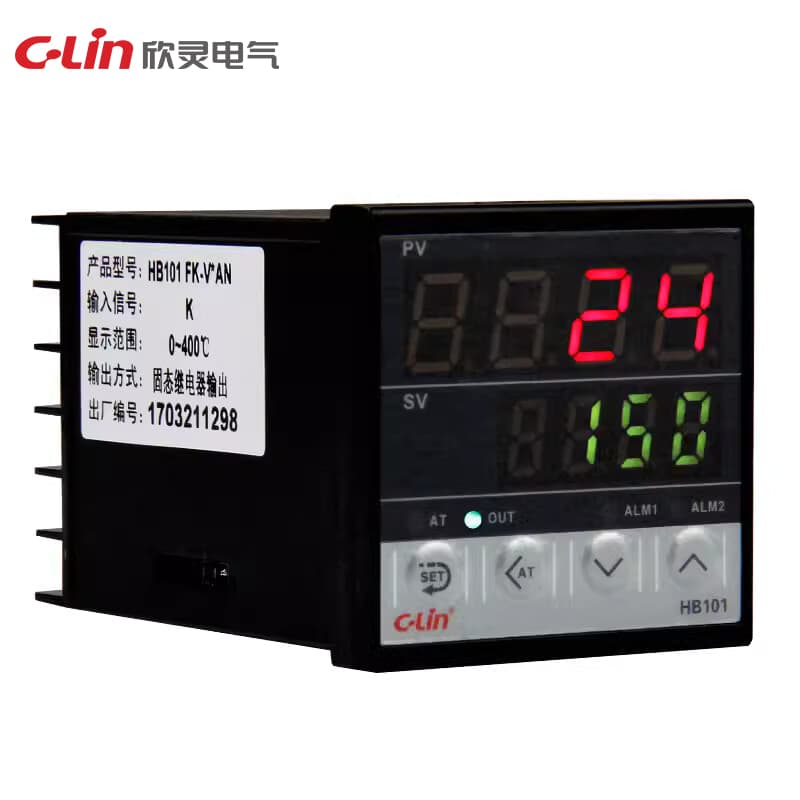

Model Number: HB101

HB101HB401HB701HB901

Input signal: Thermocouple: K, E, J; Thermal resistor: Pt100, Cu50 Control mode: Two-position relay on-off control; PID adjustment relay on-off control; PID adjustment drive SSR voltage control Alarm mode: a set of alarm relay contact output Working power supply: AC100~240V Dimensions: 48×48×78mm Opening size: 45×45mm Additional function: RS485 communication Typical application: used in extruders, reflow soldering machines, shoe machines, etc. Remarks: Multiple sensor inputs can be set by the user

Request Quote

Technical Specifications

SeriesHB101
Dimension48×48×78mm
Hole size45×45mm
Alarm mode1 set of alarm relay contact outputs
Control modeTwo-position relay on-off control;PID regulation relay on-off control; PID regulation drive SSR voltage control
Input signalThermocouple: K, E, J; Thermal resistance: Pt100, Cu50
Supply voltageAC100~240V
Additional functionRS485 communication
Typical applicationUsed in applications such as extruders, reflow soldering machines, shoe machines, etc
