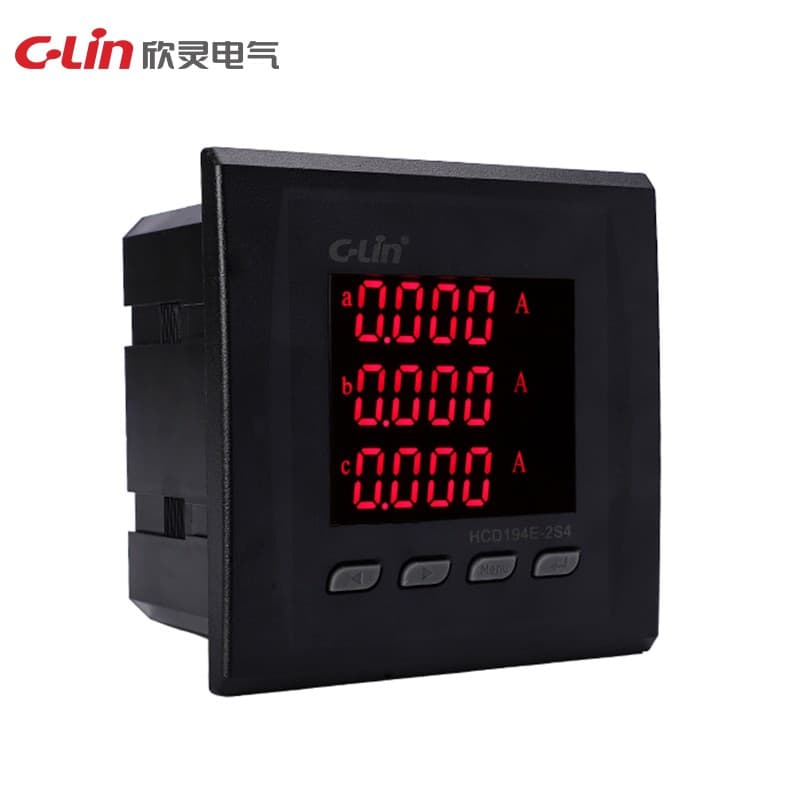

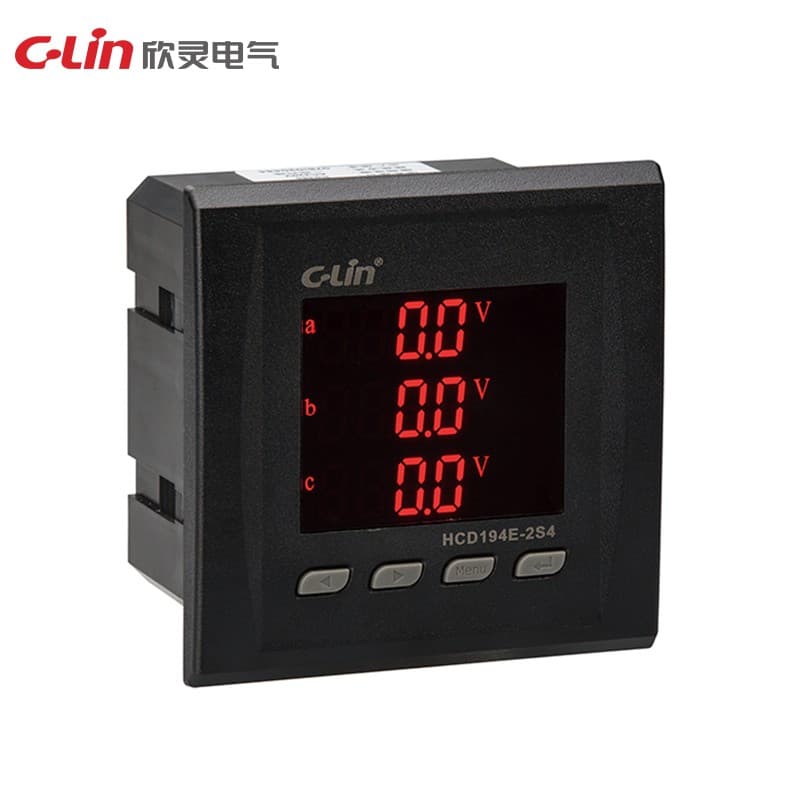

Multifunctional Power Meter HCD Series
Model Number: HCD194E-2S4
Input signal: three-phase AC current, voltage Display mode: integrated digital tube display Measurement parameters: voltage, current, active power, reactive power, power factor, frequency, active electric energy, etc. Measurement error: voltage 0.5 level, current 0.5 level, frequency 0.5 level, power 1.0 level, electric energy 1.0 level Input mode: three-phase three-wire, three-phase four-wire (settable) Output signal: communication interface: RS485;) Pulse output: 2-way electric energy pulse Ratio range: c
Request QuoteTechnical Specifications
| Model | HCD194E-2S4 |
| Dimension | 72×72×85mm |
| Hole size | 68×68mm |
| Input mode | 3-phase 3-wire, 3-phase 4-wire (optional) |
| Display mode | Integrated digital display |
| Pulse output | 2-circuit electric energy pulse |
| Output signal | Comm. interface: RS485 |
| Supply voltage | AC220V |
| Measurement error | Voltage: 0.5 class Current: 0.5 class Frequency: 0.5 class Power: 1.0 class Electric energy: 1.0 class |
| Measurement signal | Three-phase AC current and voltage |
| Installation method | Panel type |
| Variable ratio range | Current CT (magnification), voltage PT (magnification) |
| Measurement parameter | Voltage, current, active power, reactive power, power factor, frequency, active energy, etc |
