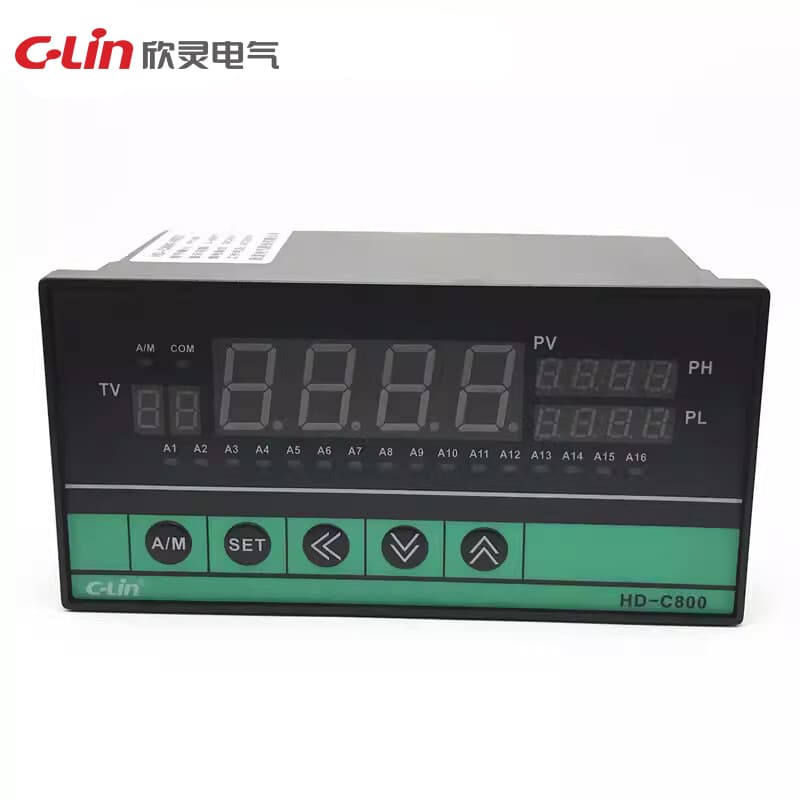

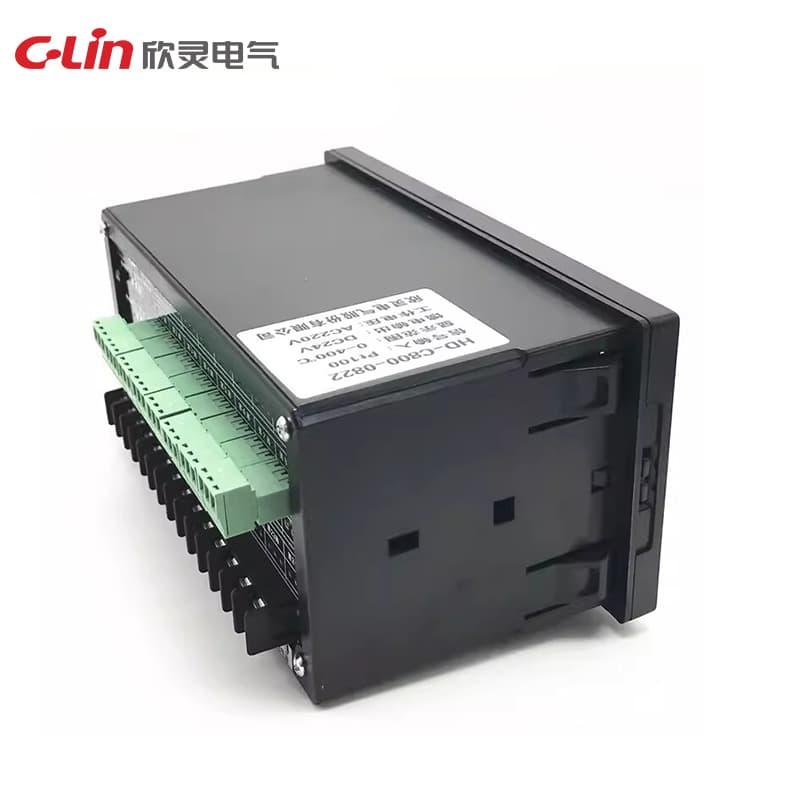

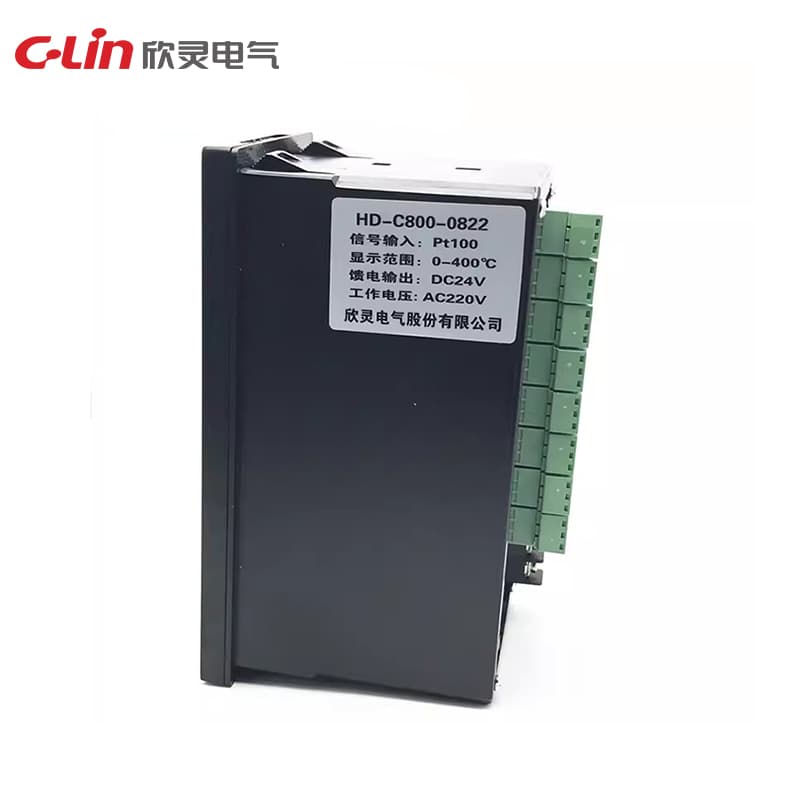

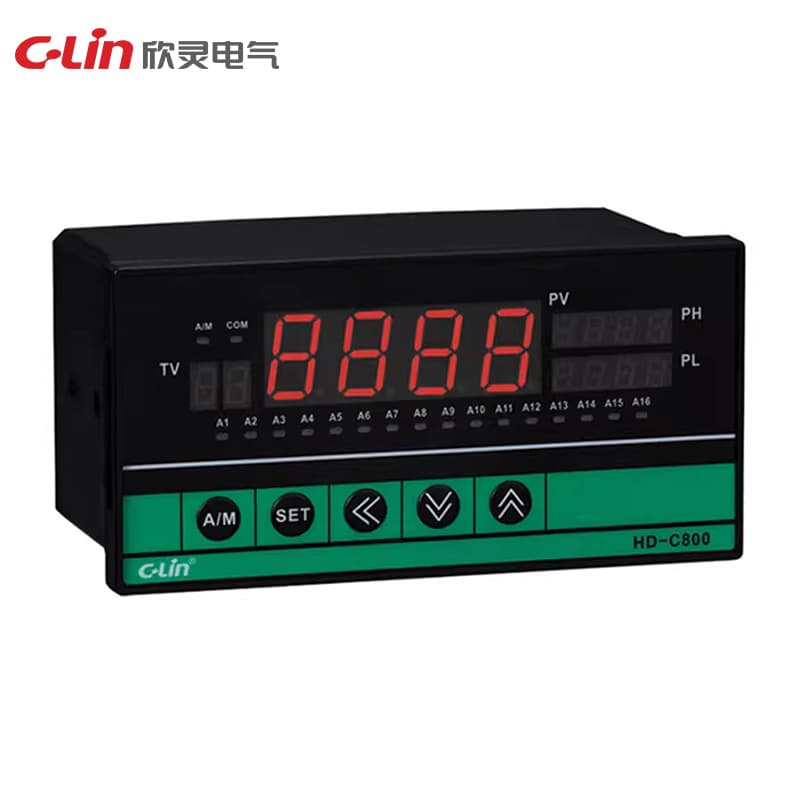

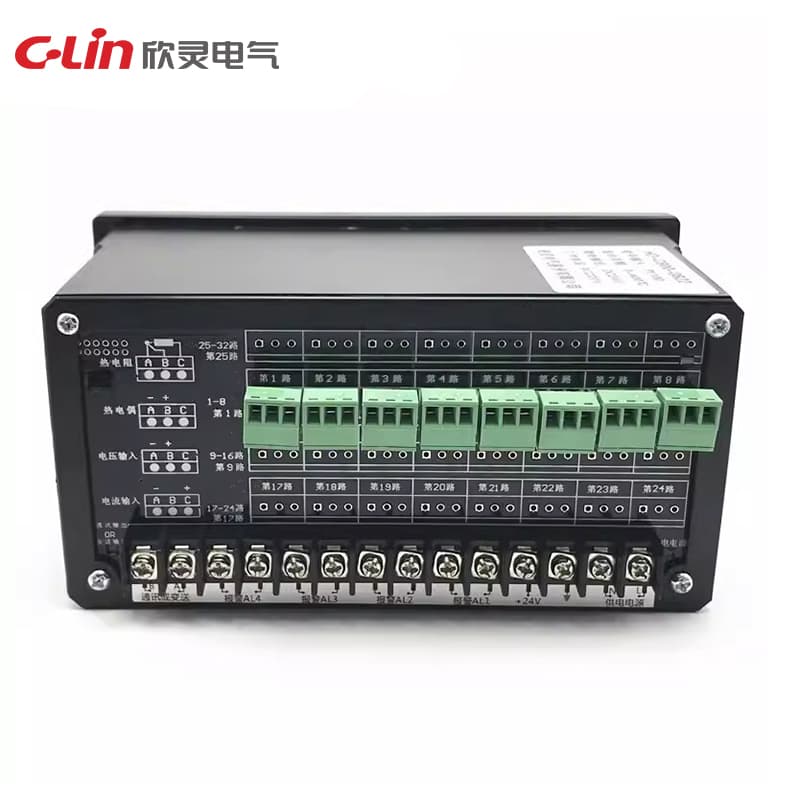

Intelligent Temperature Itinerant Detector HD Series

Name: Intelligent Temperature Itinerant Detector HD Series
Brand: C-Lin
SKU: HD-C800

Model Number: HD-C800

Measuring signal: Thermocouple: K, E; Thermal resistor: Pt100, Cu50 Inspection point: 1-8 Inspection mode: automatic inspection and manual inspection Inspection time: automatic inspection time can be set within 0-100 seconds Alarm mode: upper limit alarm, lower limit alarm Alarm output: relay contact (control hysteresis adjustable) Contact capacity: passive AC220V 3A (resistive load) Communication interface: RS485 (optional) Working power supply: AC220V Dimensions: 160×80×103.5mm Opening size: 152×76mm Inst

Request Quote

Technical Specifications

Model	HD-C800
Module	(1~8 temperature display channels can be set, with two sets of alarm relays, without RS485 module)
Dimension	160×80×103.5mm
Hole size	152×76mm
Alarm mode	Upper limit alarm, lower limit alarm
Alarm output	Relay contact (control hysteresis adjustable)
Supply voltage	AC 220V
Comm. interface	RS485 (optional)
Contact capacity	Passive AC 220V 3A (resistive load)
Measurement signal	Thermocouple: K, E
Installation method	Panel type
Typical application	Multi-point temperature monitoring for grain depots, switchgear assemblies, motor protection places etc.
Itinerant detecting time	Automatic itinerant detecting time 0-100s
Itinerant detecting method	Automatic and manual
Itinerant detecting point circuit	1~8 circuit
