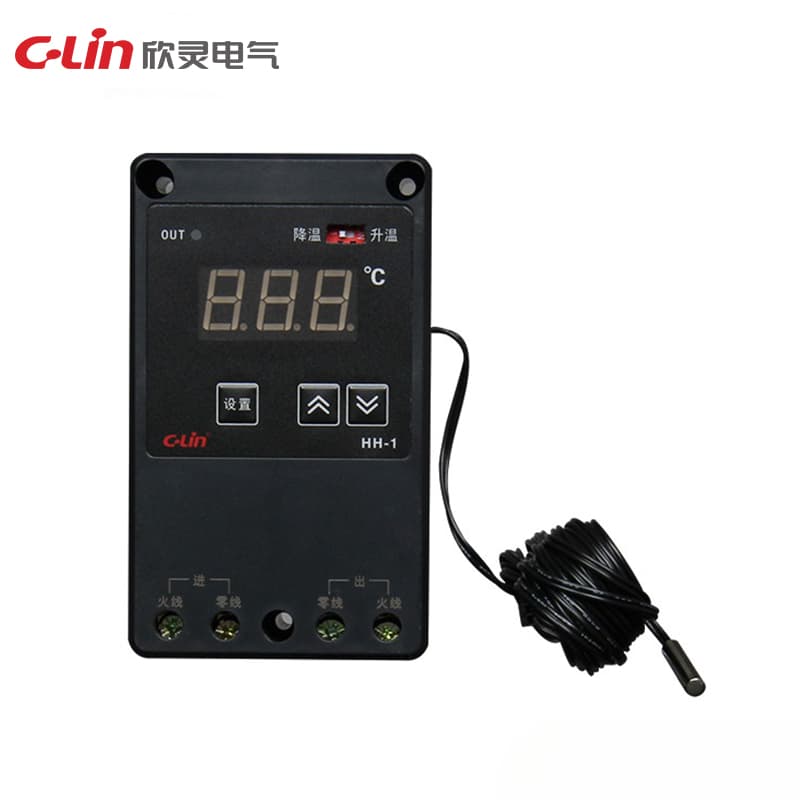

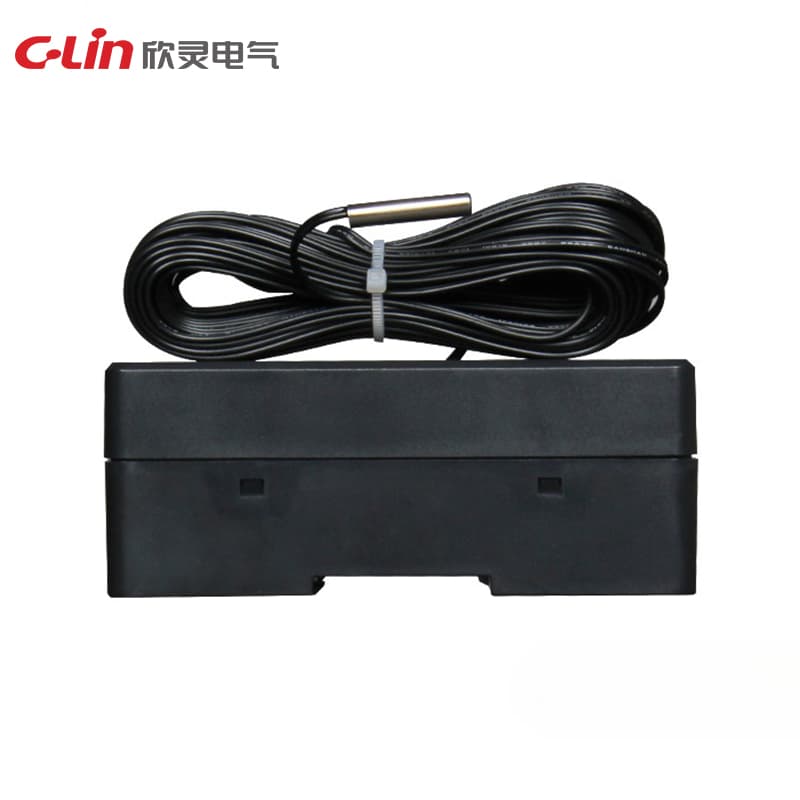

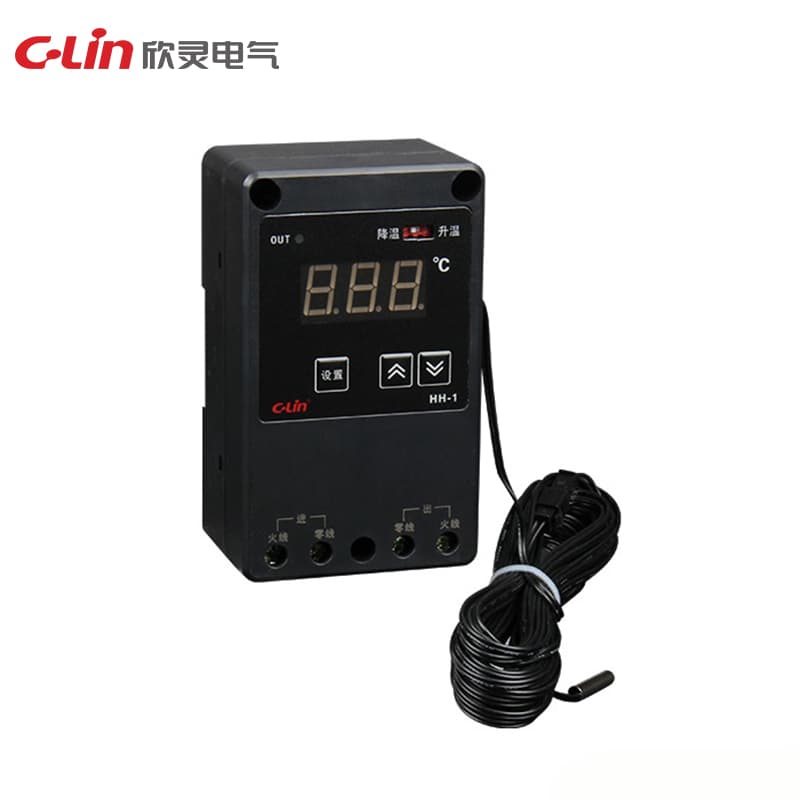

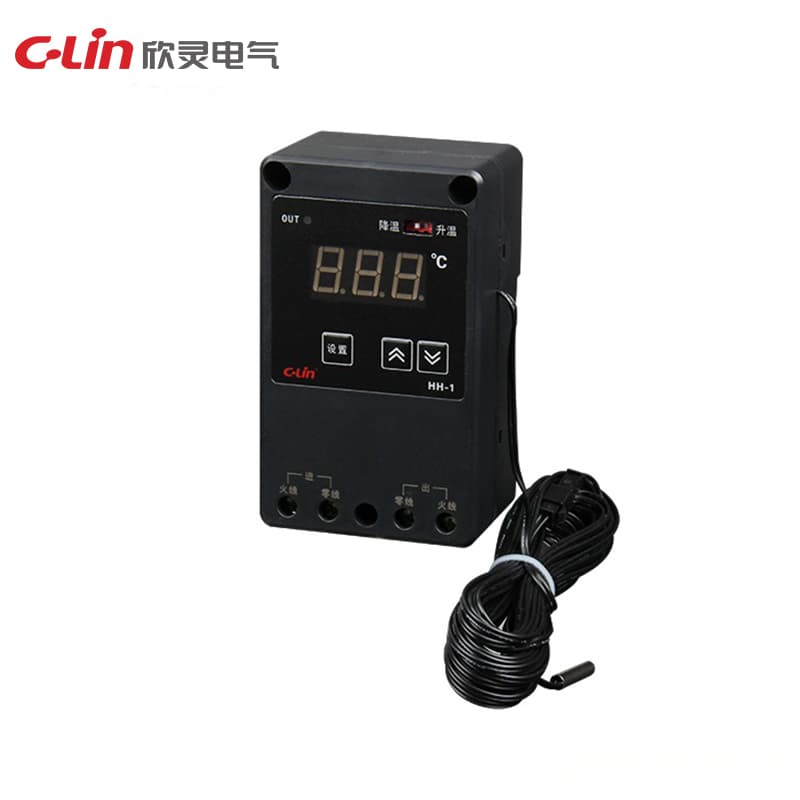

Heating And Cooling Controller HH Series

Name: Heating And Cooling Controller HH Series
Brand: C-Lin
SKU: HH-1

Model Number: HH-1

Input signal: thermistor (special sensor, wiring) Resolution: ±0.1℃ Control mode: P1: single limit, P2: double limit Range: -40~99.9℃ Power supply: AC220V/50Hz Dimensions: 72×120×46mm Installation: guide rail, wall suction, hanging Typical applications: farms, hatchery, water temperature control, complete cabinets

Request Quote

Technical Specifications

Model	HH-1
Range	-40~99.9°C
Dimension	72×120×46mm
Hole size	45×45mm
Resolution	±0.1°C
Control mode	P1: Single limit, P2: Double limit
Input signal	Thermal resistance (specialized sensor, wiring)
Control range	Dehumidification start for ambient humidity ≥ 93% RH Dehumidification stop for ambient humidity ≤ 75% RH Temperature can be set through potentiometer (hysteresis 5°C )
Supply voltage	AC220V/50Hz
Contact capacity	5A AC220V (resistive)
Installation method	DIN rail type, wall-mounted type, hanging type
Typical application	Culturing farm, hatching, water temperature control, switchgear assembly
