Technical Specifications

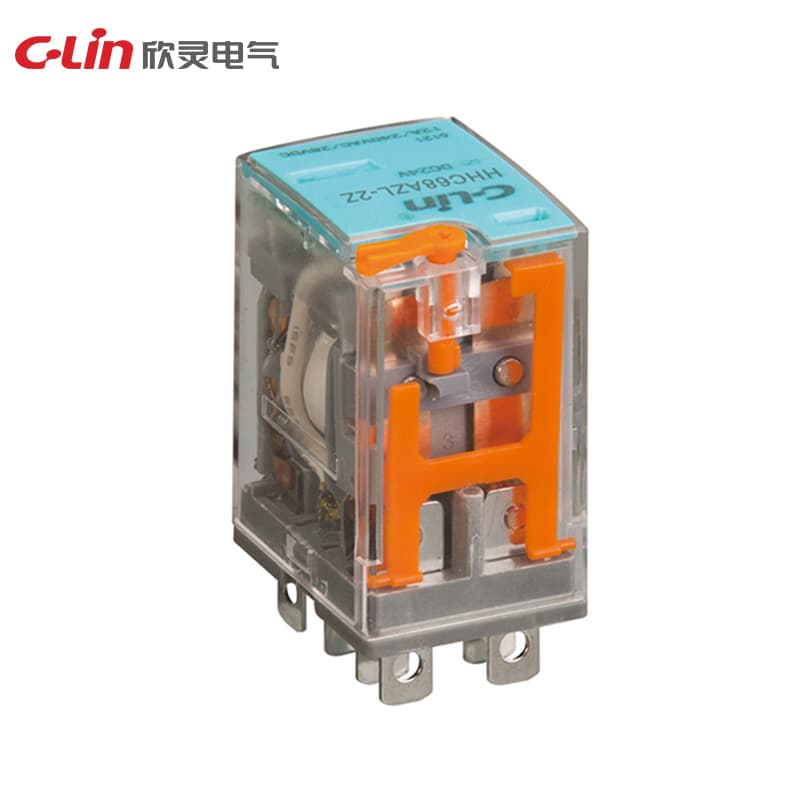

| Model | HH68AZL-2Z |
| Coil power | DC: 0.9W, AC: 1.2VA |
| Coil voltage | DC6V-220V, AC6V-380V |
| Contact form | 2H, 2D, 2Z |
| Contact load | 12A/240VAC 28VDC |
| Contact material | Silver alloy |
| Contact resistance | ≤100mΩ |
| Insulation resistance | ≥100MΩ(500VDC) |
