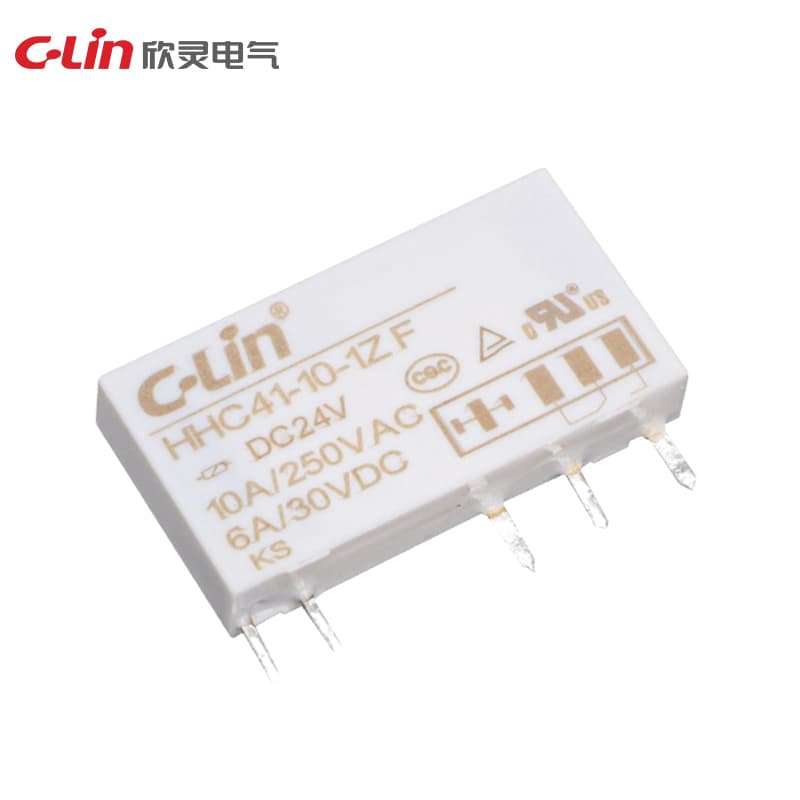

Miniature Electromagnetic Relay HHC41 Series
Model Number: HHC41-10 1Z
HHC41-10 1ZHHC41-6 1Z
Contact type: 1H, 1Z Contact load: 6A/277VAC 24VDC Coil power: 0.17W/0.4W Coil specifications: DC3-24V/DC3-60V Dimensions: 28×5×18.6mm
Request QuoteTechnical Specifications
| Model | HHC41-10 1Z |
| Coil power | 0.17W/0.4W |
| Dimensions | 28×5×18.6mm |
| Coil voltage | Standard type: DC3-24V, high power type: DC3-60V |
| Contact form | 1Z: 1 set NO/NC switching |
| Contact load | 6A/277VAC 24VDC |
| Insulation class | Class F |
| Coil power consumption | Standard type |
