C-Lin

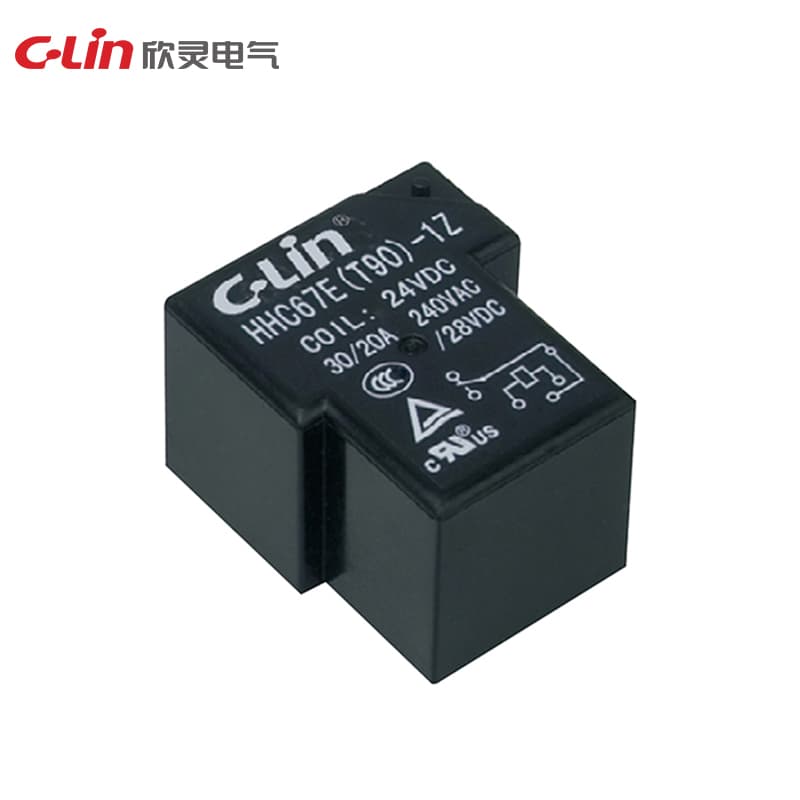

Miniature Electromagnetic Relay HHC67E Series

Name: Miniature Electromagnetic Relay HHC67E Series
Brand: C-Lin
SKU: HHC67E

Model Number: HHC67E

Load voltage: 250VAC/30VDC Contact resistance: ≤ 100mΩ (6VDC, 1A) Switching life: 50A/250V, 10,000 times Rated current: 50A Minimum load current: 6V/1A Typical application areas: photovoltaic, energy storage, charging piles, electric vehicles

Request Quote

Technical Specifications

Model	HHC67E
Action time	≤15ms
Coil voltage	DC5V-110V, AC6V-220V
Contact form	1Z: 1 set NO/NC switching, 1H: 1 set NO, 1D: 1 set NC
Contact load	30A/240VAC 28VDC
Release time	≤10ms
Contact material	Silver copper alloy
Contact resistance	≤100mΩ
