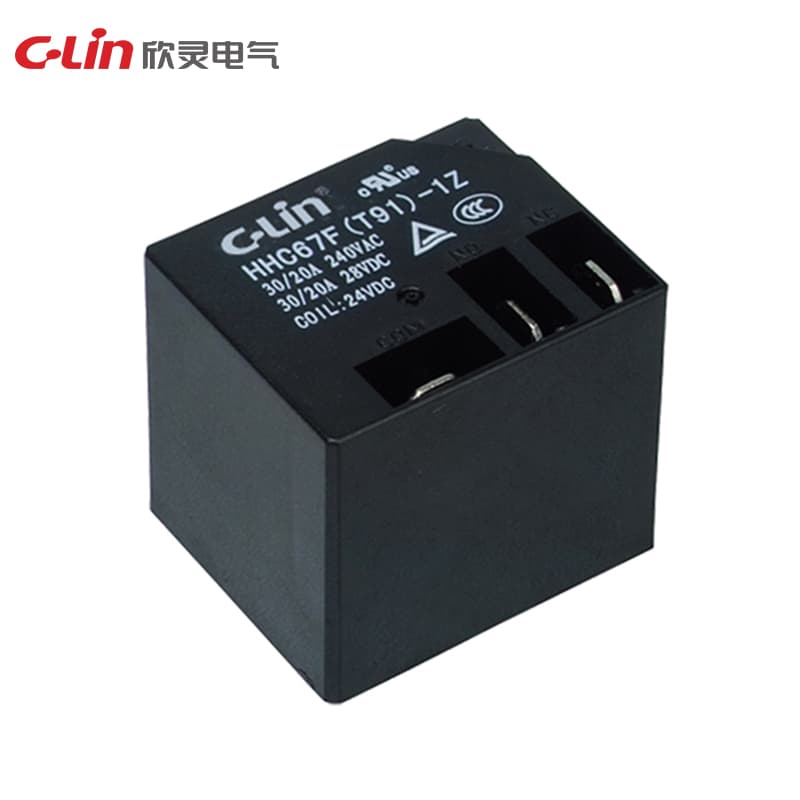

Miniature Electromagnetic Relay HHC67F Series

Name: Miniature Electromagnetic Relay HHC67F Series
Brand: C-Lin
SKU: HHC67F

Model Number: HHC67F

Contact type: 1H, 1D, 1Z Contact load: NC: 30A/240VAC 28VDC NO: 40A/240VAC 28VDC NC: 20A/240VAC 28VDC NO: 30A/240VAC 28VDC Coil power: DC: 0.93W, AC: 1.5VA Coil specifications: DC: 5V-110V; AC: 6V-220V Dimensions: 32×27×28.6mm

Request Quote

Technical Specifications

Model	HHC67F
Dimension	32×27×28.6mm
Coil power	DC: 0.93W, AC: 1.5VA
Coil voltage	DC5V-110V, AC6V-220V
Contact form	1Z: 1 set NO/NC switching, 1H: 1 set NO, 1D: 1 set NC
Contact load	30A/240VAC 28VDC
Contact material	Silver alloy
Contact resistance	≤100mΩ
