C-Lin

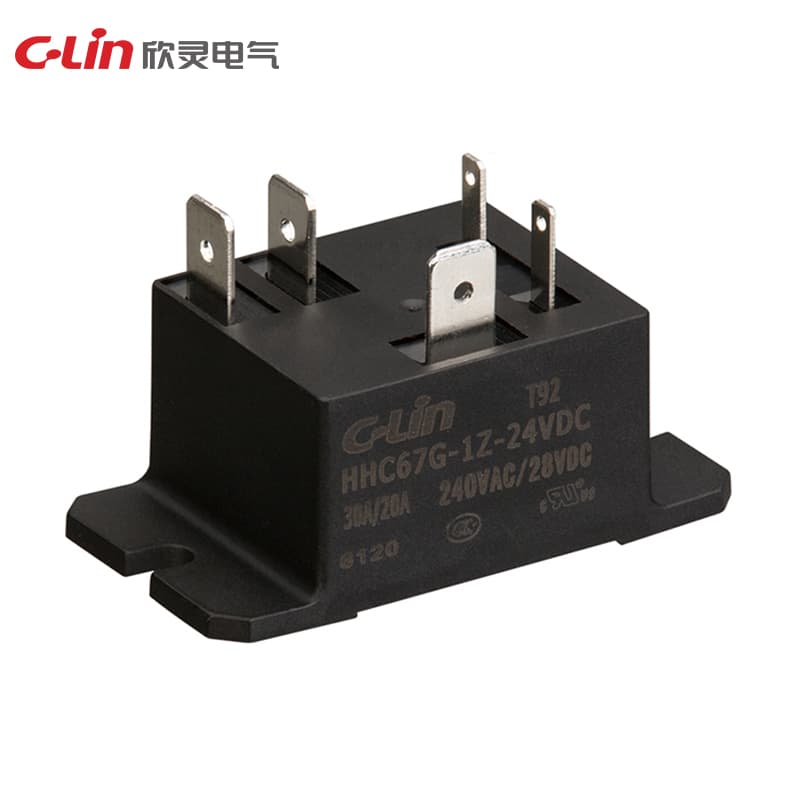

Miniature Electromagnetic Relay HHC67G Series

Name: Miniature Electromagnetic Relay HHC67G Series
Brand: C-Lin
SKU: HHC67G

Model Number: HHC67G

Contact type: 1H, 1D, 1Z Contact load: NC: 30A/240VAC 28VDC NO: 40A/240VAC 28VDC NC: 20A/240VAC 28VDC NO: 30A/240VAC 28VDC Coil power: DC: 0.93W, AC: 1.5VA Coil specifications: DC: 5V-110V; AC: 6V-220V Dimensions: 32.4×27.4×28.6mm

Request Quote

Technical Specifications

Model	HHC67G
Coil power	DC: 0.93W, AC: 1.5VA
Coil voltage	DC5V-110V, AC6V-220V
Contact form	1Z: 1 set NO/NC switching, 1H: 1 set NO, 1D: 1 set NC
Contact load	30A/240VAC 28VDC
Common models	T92, G8P-T-F, HF105F-4
Contact material	Silver alloy
Contact resistance	≤100mΩ
