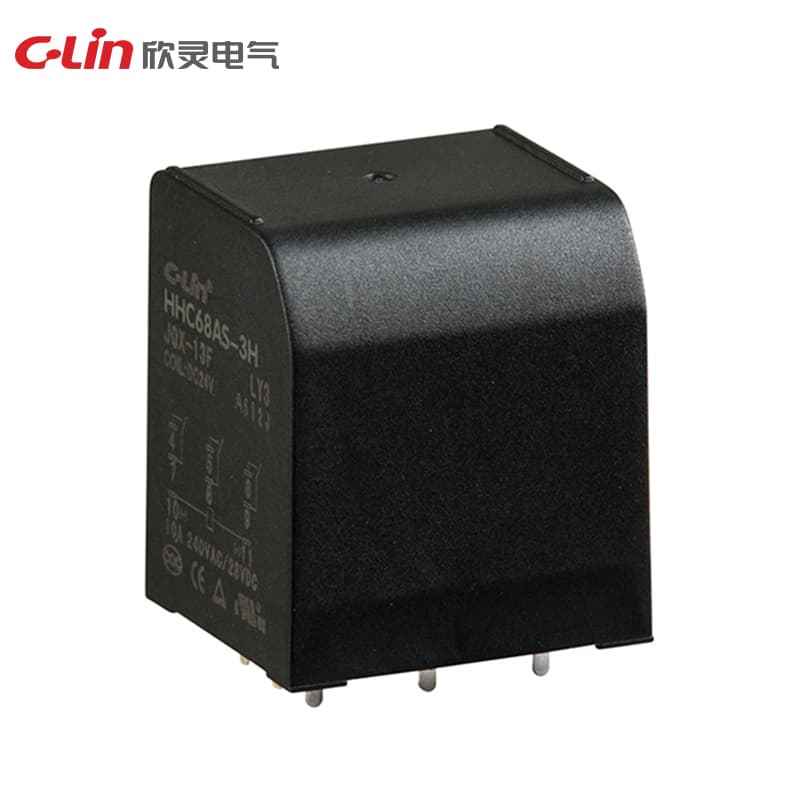

Miniature Electromagnetic Relay HHC68AS Series

Name: Miniature Electromagnetic Relay HHC68AS Series
Brand: C-Lin
SKU: HHC68AS-3H

Model Number: HHC68AS-3H

Contact type: 3H, 3D, 3Z Contact load: 10A/240VAC 28VDC Coil power: DC: 0.9W; AC: 1.2VA Coil specifications: DC: 6V-220V; AC: 6V-380V Dimensions: 31.8×28×36.8mm

Request Quote

Technical Specifications

Model	HHC68AS-3H
Coil power	DC: 0.9W, AC: 1.2VA
Coil voltage	DC6V-220V, AC6V-380V
Contact form	2Z: 2 sets NO/NC switching, 3Z: 3 sets NO/NC switching, 4Z: 4 sets NO/NC switching
Contact load	12A/240VAC 28VDC
Contact material	Silver alloy
Contact resistance	≤100mΩ (at 6VDC 1A)
Insulation resistance	1000MΩ
