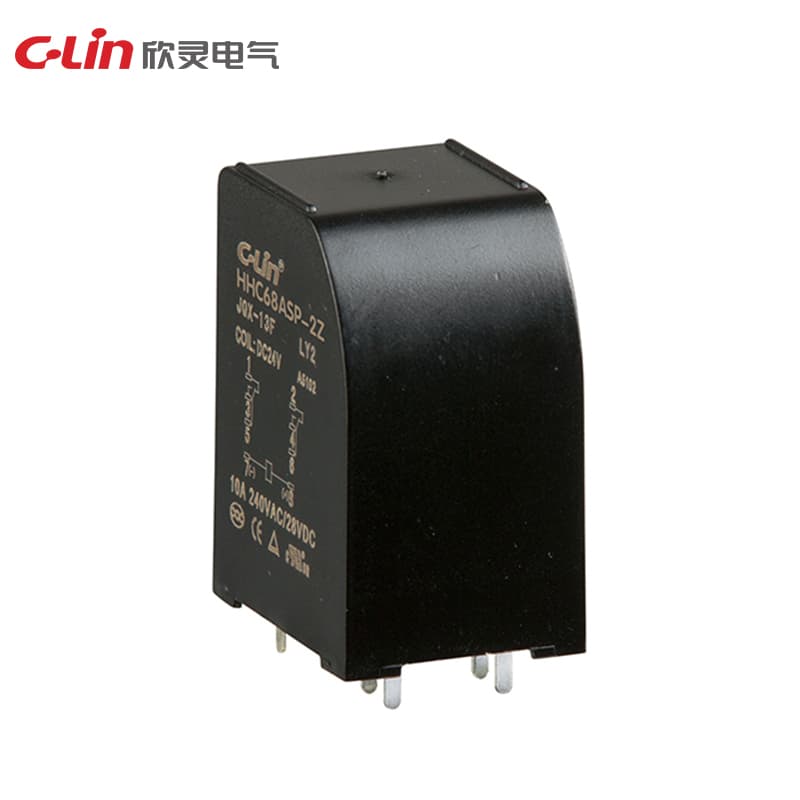

Miniature Electromagnetic Relay HHC68ASP Series

Name: Miniature Electromagnetic Relay HHC68ASP Series
Brand: C-Lin
SKU: HHC68ASP

Model Number: HHC68ASP

Contact type: 2H, 2D, 2Z Contact load: 10A/240VAC 28VDC Coil power: DC: 0.9W; AC: 1.2VA Coil specifications: DC: 6V-220V; AC: 6V-380V Dimensions: 27.8×21.7×38.1mm

Request Quote

Technical Specifications

Model	HHC68ASP
Coil power	DC: 0.9W, AC: 1.2VA
Coil voltage	DC6V-220V, AC6V-380V
Contact form	2Z: 2 sets NO/NC switching, 3Z: 3 sets NO/NC switching, 4Z: 4 sets NO/NC switching
Contact load	12A/240VAC 28VDC
Contact material	Silver alloy
Contact resistance	≤100mΩ (at 6VDC 1A)
Insulation resistance	1000MΩ
