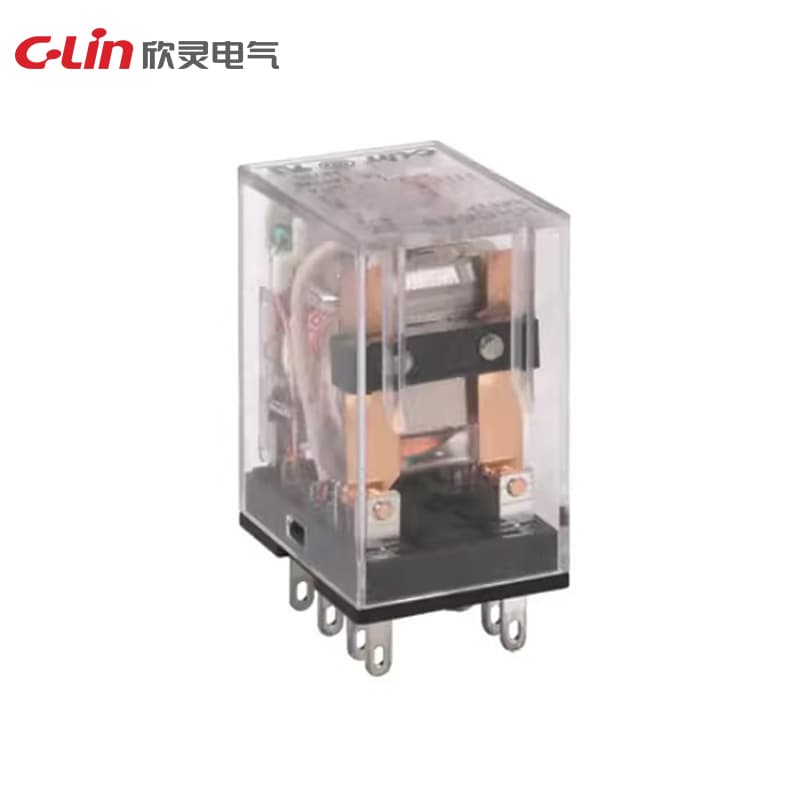

Miniature Electromagnetic Relay HHC68B Series

Name: Miniature Electromagnetic Relay HHC68B Series
Brand: C-Lin
SKU: HHC68B-2Z

Model Number: HHC68B-2Z

HHC68B-2ZHHC68B-3Z HHC68B-4Z HHC68BVL-2Z HHC68BVL-4Z HHC68BZL-2Z HHC68BZL-4Z

Contact type: 2H, 2D, 2Z Contact load: 5A/240VAC 28VDC Coil power: DC: 0.9W; AC: 1.2VA Coil specifications: DC: 3V-220V; AC: 3V-380V Dimensions: 27.3×21×35mm

Request Quote

Technical Specifications

Model	HHC68B-2Z
Coil power	DC: 0.9W, AC: 1.2VA
Coil voltage	DC6V-220V, AC6V-380V
Contact form	2Z: 2 sets NO/NC switching, 3Z: 3 sets NO/NC switching, 4Z: 4 sets NO/NC switching
Contact load	10A/240VAC 28VDC 6.5A/240VAC 28VDC
Contact material	Silver alloy
Contact resistance	≤100mΩ
Insulation resistance	≥100MΩ(500VDC)
