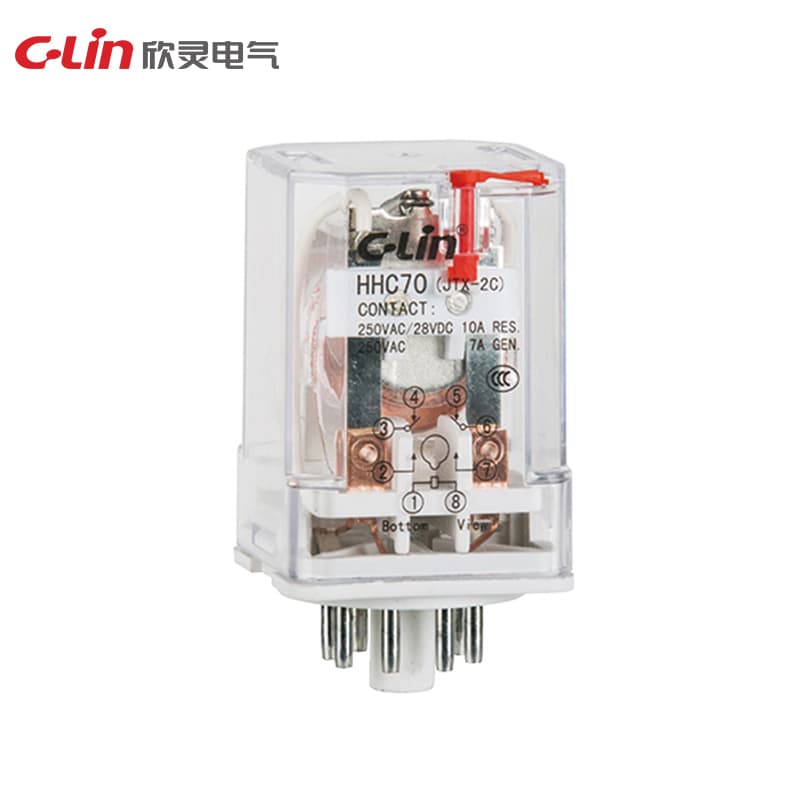

Miniature Electromagnetic Relay HHC70A Series
C-Lin

Miniature Electromagnetic Relay HHC70A Series

Model Number: HHC70A-3Z

HHC70A-2ZHHC70A-3Z

Contact type: 2H, 2D, 2Z Contact load: 10A/240VAC 28VDC Coil power: DC: 1.8W; AC: 2.7VA Coil specifications: DC: 6V-220V; AC: 6V-380V Dimensions: 35×35×53mm

Request Quote

Technical Specifications

ModelHHC70A-3Z
Coil powerDC: 1.8W, AC: 2.7VA
Coil voltageDC6V-220V, AC6V-380V
Contact form2Z: 2 sets NO/NC switching, 3Z: 3 sets NO/NC switching
Contact load10A/240VAC 28VDC
Contact materialSilver alloy
Contact resistance≤100mΩ (6VDC 1A)
Insulation resistance≥100MΩ(500VDC)
