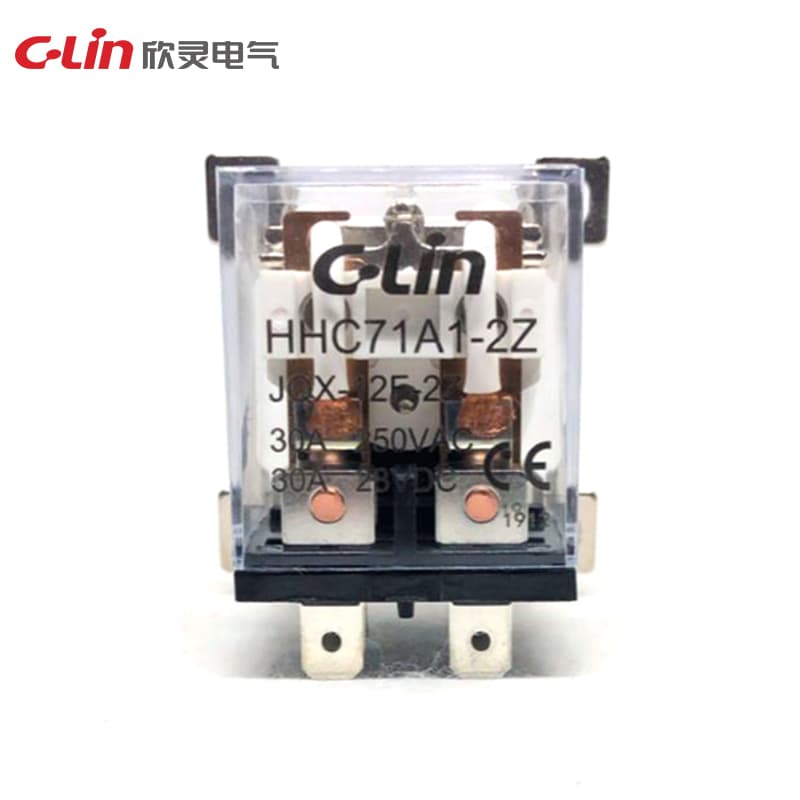

Miniature Electromagnetic Relay HHC71A Series

Name: Miniature Electromagnetic Relay HHC71A Series
Brand: C-Lin
SKU: HHC71A1

Model Number: HHC71A1

Contact type: 1H, 1D, 1Z, 2H, 2D, 2Z Contact load: 30A/240VAC 28VDC Coil power: DC: 2.0W; AC: 4.0VA Coil specifications: DC: 6V-220V; AC: 6V-380V Dimensions: 53×46×41.3mm

Request Quote

Technical Specifications

Model	HHC71A1
Coil power	DC: 2W, AC: 4VA
Coil voltage	DC6V-220V, AC6V-380V
Contact form	2Z: 2 sets NO/NC switching
Contact load	30A/240VAC 28VDC
Contact material	Silver alloy
Contact resistance	≤100mΩ (6VDC 1A)
Insulation resistance	≥100MΩ(500VDC)
