Miniature Electromagnetic Relay HHC71B Series
C-Lin

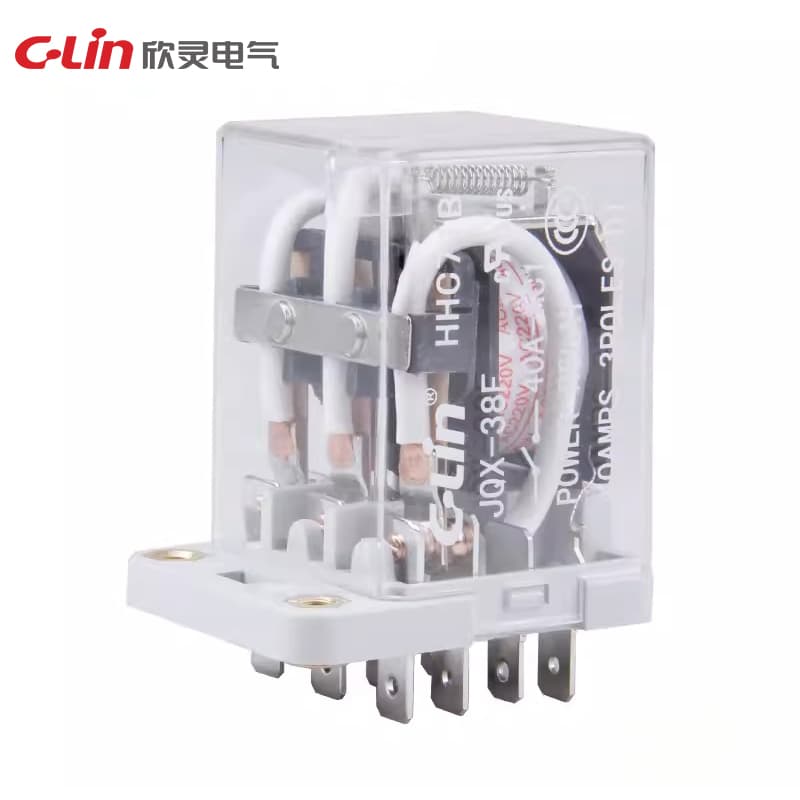

Miniature Electromagnetic Relay HHC71B Series

Model Number: HHC71B

HHC71BHHC71B Sealed Type

Contact type: 2H, 2D, 2Z, 3H, 3D, 3Z Contact load: 40A/240VAC 28VDC 50A/240VAC 28VDC Coil power: DC: 2.5W; AC: 6VA Coil specifications: DC: 6V-220V; AC: 6V-380V Dimensions: 42×50×58mm Dimensions: 42.7×37.5×59.5mm

Request Quote

Technical Specifications

ModelHHC71B
Coil powerDC: 2.5W, AC: 6VA
Coil voltageDC6V-220V, AC6V-380V
Contact form3Z: 3 sets NO/NC switching
Contact load40A/240VAC 28VDC, 50A/240VAC 28VDC
Contact materialSilver alloy
Contact resistance≤100mΩ
Insulation resistance≥100MΩ(500VDC)
