Miniature Electromagnetic Relay HHC71F Series
C-Lin

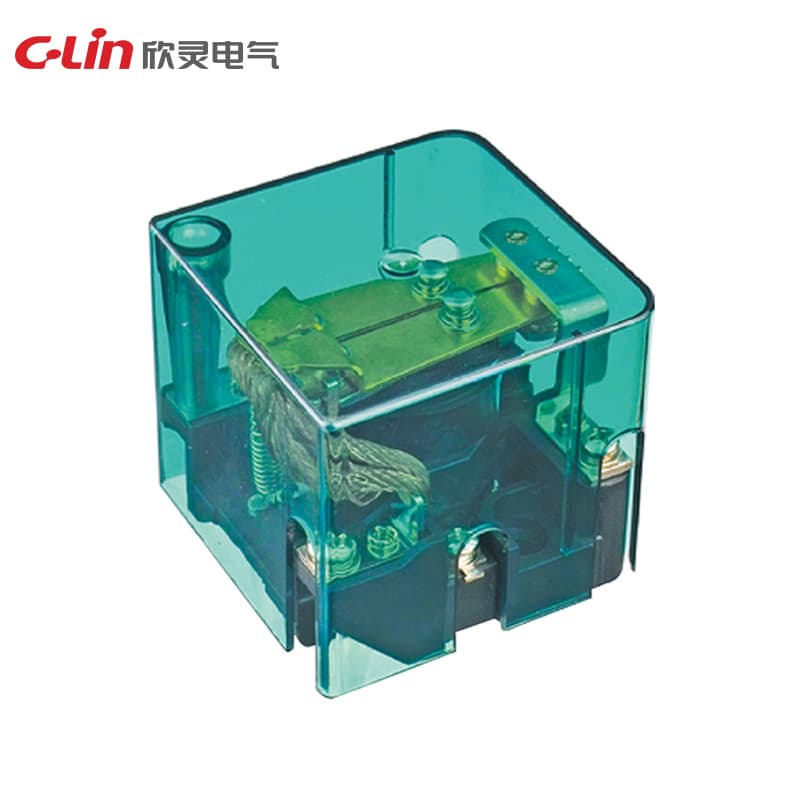

Miniature Electromagnetic Relay HHC71F Series

Model Number: HHC71FS-1Z

HHC71F-1ZHHC71F-2ZHHC71FS-1Z

Contact type: 1H, 1D, 1Z Contact load: 100A/240VAC 28VDC Coil power: DC: 2.0W; AC: 10.0VA Coil specifications: DC: 6V-220V; AC: 6V-380V Dimensions: 67×67×60.5mm

Request Quote

Technical Specifications

ModelHHC71FS-1Z
Coil powerDC: 2.0W, AC: 10.0VA
Coil voltageDC6V-220V, AC6V-380V
Contact form1Z: 1 set NO/NC switching, 2Z: 2 sets NO/NC switching
Contact load100A/240VAC  28VDC
Contact materialSilver alloy
Contact resistance≤100mΩ
Insulation resistance≥200MΩ(500VDC)
