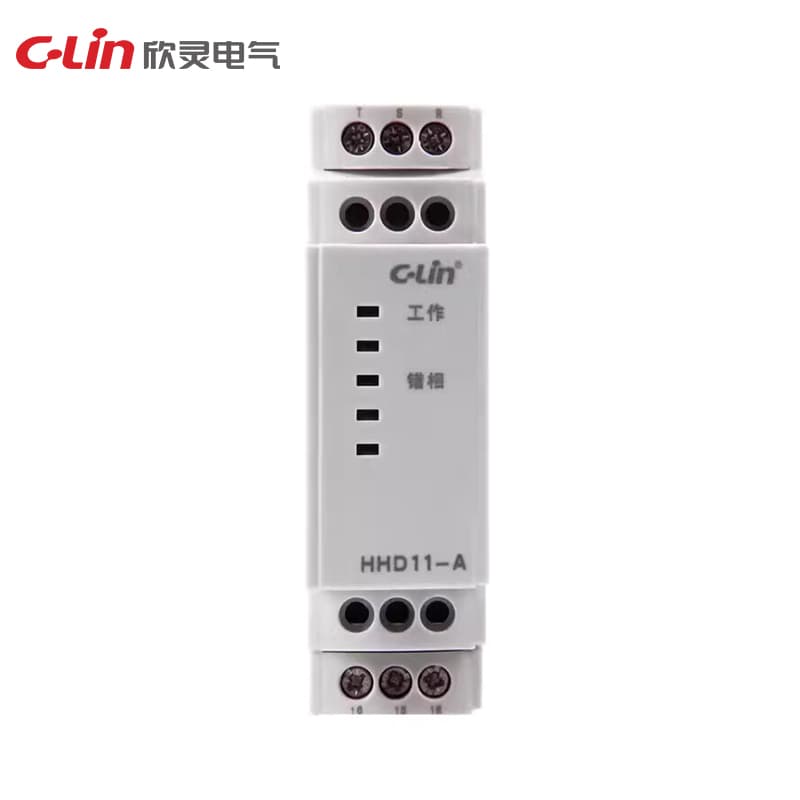

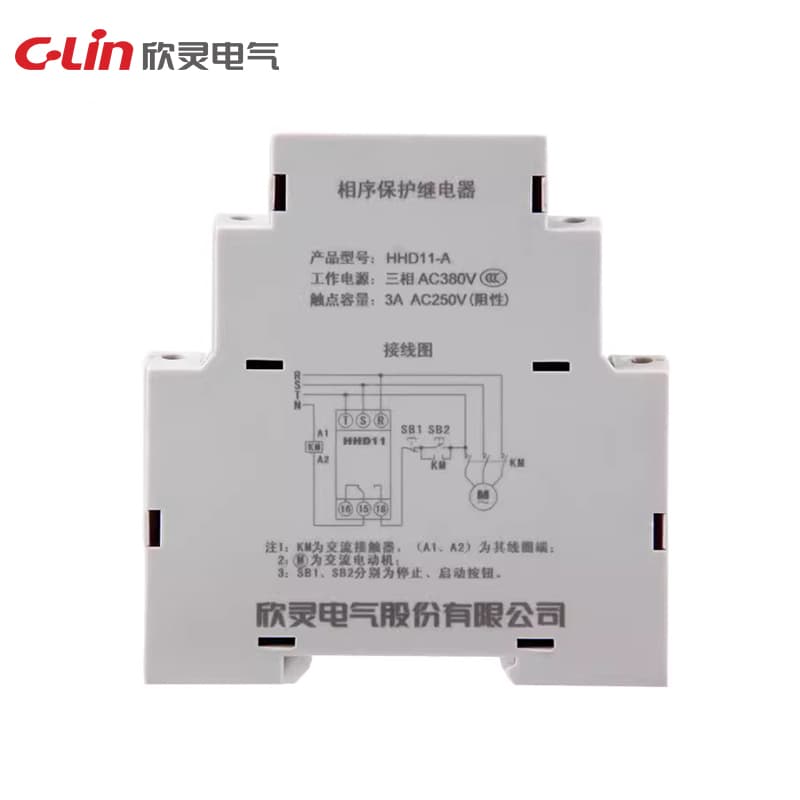

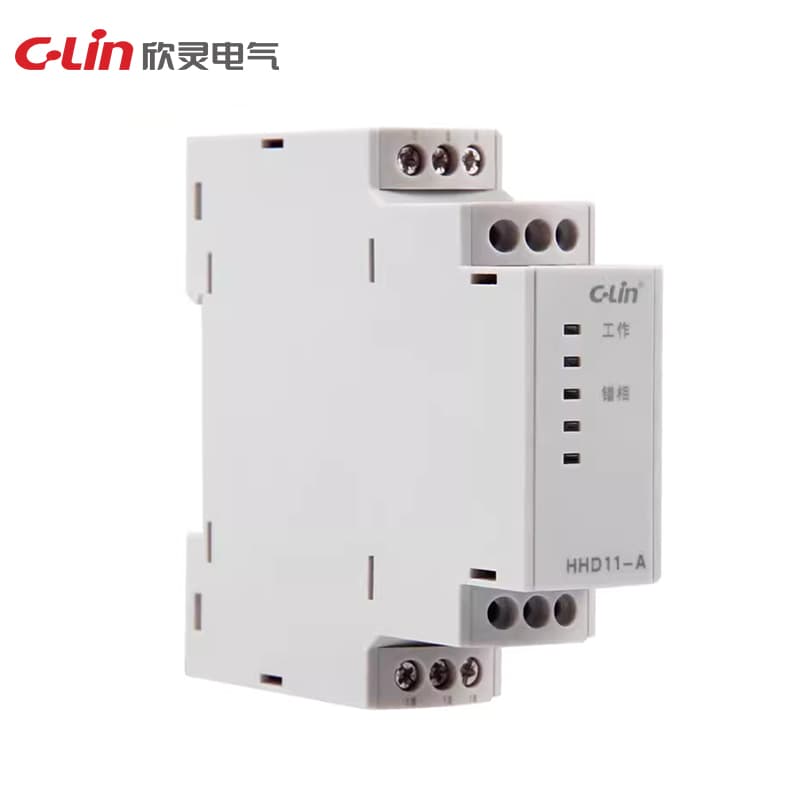

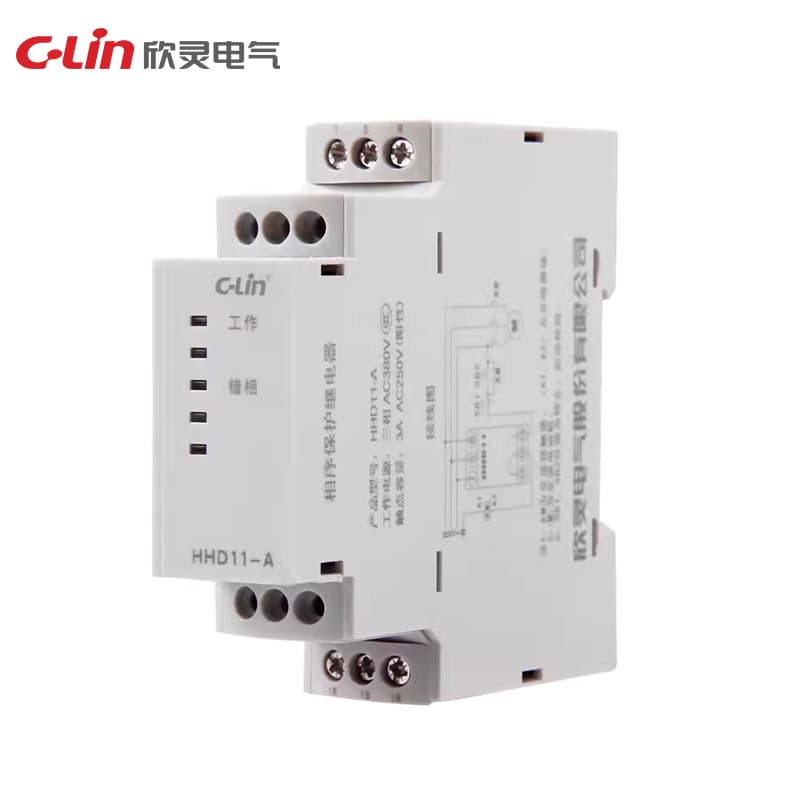

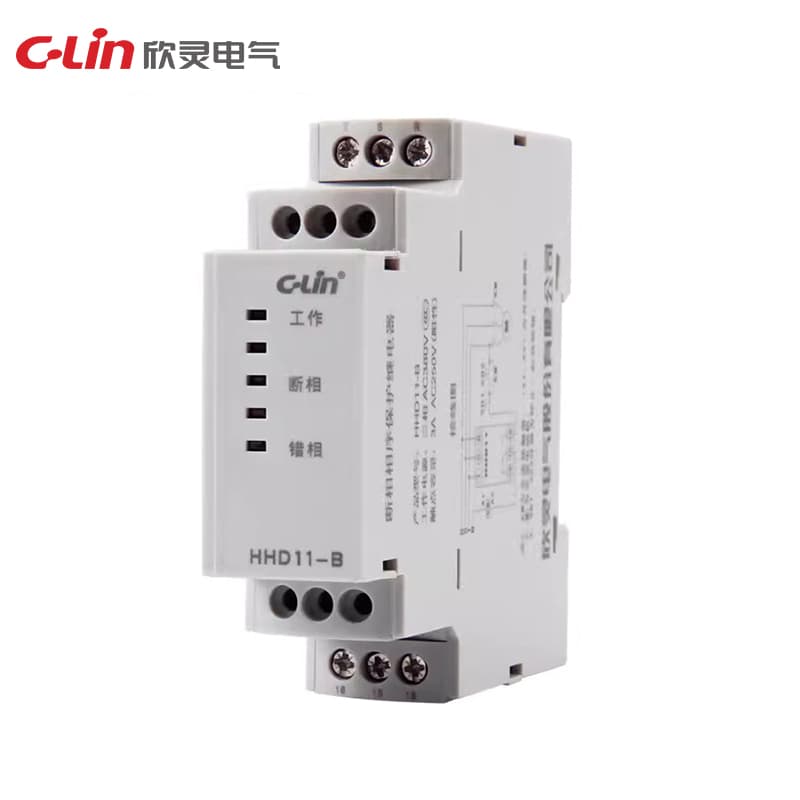

Over Voltage/under Voltage, Phase Failure, Phase Sequence Protection Relay HHD11 Series

Name: Over Voltage/under Voltage, Phase Failure, Phase Sequence Protection Relay HHD11 Series
Brand: C-Lin
SKU: HHD11-A

Model Number: HHD11-A

HHD11-AHHD11-C D

Working power supply: three-phase AC380V 50Hz Protection function: phase sequence protection Display mode: LED indicates working status Contact form: a set of normally open and normally closed contacts Contact capacity: 3A AC250V (resistive) Dimensions: 24.5×85.5×90.5mm Installation method: device type or 35mm guide rail type Note: HHD11-A phase sequence protector is suitable for elevator power phase sequence protection (replacement of market elevator phase sequence protector)

Request Quote

Technical Specifications

Model	HHD11-A
Dimension	24.5×85.5×90.5mm
Contact form	1 set of NO and NC contacts
Display mode	LED indicates work status
Supply voltage	Three-phase AC380V 50Hz
Contact capacity	3A AC250V(resistive)

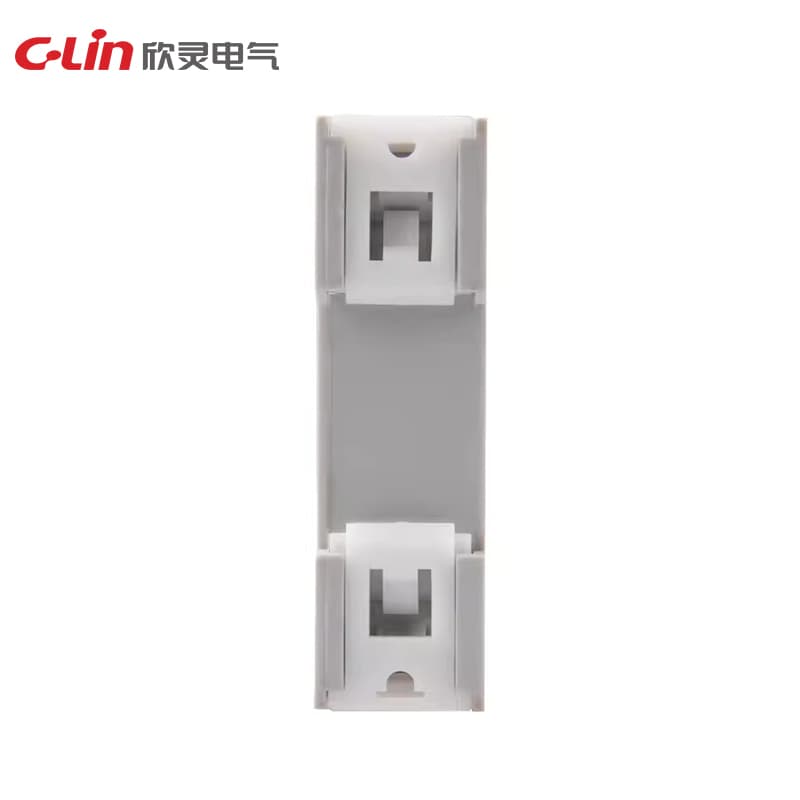

Installation method	Screw mounting type or 35mm DIN rail type
Protection function	Phase sequence protection
