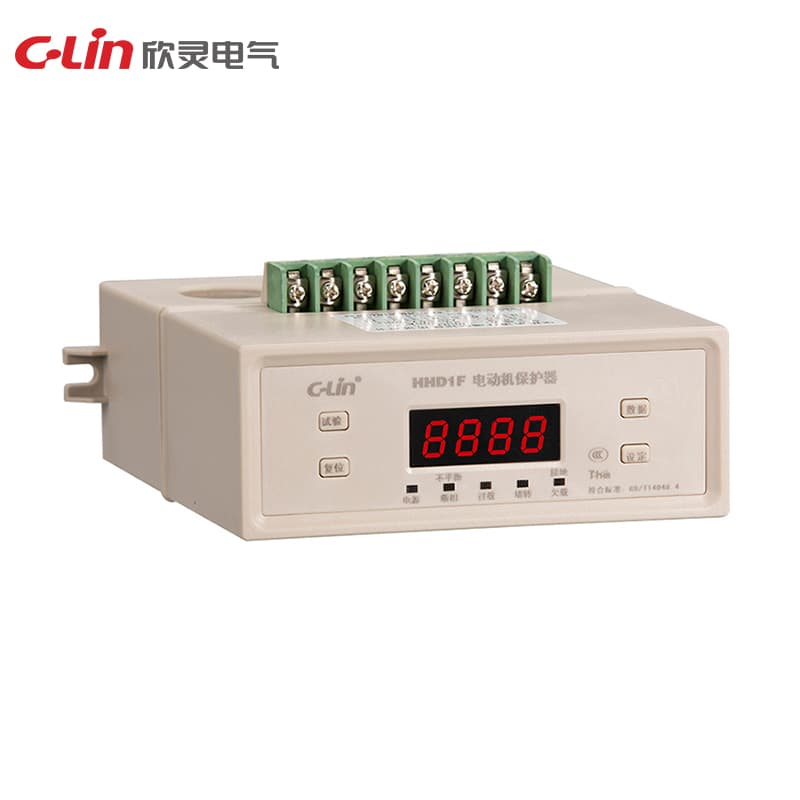

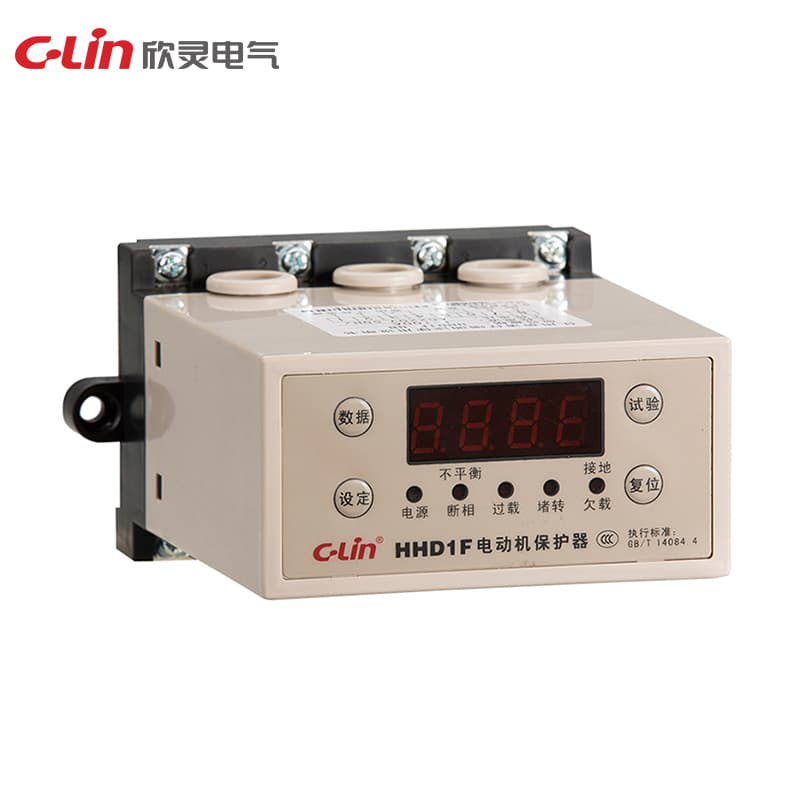

Motor Protector HHD1F Series

Name: Motor Protector HHD1F Series
Brand: C-Lin
SKU: HHD1F

Model Number: HHD1F

Working power supply: AC220V, AC380V 50Hz Current range: -A: 0.5~6.5A -B: 1~100A -C: 20~300A Protection function: start avoidance, phase failure, three-phase imbalance, overload (definite time/inverse time), stall, underload, grounding Display mode: LED digital tube displays the maximum phase current and fault status indication Display accuracy: 2.0 level Setting mode: button setting Reset mode: panel reset or power-off reset and automatic reset Contact form: a group of independent normally open and normall

Request Quote

Technical Specifications

Model	HHD1F
Dimension	125×71×120mm
Reset mode	Panel reset, power-off reset, and automatic reset
Contact form	1 set of independent NO and NC contacts
Display mode	LED displays max. phase current and fault status indication
Setting mode	Button setting
Current range	0.5~6.5A
Supply voltage	AC220V, AC380V 50Hz
Contact capacity	3A AC380V(resistive)
Display accuracy	Class 2.0
Optional feature	Grounding (code J requires dedicated zero-sequence transformer) or 4-20mA transmission output (code B)
Installation method	Compatible with both installation and 35mm DIN rail type
Protection function	Start avoidance, phase failure, three-phase imbalance, overload (definite/inverse time limit), locked rotor, underload, grounding
