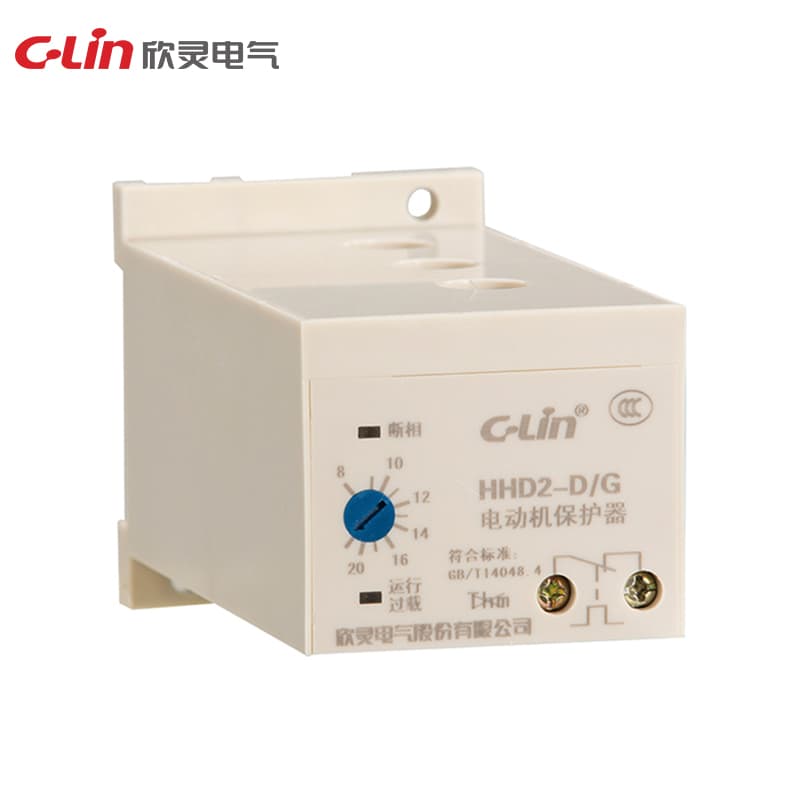

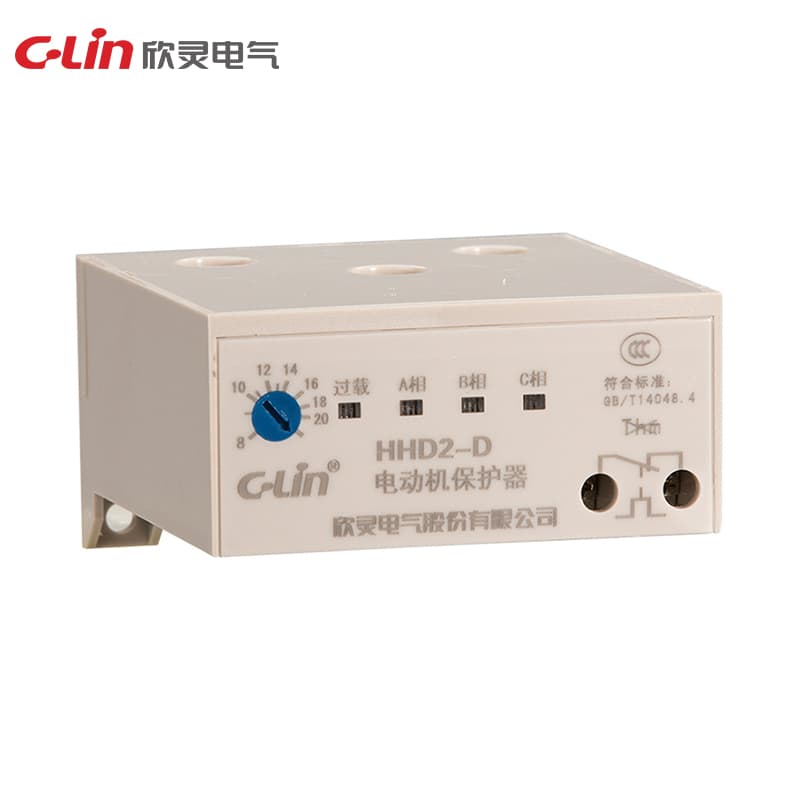

Motor Protector HHD2 Series

Model Number: HHD2-A

Current range: -A/G: 1~2.5A -B/G: 2~5A -C/G: 4~10A -D/G: 8~20A -E/G: 16~40A -F/G: 32~80A Protection function: phase failure, overload Setting method: static quantitative setting of potentiometer Display method: LED indicates working status Contact form: (solid-state switch) normally closed contact Contact capacity: 1A AC380V (resistive) Control circuit: working voltage AC220V and AC380V are common Installation method: compatible with device type and guide rail type
