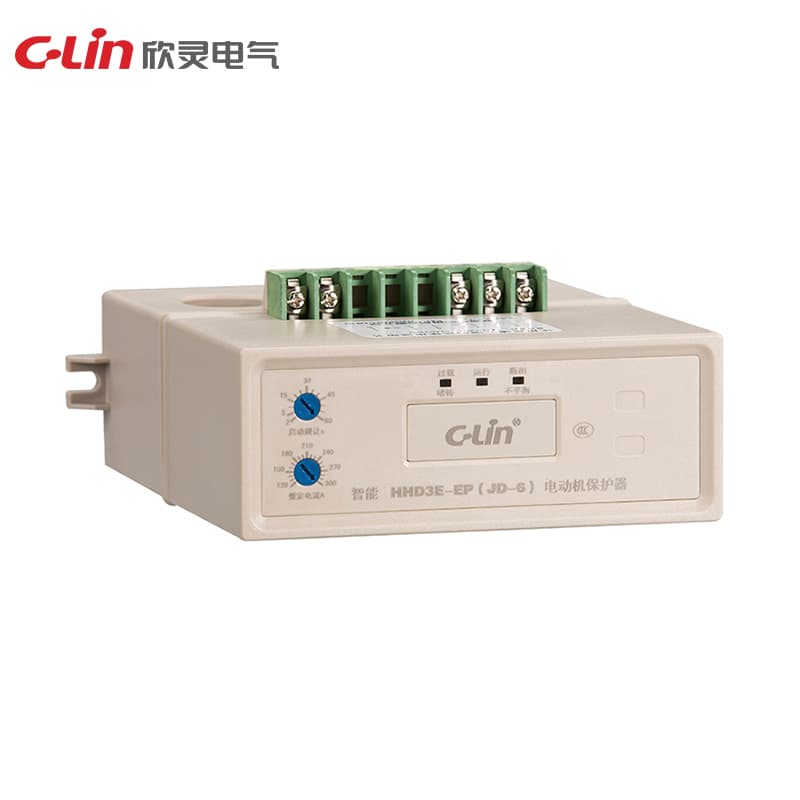

Motor Protector HHD3E Series

Name: Motor Protector HHD3E Series
Brand: C-Lin
SKU: HHD3E-EP

Model Number: HHD3E-EP

HHD3E-1P HHD3E-ATPL HHD3E-DP HHD3E-DPLHHD3E-EP

Working power supply: AC220V, AC380V 50Hz Current range: -1P: 0.2~1A; -2P: 0.4~2A; -ATP: 1~5A; -AP: 2~10A; -BP: 8~40A; -CP: 20~100A Protection function: phase failure, three-phase imbalance, overload, stall, start avoidance Display mode: LED indication status Setting mode: Static quantitative calibration of potentiometer Start avoidance: 2~60s continuously adjustable Reset mode: power off reset Contact form: one normally closed contact Contact capacity: 3A AC380V (resistive) Dimensions: 125×66×92mm Installa

Request Quote

Technical Specifications

Model	HHD3E-EP
Dimension	125×66×92mm
Reset mode	Power-off reset
Contact form	1 NC contact
Display mode	LED indicates working status
Setting mode	Static quantization setting of potentiometer
Current range	0.2~1A
DC meter head	Purchase separately
Supply voltage	AC220V, AC380V 50Hz
Start avoidance	2~60s continuously adjustable
Contact capacity	3A AC380V(resistive)
Installation method	Compatible with both installation and DIN rail type
Protection function	Phase failure, three-phase imbalance, overload locked rotor, start avoidance
