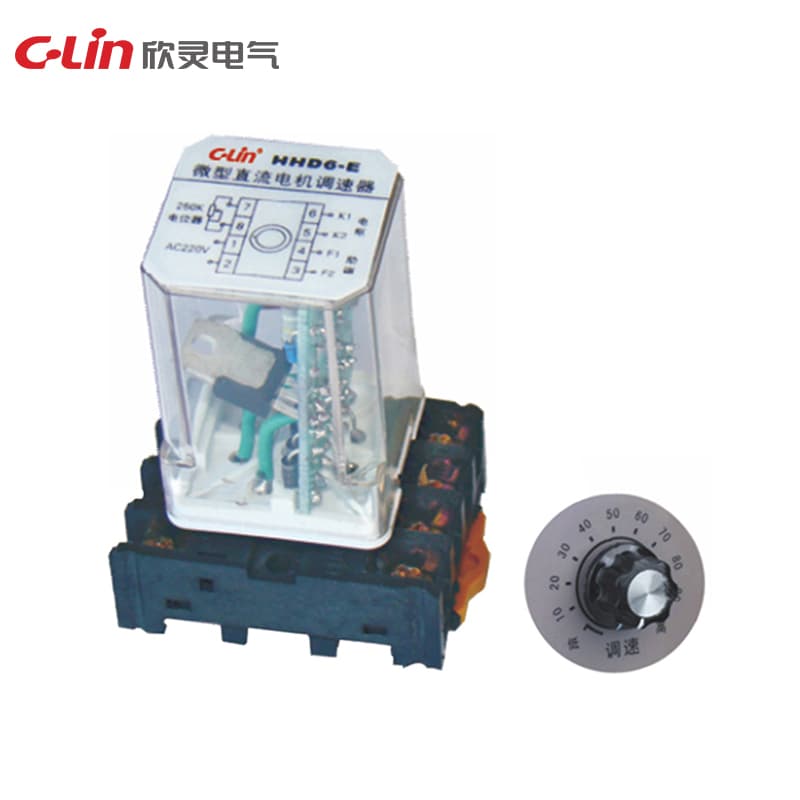

High-power DC Motor Speed Regulator HHD6 Series
Model Number: HHD6-E
HHD6-EHHD6-G
Working power supply: AC220V 50/60Hz Speed regulation power: below 60W Armature output: voltage DC0~200V Excitation output: voltage DC200V±10% Relative humidity: ≤90% Altitude: ≤1000 meters Dimensions: 41×55×74mm Installation method: 35mm guide rail Application: When used in two-wire motors, the excitation output line is not connected, only the armature line is connected
Request QuoteTechnical Specifications
| Model | HHD6-E |
| Dimension | 90×145×41mm |
| Application | When used in two-wire motor, the excitation output line is not connected, only the armature line is connected |
| Supply voltage | AC220V 50/60Hz |
| Relative humidity | ≤ 90% |
| Speed regulation power | 400W 1.8A; 1200W 5.5A |
| Armature output voltage | DC0~220V |
| Excitation output voltage | DC220V±10% |
