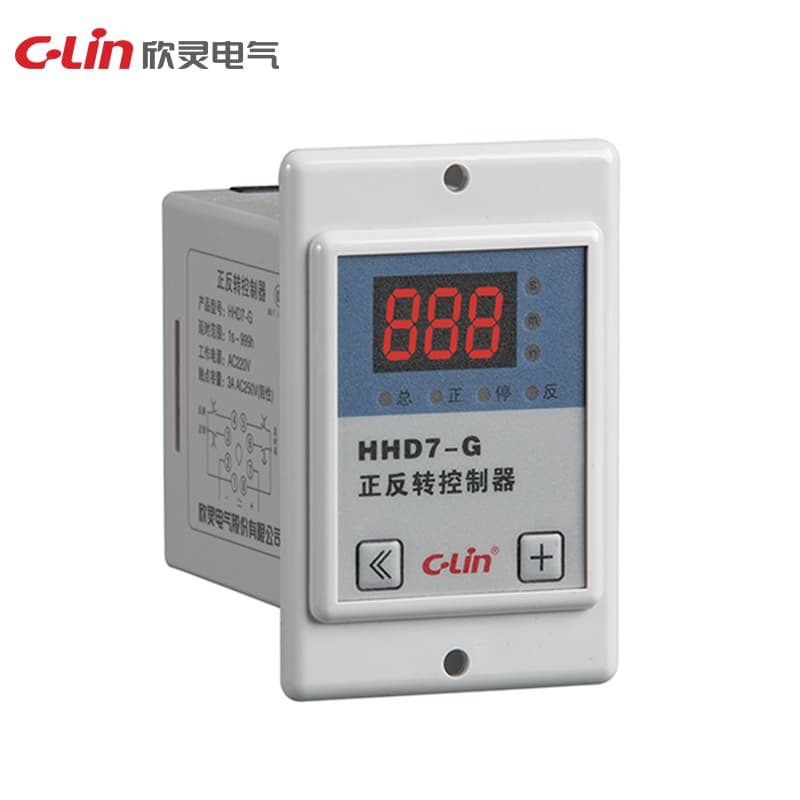

Forward And Reverse Controller HHD7 Series
Model Number: HHD7-G
Working power supply: AC24V, AC220V, AC380V 50Hz Delay range: -A: forward/reverse 15s stop 5s; -A1: forward/reverse 25s stop 5s Repeat error: ≤ 1% Working mode: forward → stop → reverse → stop → … Contact form: -A, -A1: two normally open contacts Contact capacity: 3A AC250V (resistive) Dimensions: HHD7-A: 65×77.5×72.5mm Installation method: device type
Request QuoteTechnical Specifications
| Model | HHD7-G |
| Dimension | 65×77.5×72.5mm |
| Delay range | -A: Forward/reverse: 15s, stop 5s -A1: Forward/reverse 25s, stop 5s |
| Contact form | 2 NO contacts |
| Repeat error | ≤ 1% |
| Operation mode | Forward rotation → stop → reverse → stop → …… |
| Supply voltage | AC24V, AC220V, AC380V 50Hz |
| Contact capacity | 3A AC250V(resistive) |
| Installation method | Screw mounting type |
