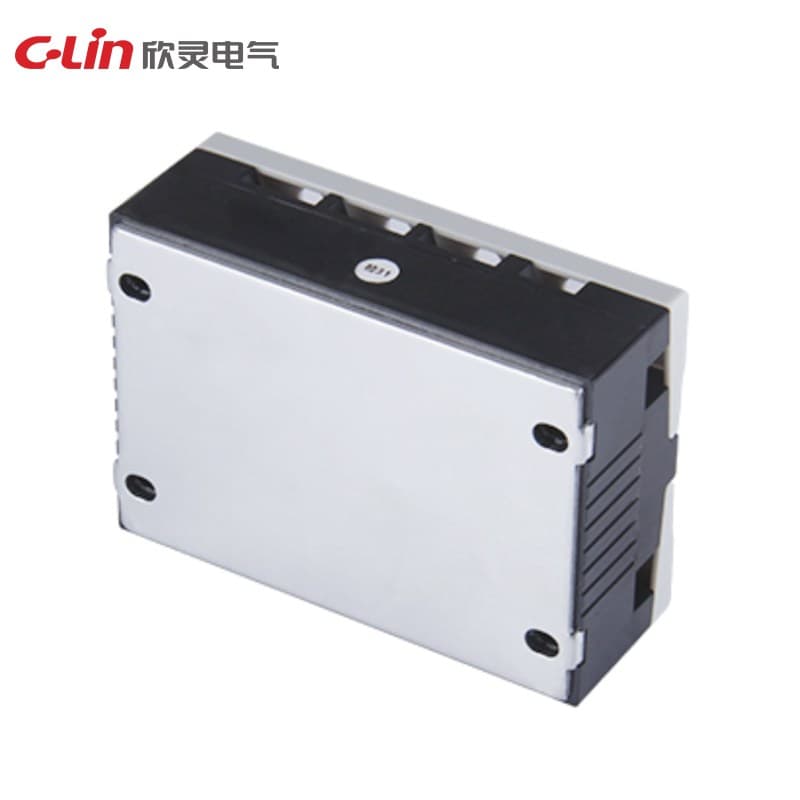

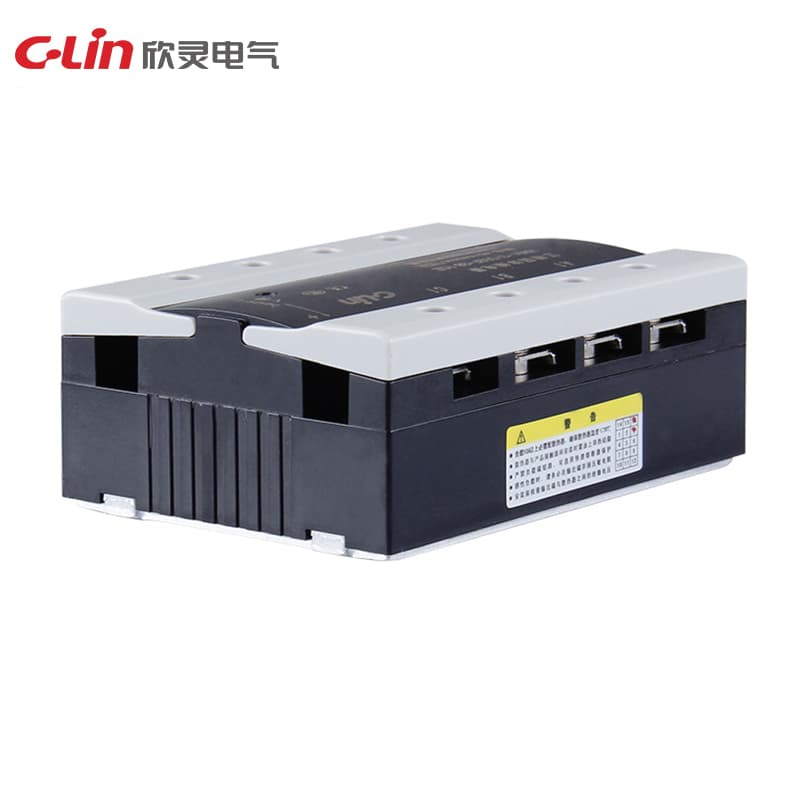

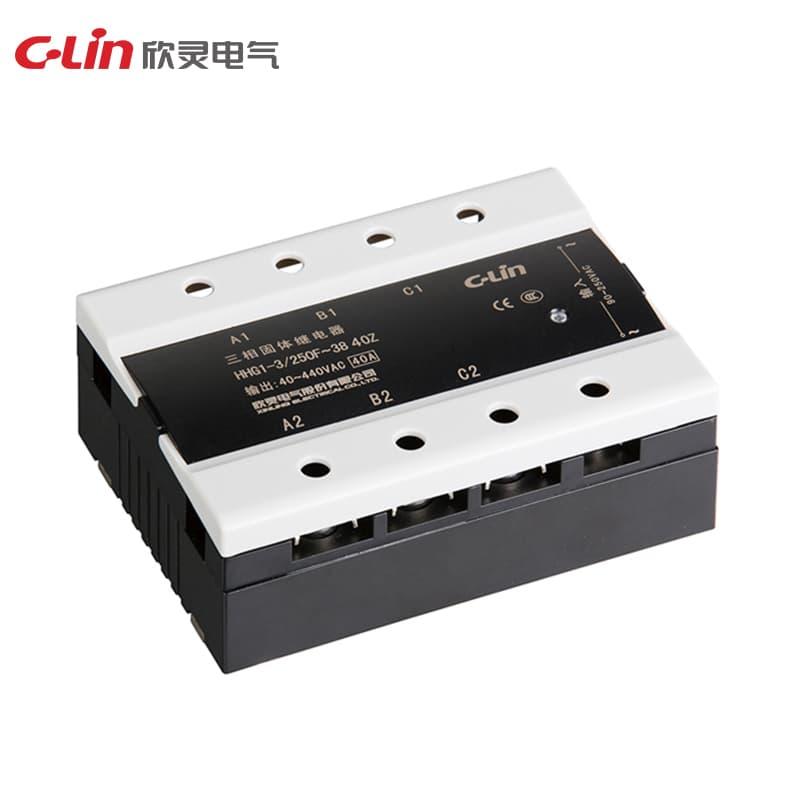

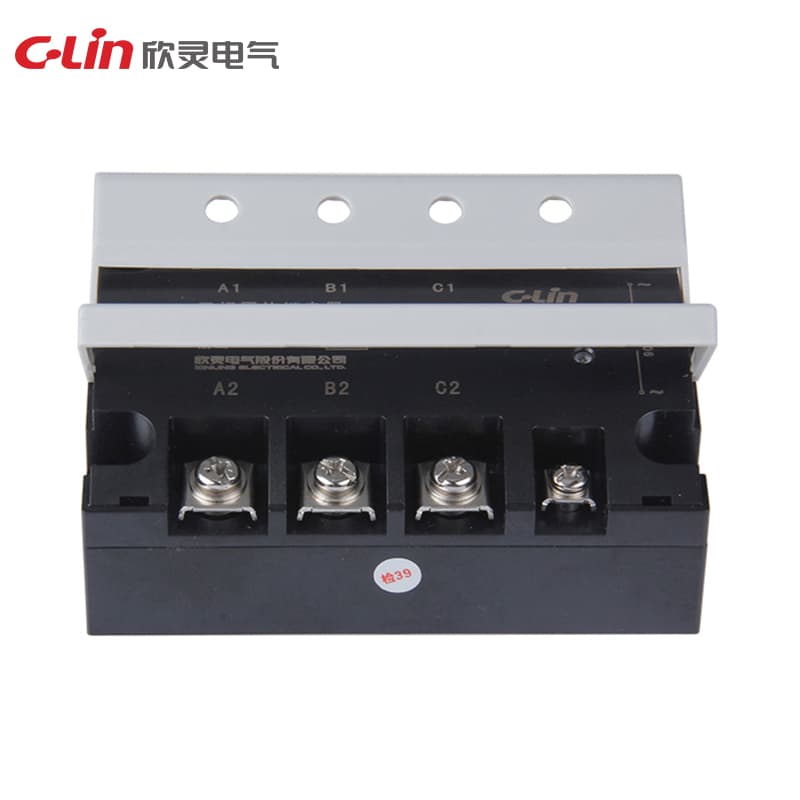

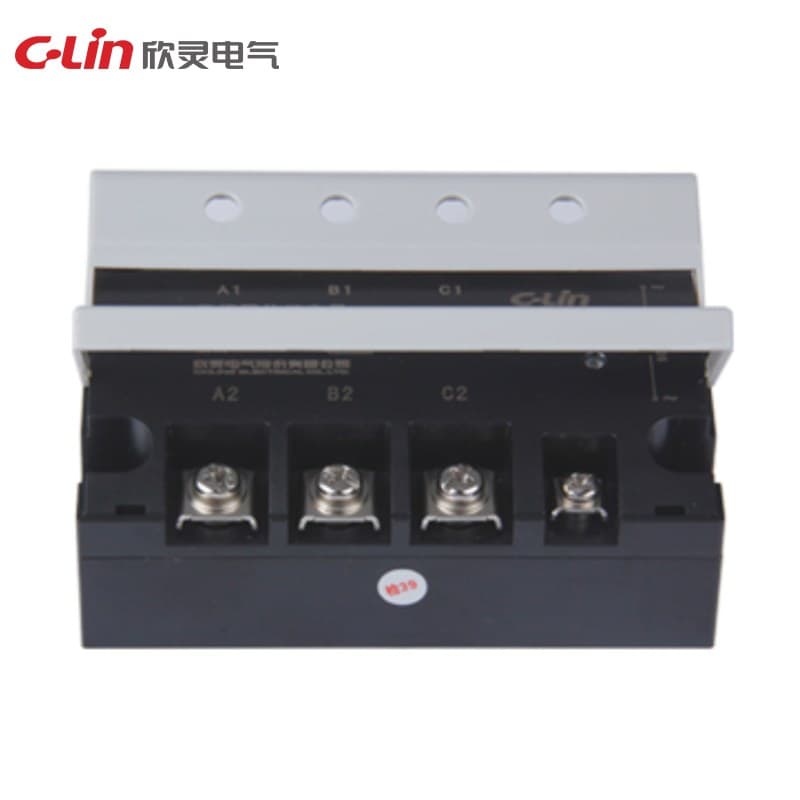

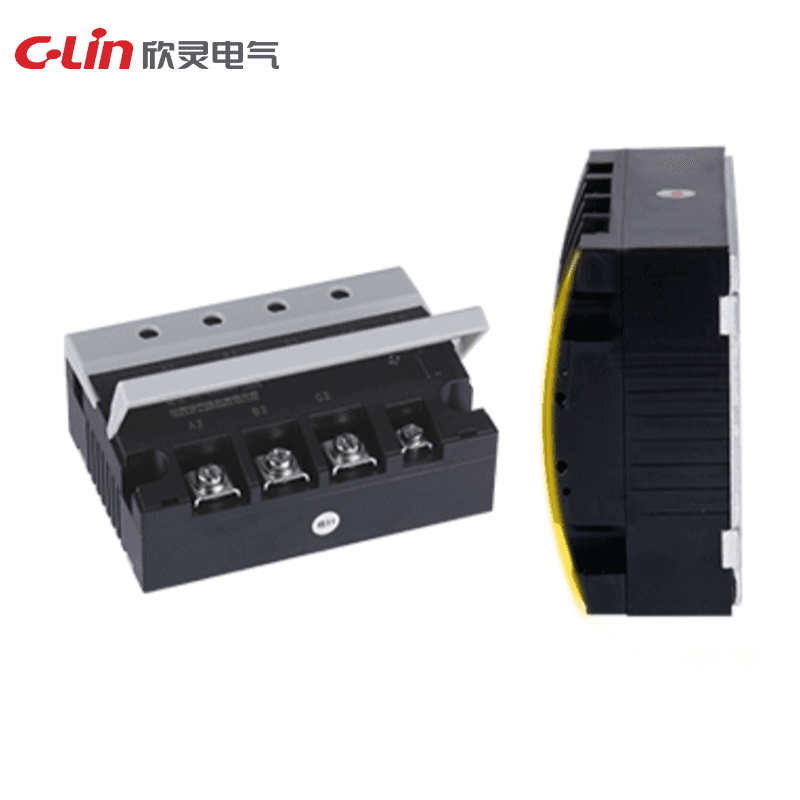

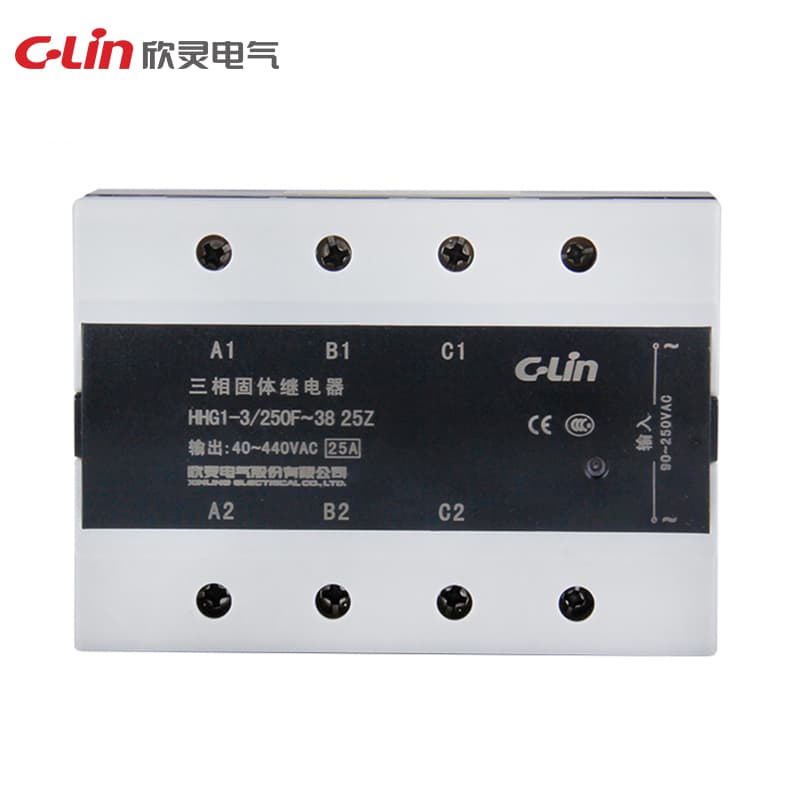

Solid-State Relay HHG1 Series

Name: Solid-State Relay HHG1 Series
Brand: C-Lin
SKU: HHG1-3/250F-38

Model Number: HHG1-3/250F-38

HHG1-0/032F-20 HHG1-1/032F-38 HHG1-1/032F-38 1A HHG1-1/032F-38 2-4A HHG1-1/032F-38 5A HHG1-1/250F-22 HHG1-2/032F-38 HHG1-3/032F-38HHG1-3/250F-38

Control voltage: 5-32VDC Control current: 10-45mA Load voltage: 20: 12-250VDC Load current: 10A, 15A, 20A, 25A, 30A, 40A, 60A On-state voltage drop: DC≤ 1.2VDC On-off time: DC≤ 5ms Off-state leakage current DC≤ 5mA Dielectric withstand voltage: ≥ 2000VAC Ambient temperature: -30~80℃ Dimensions: 60×45×29mm Installation form: Bolt installation Description: Loads above 10A must be equipped with a heat sink

Request Quote

Technical Specifications

Model	HHG1-3/250F-38
Dimension	34×26.5×18mm
Instruction	Installed next to well ventilated heat dissipation window
On-off time	DC ≤ 5ms AC ≤ 10ms
Load current	2A, 3A, 4A
Load voltage	20: 12-250VDC
Ambient temp.	-30~80°C
Control current	6-25mA
Control voltage	3-32VDC
Installation form	Dual line direct plug-in
Dielectric strength	≥ 1500VAC
On-state voltage drop	DC ≤ 1.2V AC ≤ 1.6VAC
Off-state leakage current	DC ≤ 5mA AC ≤ 10mA
