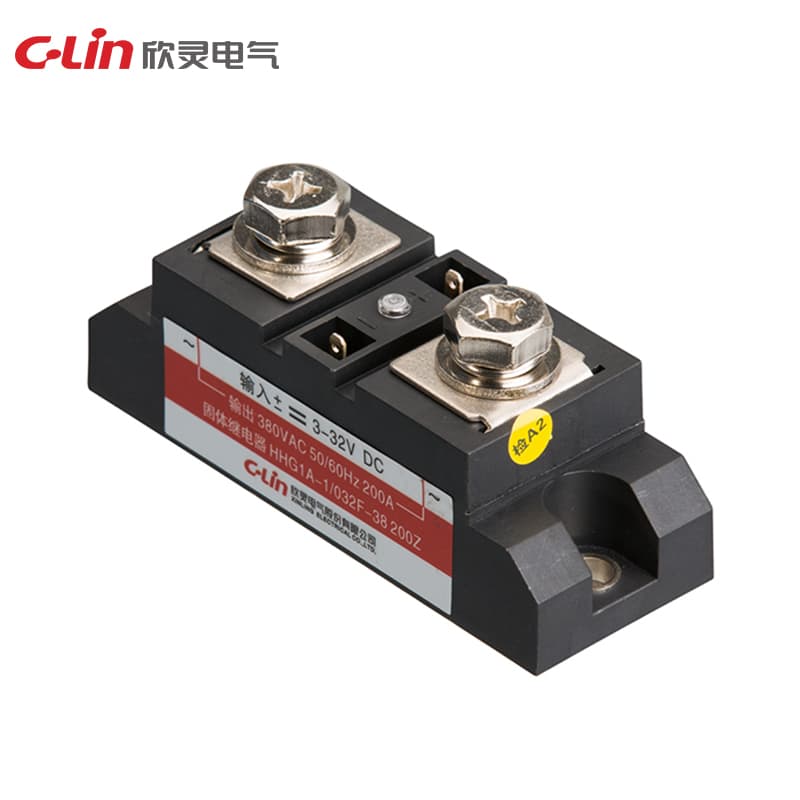

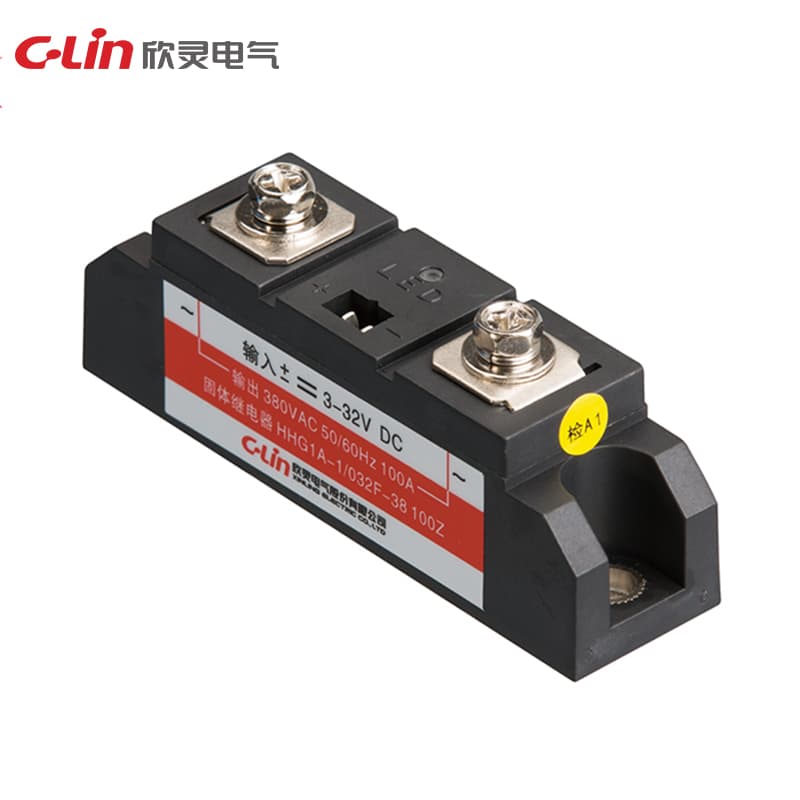

Industrial Grade Solid-State Relay HHG1A Series

Name: Industrial Grade Solid-State Relay HHG1A Series
Brand: C-Lin
SKU: HHG1A-1/032F-38

Model Number: HHG1A-1/032F-38

Control voltage: 3-32VDC Control current: 5-25mA Load voltage: 38:40-440VAC Load current: 60A, 80A, 100A, 120A, 150A, 200A, 250A, 300A, 350A, 400A On-state voltage drop: AC≤ 1.6VAC On-off time: AC≤ 10ms Off-state leakage current: AC≤ 10mA Dielectric withstand voltage: ≥ 2500VAC Ambient temperature: -30~80℃ Installation form: Bolt installation Description: Loads above 5A must be equipped with a radiator Loads above 80A must be cooled by fans or water

Request Quote

Technical Specifications

Model	HHG1A-1/032F-38
Dimension	（60-150A）94×25×38mm （200-350A）94×34×43mm （400A）95×39×43mm
Instruction	A radiator must be installed for loads above 5A; a fan of strong cooling or water cooling must be added for loads above 80A
On-off time	AC ≤ 10ms
Load current	60A, 80A, 100A, 120A, 150A, 200A, 250A, 300A, 350A, 400A
Load voltage	38: 40-440VAC
Ambient temp.	-30~80°C
Control current	5-25mA
Control voltage	3-32VDC
Installation form	Bolt installation
Dielectric strength	≥ 2500VAC
On-state voltage drop	AC ≤ 1.6VAC
Off-state leakage current	AC ≤ 10mA
