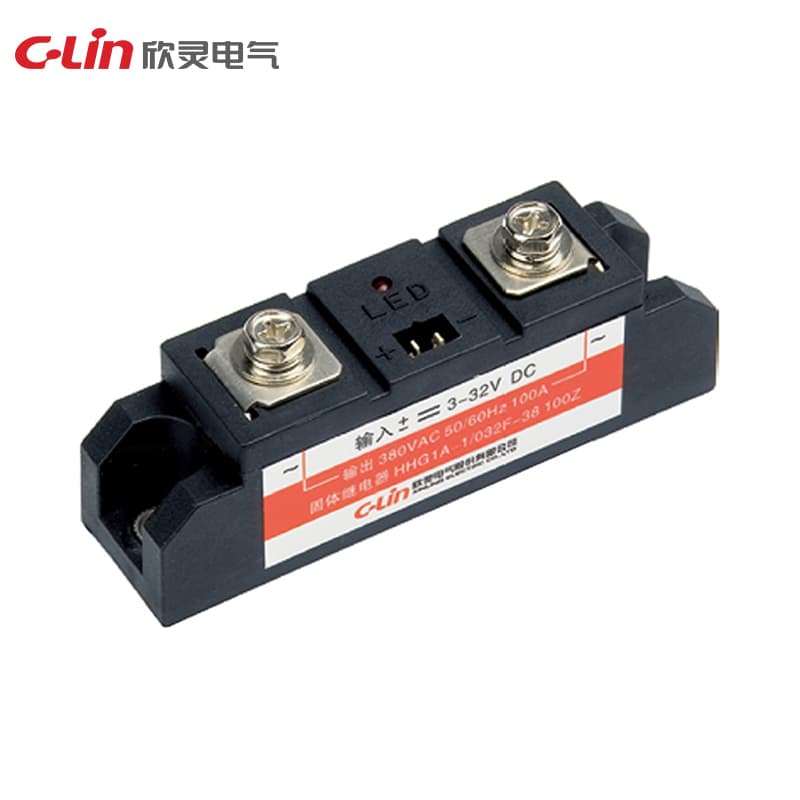

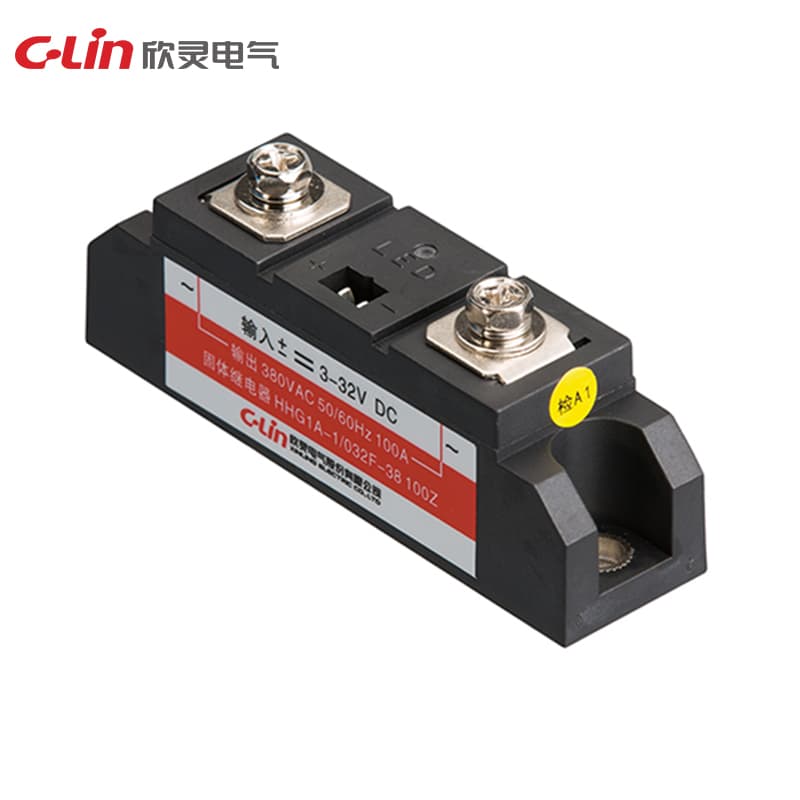

Industrial Grade Solid-State Relay HHG1C Series

Name: Industrial Grade Solid-State Relay HHG1C Series
Brand: C-Lin
SKU: HHG1C

Model Number: HHG1C

Control voltage: 3-32VDC Control current: 5-25mA Load voltage: 120: 60-1200VAC Load current: 60A, 80A, 100A, 120A, 150A, 200A, 250A, 300A, 350A, 400A On-state voltage drop: AC≤1.6VAC On-off time: AC≤10ms Off-state leakage current: AC≤10mA Dielectric withstand voltage: ≥2500VAC Ambient temperature: -30~80℃ Installation form: Bolt installation Description: Loads above 5A must be equipped with a radiator Loads above 80A must be cooled by fans or water

Request Quote

Technical Specifications

Model	HHG1C
Dimension	（60-150A）94×25×38mm （200-350A）94×34×43mm （400A）95×39×43mm

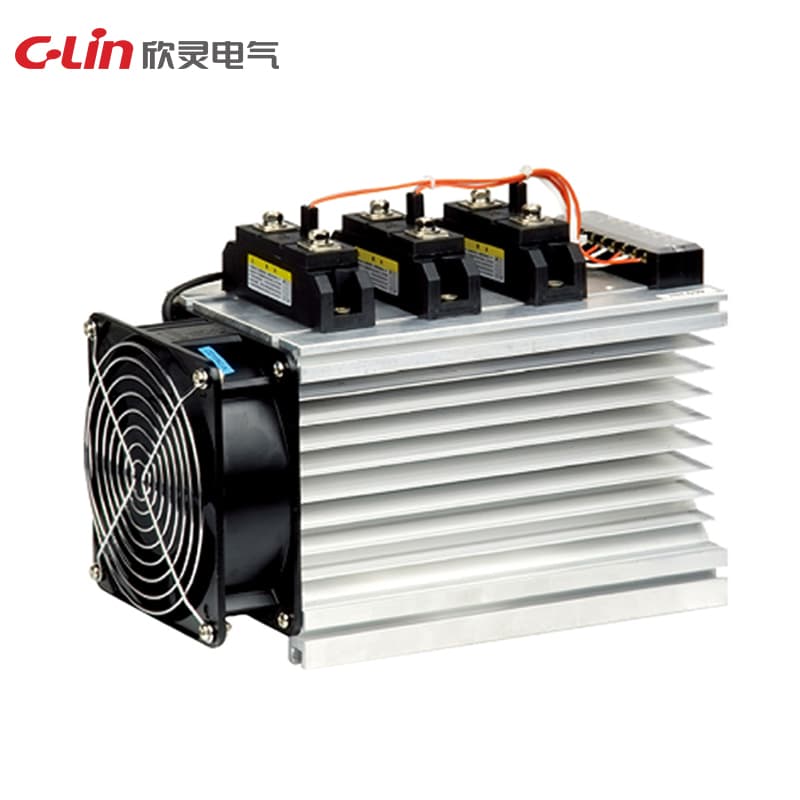

Instruction	A radiator must be installed for loads above 5A; a fan of strong cooling or water cooling must be added for loads above 80A
On-off time	AC ≤ 10ms
Load current	60A, 80A, 100A, 120A, 150A, 200A, 250A, 300A, 350A, 400A
Load voltage	120: 60-1200VAC
Ambient temp.	-30~80°C
Control current	5-25mA
Control voltage	3-32VDC
Installation form	Bolt installation
Dielectric strength	≥ 2500VAC
On-state voltage drop	AC ≤ 1.6VAC
Off-state leakage current	AC ≤ 10mA
