C-Lin

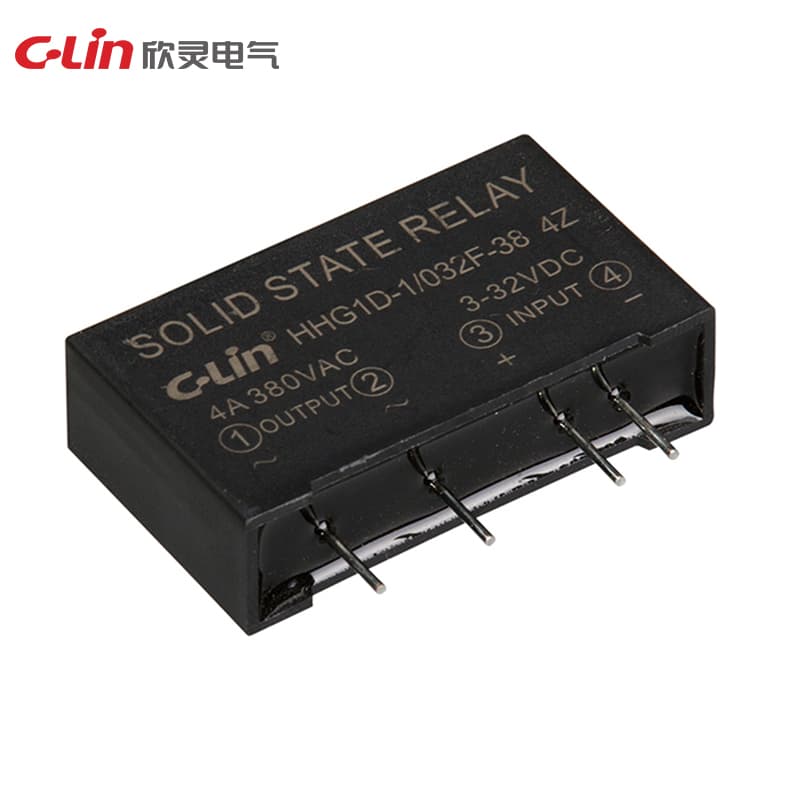

Solid-State Relay HHG1D Series
Model Number: HHG1D-1/032F-22
HHG1D-1/032F-22HHG1D-1/032F-38
Control voltage: 3-32VDC Control current: 6-25mA Load voltage: 22: 24-240VAC, 38: 24-440VAC Load current: 3A, 4A On-state voltage drop: AC≤1.6VAC On-off time: AC≤10ms Off-state leakage current AC≤10mA Dielectric withstand voltage: ≥ 1500VAC Ambient temperature: -30~80℃ Dimensions: 43×12×25.5mm Installation form: single in-line plug-in Description: Install next to the heat dissipation window with good ventilation
Request QuoteTechnical Specifications
| Model | HHG1D-1/032F-22 |
| Dimension | 43×12×34mm |
| Instruction | Installed next to well ventilated heat dissipation window |
| On-off time | AC ≤ 10ms |
| Load current | 5A (with heat dissipation plate) |
| Load voltage | 22: 24-240VAC 38: 24-440VAC |
| Ambient temp. | -30~80°C |
| Control current | 6-25mA |
| Control voltage | 3-32VDC |
| Installation form | Single line direct plug-in |
| Dielectric strength | ≥ 1500VAC |
| On-state voltage drop | AC ≤ 1.6VAC |
| Off-state leakage current | AC ≤ 10mA |
