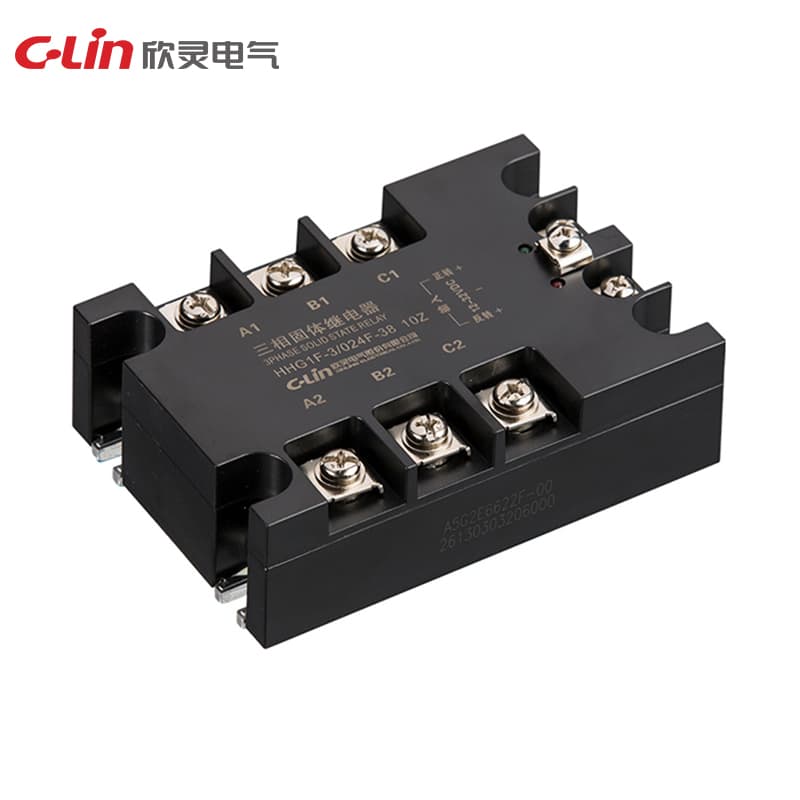

Three-Phase Forward And Reverse Solid-State Relay HHG1F Series

Name: Three-Phase Forward And Reverse Solid-State Relay HHG1F Series
Brand: C-Lin
SKU: HHG1F-3/005F-38

Model Number: HHG1F-3/005F-38

Control voltage: 5VDC Control current: ≤50mA Load voltage: 40-440VAC Load current: 10A, 15A, 20A, 25A, 30A, 40A On-state voltage drop: AC≤ 1.6VAC Control protection: 100ms positive and negative interlock delay at input end Off-state leakage current: AC≤10mA Dielectric withstand voltage: ≥2500VAC Ambient temperature: -30~80℃ Dimensions: 106×75×41mm Installation form: Bolt installation Description: A heat sink must be installed for loads above 5A Fan forced cooling or water cooling must be added for loads abo

Request Quote

Technical Specifications

Model	HHG1F-3/005F-38
Dimension	106×75×41mm
Instruction	A radiator must be installed for loads above 5A; a fan of strong cooling or water cooling must be added for loads above 80A
On-off time	Input terminal forward and reverse interlock delay of 100ms
Load current	10A, 15A, 20A, 25A, 30A, 40A
Load voltage	40-440VAC
Ambient temp.	-30~80°C
Control current	≤ 50mA
Control voltage	5VDC
Installation form	Bolt installation
Dielectric strength	≥ 2500VAC
On-state voltage drop	AC ≤ 1.6VAC
Off-state leakage current	AC ≤ 10mA
