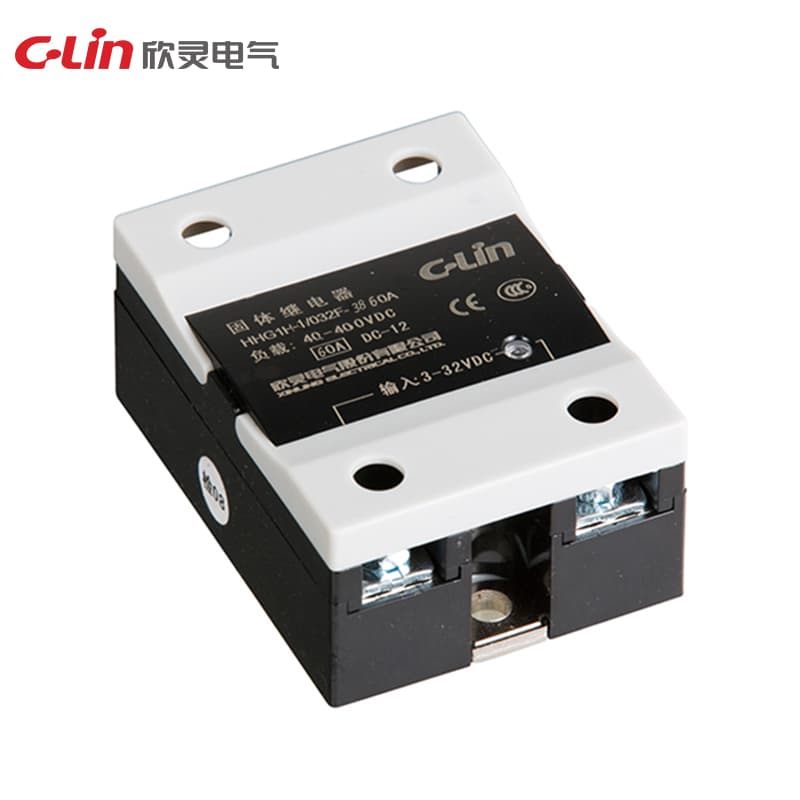

Single-Phase Thyristor Anti-Parallel Solid-State Relay HHG1H Series

Name: Single-Phase Thyristor Anti-Parallel Solid-State Relay HHG1H Series
Brand: C-Lin
SKU: HHG1H-1/032F-38

Model Number: HHG1H-1/032F-38

Control voltage: 3-32VDC Control current: 6-25mA Load voltage: 38: 24-440VAC, 120: 40-1200VAC Load current: 60A, 80A, 100A, 120A On-state voltage drop: AC≤ 1.6VAC On-off time: AC≤ 10ms Off-state leakage current AC≤ 10mA Dielectric withstand voltage: ≥ 2500VAC Ambient temperature: -30~80℃ Dimensions: 60×45×29mm Installation form: Bolt installation Note: Loads above 5A must be equipped with a radiator; Loads above 80A must be cooled by fans or water

Request Quote

Technical Specifications

Model	HHG1H-1/032F-38
Dimension	60×45×29mm
Instruction	A radiator must be installed for loads above 5A; a fan of strong cooling or water cooling must be added for loads above 80A
On-off time	AC≤ 10ms
Load current	60A, 80A, 100A, 120A
Load voltage	38: 24-440VAC 120: 40-1200VAC
Ambient temp.	-30~80°C
Control current	6-25mA
Control voltage	3-32VDC
Installation form	Bolt installation
Dielectric strength	≥ 2500VAC
On-state voltage drop	AC ≤ 1.6VAC
Off-state leakage current	AC ≤ 10mA
