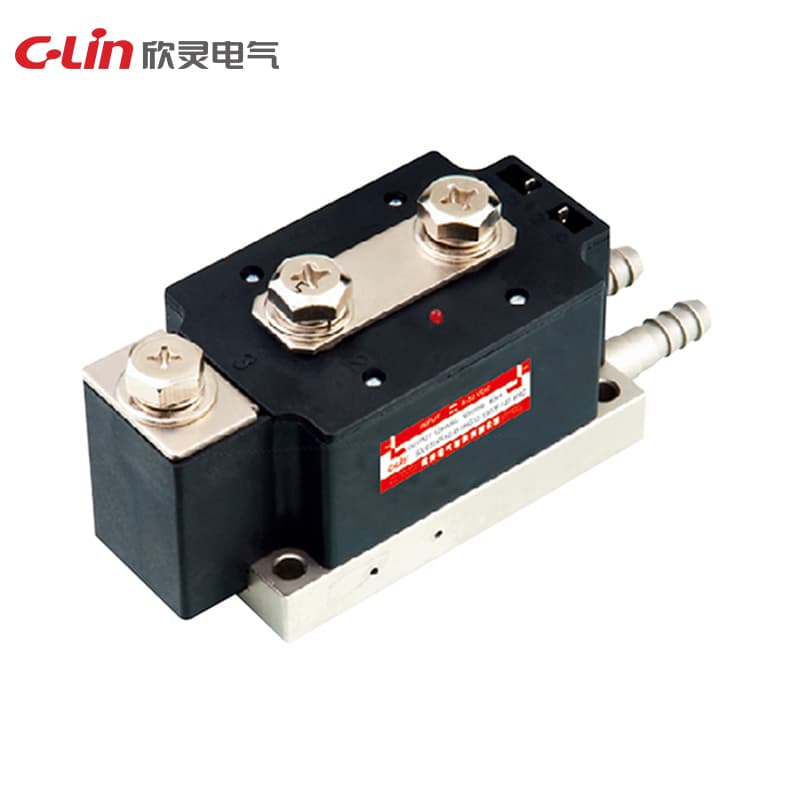

Industrial Grade Solid-State Relay HHG1S Series

Name: Industrial Grade Solid-State Relay HHG1S Series
Brand: C-Lin
SKU: HHG1S-1/032F-120

Model Number: HHG1S-1/032F-120

Control voltage: 3-32VDC Control current: 5-25mA Load voltage: 120: 60-1200VAC Load current: 500A, 600A, 800A, 1000A On-state voltage drop: AC＜1.6VAC On-off time: AC≤10ms Off-state leakage current AC≤10mA Dielectric withstand voltage: ≥2500VAC Ambient temperature: -30~80℃ Dimensions: 500-600A: 150×53×68mm 800A: 160×63×75mm 1000A: 185×66×81mm Installation form: Bolt installation Description: Loads above 5A must be equipped with a radiator Loads above 80A must be equipped with fan forced cooling or water cool

Request Quote

Technical Specifications

Model	HHG1S-1/032F-120
Dimension	500-600A: 150×53×68mm 800A: 160×63×75mm 1000A: 185×66×81mm
Instruction	A radiator must be installed for loads above 5A; a fan of strong cooling or water cooling must be added for loads above 80A
On-off time	AC≤ 10ms
Load current	500A, 600A, 800A, 1000A
Load voltage	120: 60-1200VAC
Ambient temp.	-30~80°C
Control current	5-25mA
Control voltage	3-32VDC
Installation form	Bolt installation
Dielectric strength	≥ 2500VAC
On-state voltage drop	AC ≤ 1.6VAC
Off-state leakage current	AC ≤ 10mA
