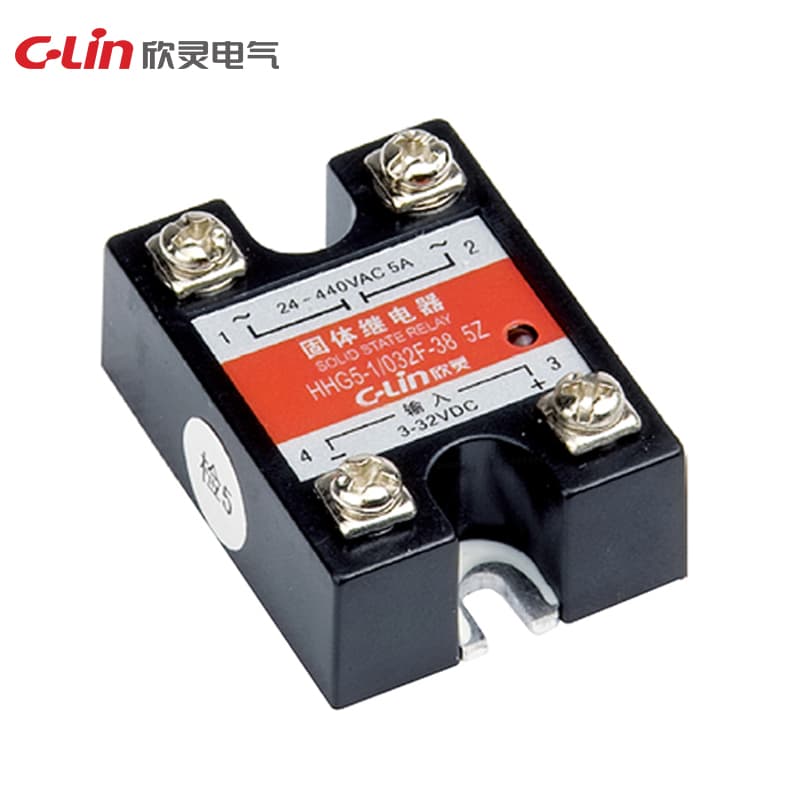

Small Volume Solid-State Relay HHG5 Series

Name: Small Volume Solid-State Relay HHG5 Series
Brand: C-Lin
SKU: HHG5-1/032F-38

Model Number: HHG5-1/032F-38

Control voltage: 3-32VDC Control current: 6-25mA Load voltage: 22: 24-240VAC, 38: 24-440VAC Load current: 5A, 10A, 15A On-state voltage drop: AC≤1.6VAC On-off time: AC≤10ms Off-state leakage current: AC≤10mA Dielectric withstand voltage: ≥2500VAC Ambient temperature: -30~80℃ Dimensions: 38.5×28.7×18mm Installation form: Bolt installation Description: A heat sink must be installed for loads above 5A

Request Quote

Technical Specifications

Model	HHG5-1/032F-38
Dimension	38.5×28.7×18mm
Instruction	A radiator must be installed for loads above 5A
On-off time	AC≤ 10ms
Load current	5A, 10A, 15A
Load voltage	22: 24-240VAC 38: 24-440VAC
Ambient temp.	-30~80°C
Control current	6-25mA
Control voltage	3-32VDC
Installation form	Bolt installation
Dielectric strength	≥ 2500VAC
On-state voltage drop	AC ≤ 1.6VAC
Off-state leakage current	AC ≤ 10mA
