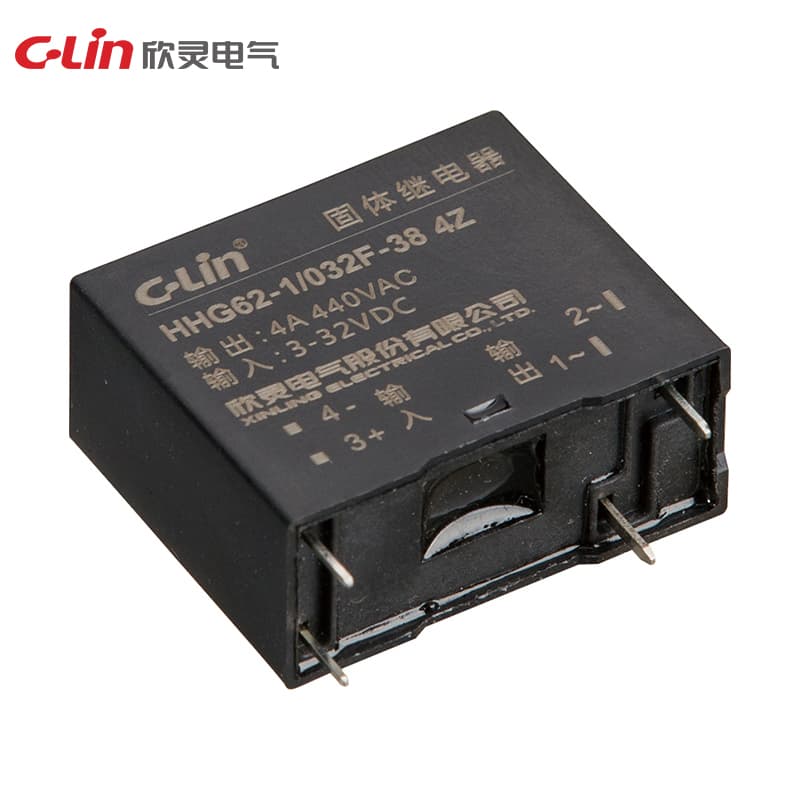

Solid-State Relay HHG62 Series

Name: Solid-State Relay HHG62 Series
Brand: C-Lin
SKU: HHG62-1/032F-38

Model Number: HHG62-1/032F-38

Control voltage: 3-32VDC Control current: 5-25mA Load voltage: 22: 24-240VAC, 38: 24-440VAC Load current: 1A, 2A, 3A, 4A On-state voltage drop: AC≤1.6VAC Control protection: AC≤10ms Off-state leakage current: AC≤10ms Dielectric withstand voltage: ≥ 1500VAC Ambient temperature: -30~80℃ Dimensions: 29×12.6×28mm Installation form: DIP, guide rail installation Description: Install next to a heat dissipation window with good ventilation Note: Adapter socket RX78624

Request Quote

Technical Specifications

Model	HHG62-1/032F-38
Dimension	29×12.6×28mm
Instruction	Installed next to well ventilated heat dissipation window
On-off time	AC≤ 5ms
Load current	1A, 2A, 3A, 4A
Load voltage	22: 24-240VAC 38: 24-440VAC 20: 12-200VDC
Ambient temp.	-30~80°C
Control current	5-25mA
Control voltage	3-32VDC
Installation form	Dual line direct plug-in and DIN rail installation
Dielectric strength	≥ 1500VAC
On-state voltage drop	AC ≤ 1.2VAC
Off-state leakage current	AC ≤ 5mA
