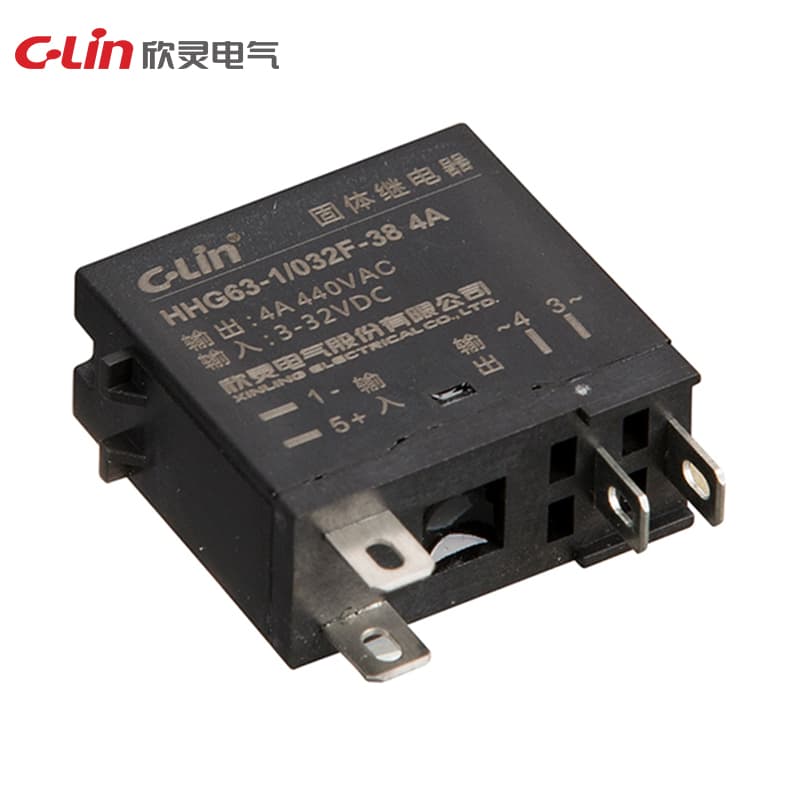

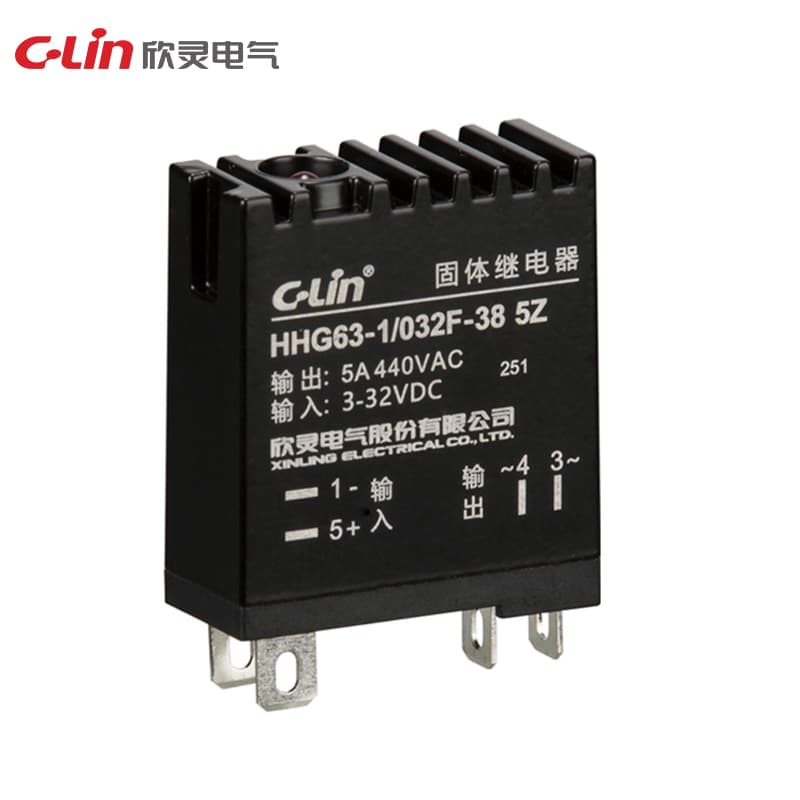

Solid-State Relay HHG63 Series

Name: Solid-State Relay HHG63 Series
Brand: C-Lin
SKU: HHG63-1/032F-38

Model Number: HHG63-1/032F-38

Control voltage: 3-32VDC Control current: 5-25mA Load voltage: 22: 24-240VAC, 38: 24-440VAC Load current: 1A, 2A, 3A, 4A, 5A On-state voltage drop: AC≤1.6VAC Control protection: AC≤10ms Off-state leakage current: AC≤10mA Ambient temperature: -30~80℃ Installation form: DIP, guide rail installation Description: Install next to the heat dissipation window with good ventilation

Request Quote

Technical Specifications

Model	HHG63-1/032F-38
Dimension	30.6×12.8×33mm
Instruction	Installed next to well ventilated heat dissipation window
On-off time	AC≤ 10ms
Load current	1A, 2A, 3A, 4A
Load voltage	22: 24-240VAC 38: 24-440VAC 20: 12-200VDC
Ambient temp.	-30~80°C
Control current	5-25mA
Control voltage	3-32VDC
Installation form	Dual line direct plug-in and DIN rail installation
Dielectric strength	≥ 2500VAC
On-state voltage drop	AC ≤ 1.6VAC
Off-state leakage current	AC ≤ 10mA
