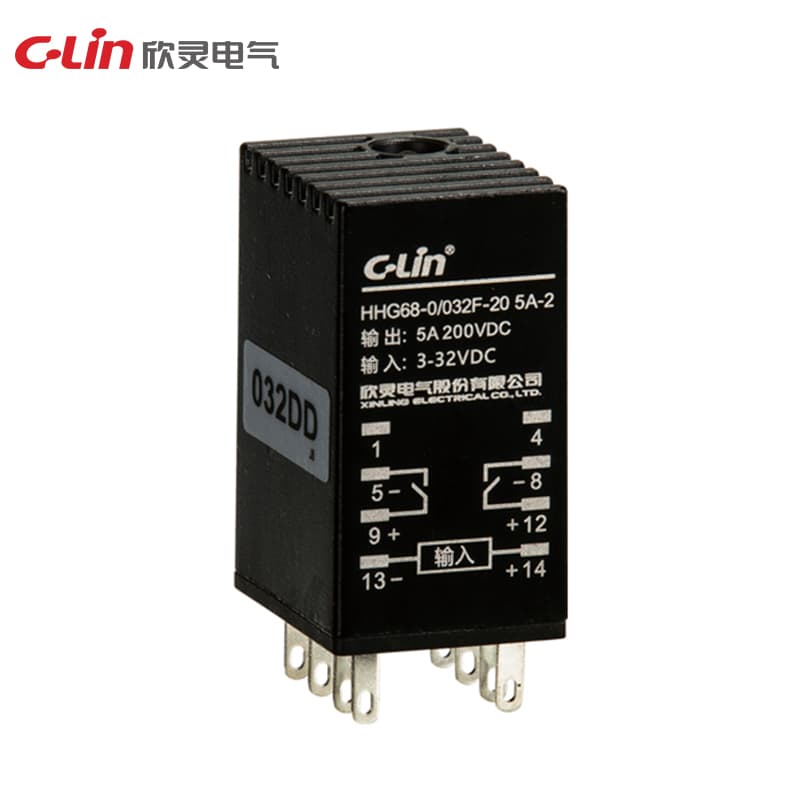

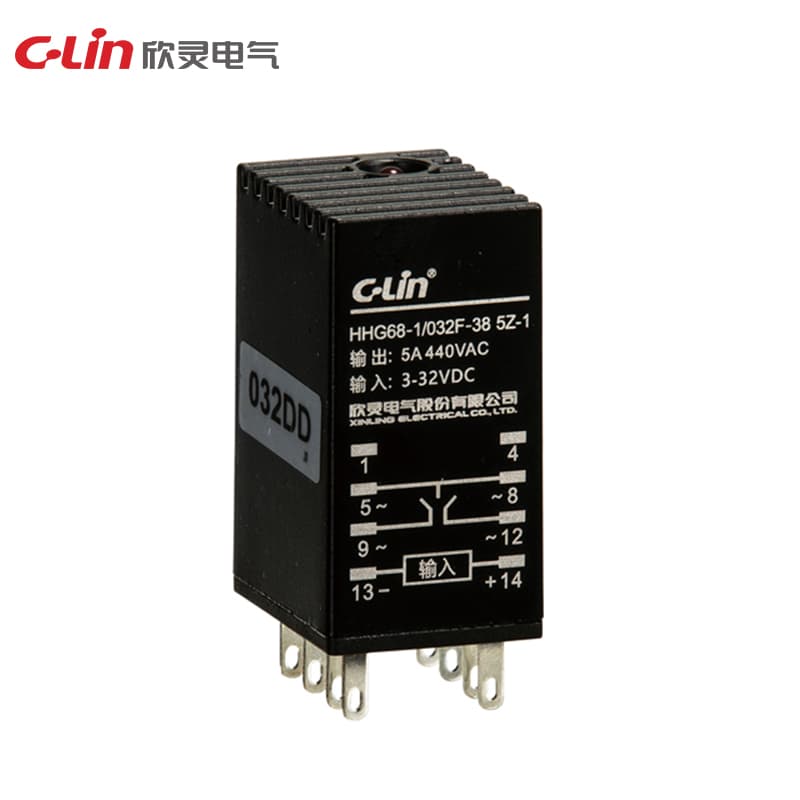

Dual/Single Output Solid-State Relay HHG68 Series

Name: Dual/Single Output Solid-State Relay HHG68 Series
Brand: C-Lin
SKU: HHG68

Model Number: HHG68

Control voltage: 3-32VDC Control current: 5-25mA Load voltage: 22: 24-240VAC, 38: 24-440VAC Load current: 1A, 2A, 3A, 4A, 5A (dual output) aluminum housing/3A, 5A, 8A (single output) aluminum housing On-state voltage drop: AC ≤ 1.5V On-off time: AC ≤ 10ms Off-state leakage current: AC ≤ 10mA Dielectric withstand voltage: ≥1500VAC Ambient temperature: -30~80℃ Installation form: DIP, socket installation Description: Install next to the heat dissipation window with good ventilation

Request Quote

Technical Specifications

Model	HHG68
Dimension	27×21×39.5mm
Instruction	Installed next to well ventilated heat dissipation window
On-off time	AC≤ 10ms
Load current	3A, 5A, 8A (single output) aluminum shell
Load voltage	22: 24-240VAC 38: 24-440VAC 20: 12-200VDC
Ambient temp.	-30~80°C
Control current	5-25mA
Control voltage	3-32VDC
Installation form	Dual line direct plug-in and DIN rail installation
Dielectric strength	≥ 1500VAC
On-state voltage drop	AC ≤ 1.5VAC
Off-state leakage current	AC ≤ 10mA
