Counting Relay HHJ1 Series
C-Lin

Counting Relay HHJ1 Series

Model Number: HHJ1-B

HHJ1HHJ1-BHHJ1-F

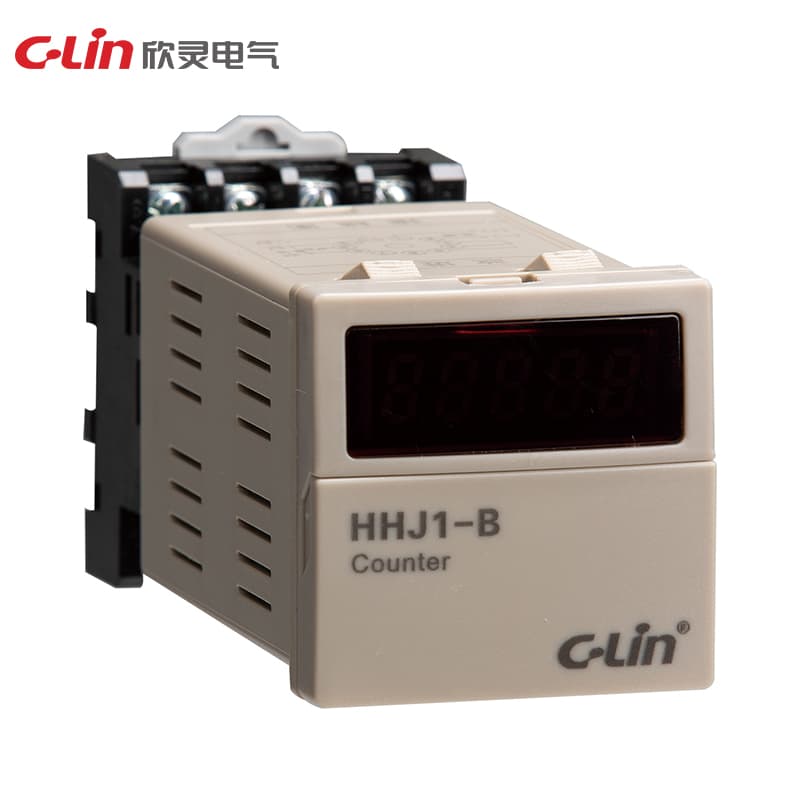

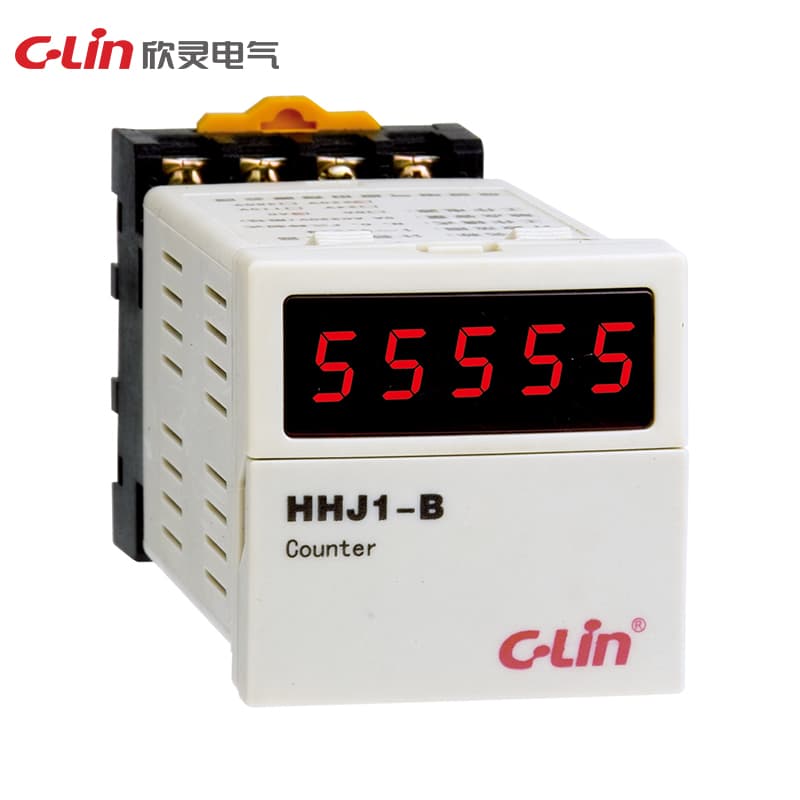

Working power supply: AC/DC24V; AC220V; AC/DC100~240V; AC380V Working mode: positive counting, 4-digit LED display Counting speed: high frequency 100 times/second; low frequency 30 times/second Counting range: (1-9999)×1, ×10, ×100 times Input signal: contact signal, PNP normally open photoelectric/proximity switch Output mode: N, C, F, R, X standard Power failure memory: memory can be set Dimensions: 48×48×115mm Opening size: 45×45mm Installation method: panel type

Request Quote

Technical Specifications

Ui400V
Ith5A
Uimp2.5KV
Ue/UiRated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Altitude≤2000m
Humidity≤90%
Output modeN, C, F, R, X system
InstallationPanel mount, 35mm rail or chassis mounting
SpecificationHHJ1
Counting range1~9999 (x1, x10, x100 magnification)
Blackout memory10 years
Operating powerAC380V, AC/DC100~240V, AC/DC24V 50/60Hz, the permissible voltage fluctuation range (85%~110%) Ue
Contact capacity3A AC250V (resistive)
Counting signalsa) Contact signals: contacts, travelling switches, etc. a) Contact signal: contact, travelling switch, etc.; b)Level signal:Positive pulse level(H:DC4V~30V), minimum counting pulse width>15ms;. c) Sensor signal: photoelectric switch, proximity switch, Hall switch.
Temperature range-5°-40°C
Counting frequencya) Low frequency counting:≤10 times/sec. b)High frequency counting:≤100 times/sec, signal duty cycle is 50%.
