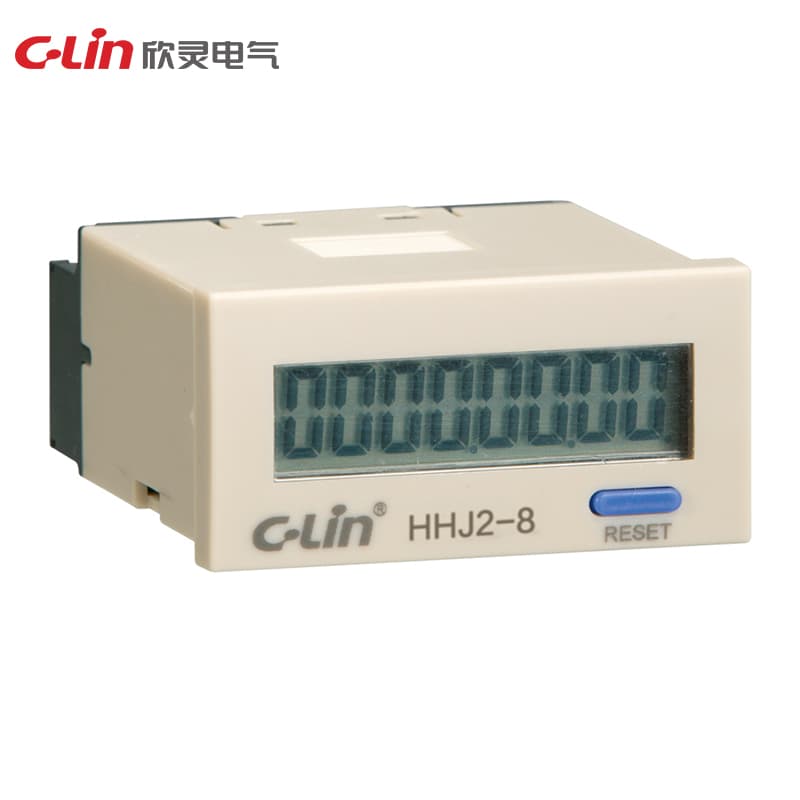

Counting Relay HHJ2 Series

Name: Counting Relay HHJ2 Series
Brand: C-Lin
SKU: HHJ2-8

Model Number: HHJ2-8

Working power supply: self-contained power supply (built-in non-rechargeable battery) Working mode: positive counting, 8-digit LCD display Counting speed: high frequency 1000 times/second; low frequency 30 times/second Counting range: 1-99999999 Input signal: HHJ2-8: contact signal HHJ2-8U: level signal (DC4-30V) Battery life: 1 year Dimensions: 48×22×55mm Opening size: 45×22mm Installation method: panel type Alternative products: H7EC, DHC3J, JDM3

Request Quote

Technical Specifications

Reset mode	Panel button reset and rear terminals ③, ④ reset
Battery life	low-frequency mode can be used for 6 years, high-frequency mode can be used for 1 year
Opening size	45×22.5 mm
Specification	HHJ2-8
Voltage input	DC4.5-35V
Counting range	1~99999999
Counting speed	a) Low speed: below 30 times/sec b) High speed: 1000 times/sec
Operating power	Self-powered (with internal battery)
Ambient humidity	35~85%
No voltage input	a) Maximum resistance of contact on ≤10KΩ b) Maximum resistance of contact disconnection >500KΩ
Ambient temperature	-10 ~ +40 ℃
