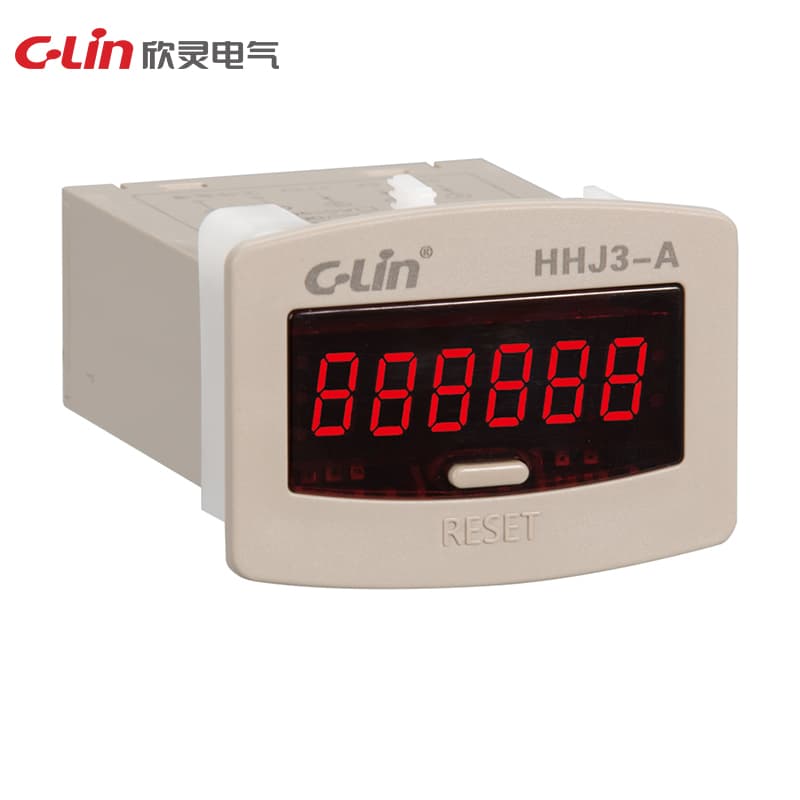

Counting Relay HHJ3 Series
C-Lin

Counting Relay HHJ3 Series

Model Number: HHJ3A

HHJ3HHJ3A

Working power supply: AC/DC24V; AC/DC100~240V Working mode: positive counting, 6-digit LED display Counting speed: 10, 30, 1000 times/second adjustable Counting range: 1-999999 Function description: HHJ3 replaces JDM11-6H Input signal: contact signal (no voltage type); level signal (voltage type DC4~30V needs to be customized) Power failure memory: 10 years Dimensions: 58×42×82mm Opening size: 50×25mm Installation method: panel type Remarks: Only contact or level signal counting is possible. If photoelectri

Request Quote

Technical Specifications

Altitude≤2000m
Reset modePanel button switch to reset
InstallationPanel type
Counting modeAdditive counting
SpecificationHHJ3
Counting range1 ~ 999999
Counting speeda)A—10 :10 times/sec, suitable for no voltage type (switch signal, contact signal). b)A—30: 30 times/sec, applicable to voltage-free type/voltage type (switch signal, contact signal, level signal). c)A-1000: 1000 times/sec, applicable to voltage type (level signal).
Counting Signala) Voltage-free type: suitable for switch and contact signal input. b) Voltage type (to be customised): suitable for level DC4V~30V, AC110V or AC220V voltage signal input.
Operating powerAC/DC100~240V, AC/DC24V 50/60Hz.
Pollution level3 levels
Protection levelIP40
Relative humidity≤90%
Ambient temperature-5℃~+40℃
Memory of power failure10 years
