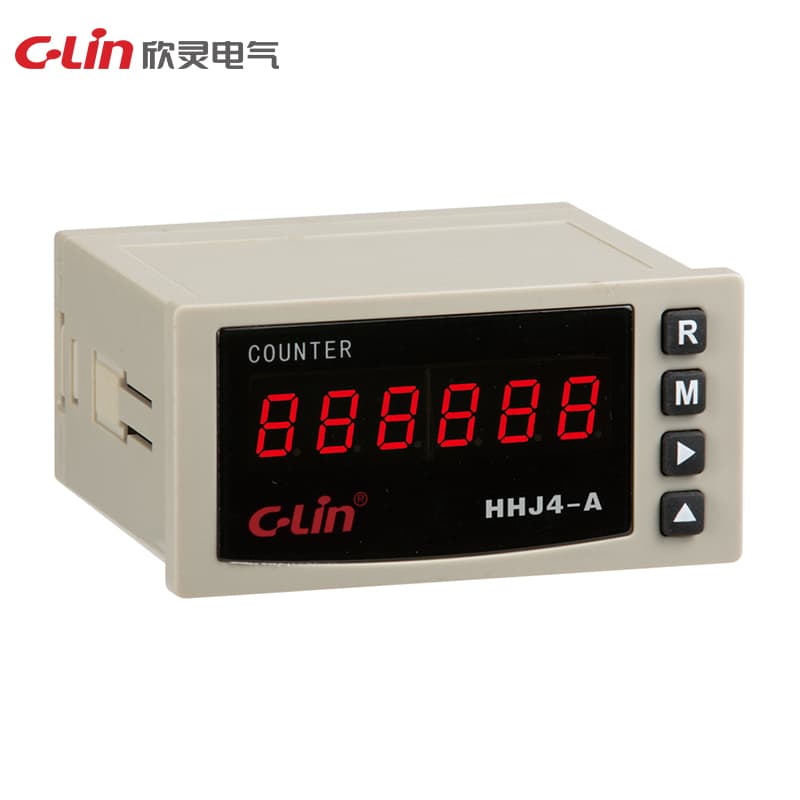

Counting Relay HHJ4 Series

Name: Counting Relay HHJ4 Series
Brand: C-Lin
SKU: HHJ4-A

Model Number: HHJ4-A

Working power supply: DC24V; AC24V, AC220V, AC380V Working mode: forward counting, backward counting Counting speed: high frequency 1000 times/second; low frequency 30 times/second Counting range: (1-999999)×1, ×10, ×100 times Input signal: contact signal, PNP normally open photoelectric/proximity switch Output mode: N, C, F, X, R multi-standard Power failure memory: 10 years Contact form: a group of normally open and normally closed contacts Contact capacity: 3A AC250V (resistive) Dimensions: 96×48×114mm O

Request Quote

Technical Specifications

Ui	400V
Ith	5A
Uimp	2.5KV
Ue/Ui	Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Altitude	≤2000m
Reset mode	Push-button reset or ⑧, four-terminal shorting reset.
Installation	Panel type
Specification	HHJ4-A
Counting range	1~999999(x1, x10, x100 magnification)
Counting Signal	a) Relay contacts, travel switches, etc.; and b) Level signal: pulse level (H: DC4V~30V valid, L: 0~DC2V invalid). c):Sensor signal: photoelectric switch, proximity switch, Hall switch
Operating power	AC380V, 220V, 110V50/60Hz, permissible voltage fluctuation range is (85%~110%) Ue; DC24V.
Contact capacity	3A AC250V (resistive)
Temperature range	-5°-40°C
Counting frequency	a)Low frequency counting: ≤30 times/sec, minimum signal pulse width >15ms;. b) High-frequency counting: ≤1000 times/sec, minimum signal pulse width >0.5ms, signal duty cycle is 50%.
Memory of power failure	10 years
