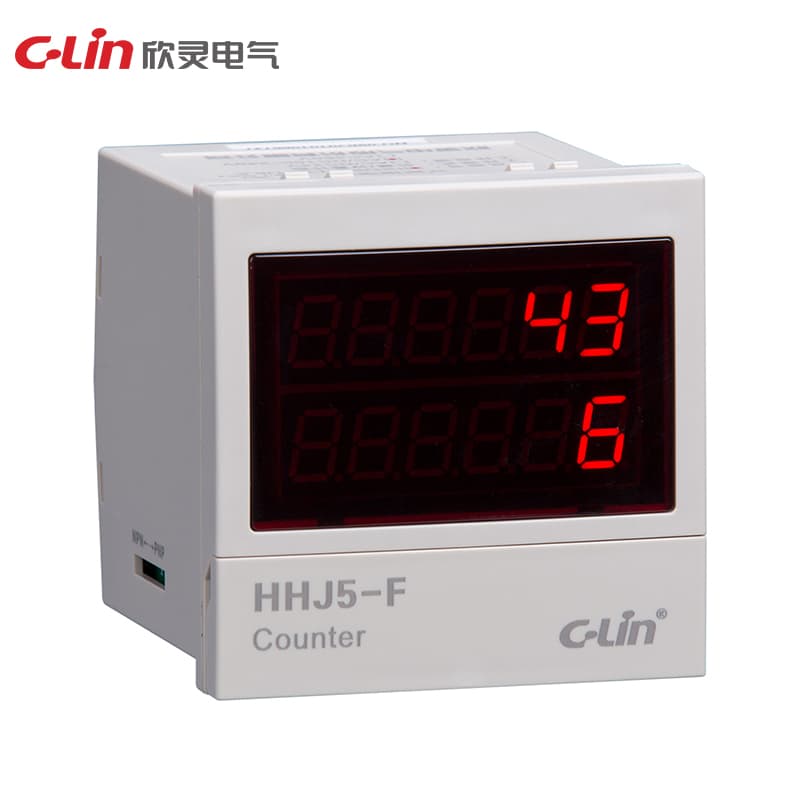

Counting Relay HHJ5 Series

Name: Counting Relay HHJ5 Series
Brand: C-Lin
SKU: HHJ5-F

Model Number: HHJ5-F

Working power supply: AC/DC24V; AC/DC100-240V; AC380V Working mode: positive counting Working mode: automatic reset of components; total cumulative number or number of packages Counting speed: high frequency 1000 times/second; low frequency 30 times/second Counting range: 1-999999 Input signal: contact signal, PNP normally open photoelectric/proximity switch Power failure memory: 10 years Contact form: a group of normally open and normally closed contacts Contact capacity: 3A AC250V (resistive) Dimensions:

Request Quote

Technical Specifications

Ui	400V
Ith	5A
Uimp	2.5KV
Ue/Ui	Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Altitude	≤2000m
Reset mode	a) Total amount: 13, 14 short reset; b) Component: 8, 10 short reset or press panel R key.
Installation	Panel type
Specification	HHJ5-F
Counting range	1~999999
Counting signal	a) Contact signal: relay contacts, travel switches, etc. b)Level signal: pulse level (H:DC4V~30V valid, L:0~DC2V invalid) c) Sensor signal: photoelectric switch, proximity switch, Hall switch.
Operating power	AC380V, 220V, 110V,36V,24V 50/60Hz, permissible voltage fluctuation range is (85%~110%) Ue; DC24V.
Contact capacity	3A AC250V (resistive)
Counting display	a) Total: the sum of component counting value, there are two kinds of counting methods, [packet] and [totalised], stop counting when it reaches the total set value, without relay output, need to be reset manually;. b) Component: display the number of each batch, contact output when reaching the component setting value, automatic reset after t seconds.
Temperature range	-5°-40°C
Counting frequency	a)Low frequency counting: ≤30 times/sec, minimum signal pulse width >15ms;. b) High-frequency counting: ≤1000 times/sec, minimum signal pulse width >0.5ms, signal duty cycle is 50%.
Memory of power failure	10 years
